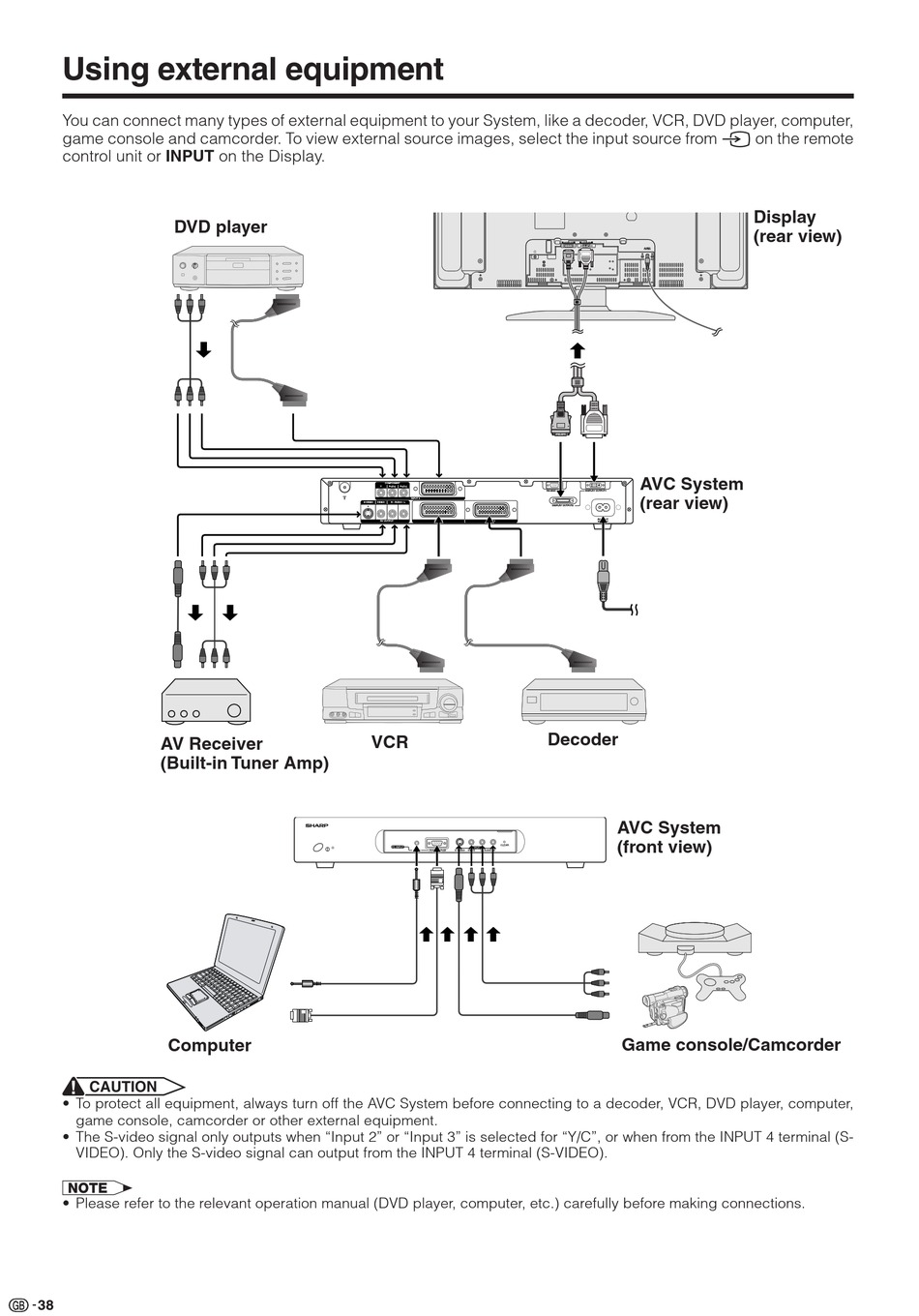

Using external equipment

You can connect many types of external equipment to your System, like a decoder, VCR, DVD player, computer,
game console and camcorder. To view external source images, select the input source from b on the remote
control unit or INPUT on the Display.
DVD player
AV Receiver
(Built-in Tuner Amp)
Computer
L
• To protect all equipment, always turn off the AVC System before connecting to a decoder, VCR, DVD player, computer,
game console, camcorder or other external equipment.
• The S-video signal only outputs when "Input 2" or "Input 3" is selected for "Y/C", or when from the INPUT 4 terminal (S-
VIDEO). Only the S-video signal can output from the INPUT 4 terminal (S-VIDEO).
A
• Please refer to the relevant operation manual (DVD player, computer, etc.) carefully before making connections.
38
COMPONENT
Y P (C ) P (C )
B B R R
INPUT 3
S-VIDEO VIDEO R - AUDIO - L
AV OUTPUT INPUT 2 INPUT 1
VCR
DISPLAY INPUT2 DISPLAY INPUT1
AC INPUT
110V–240V
AVC System
RS-232C DISPLAY OUTPUT1
(rear view)
DISPLAY OUTPUT2
AC INPUT
220–240V
Decoder
AVC System
(front view)
Game console/Camcorder
Display
(rear view)
