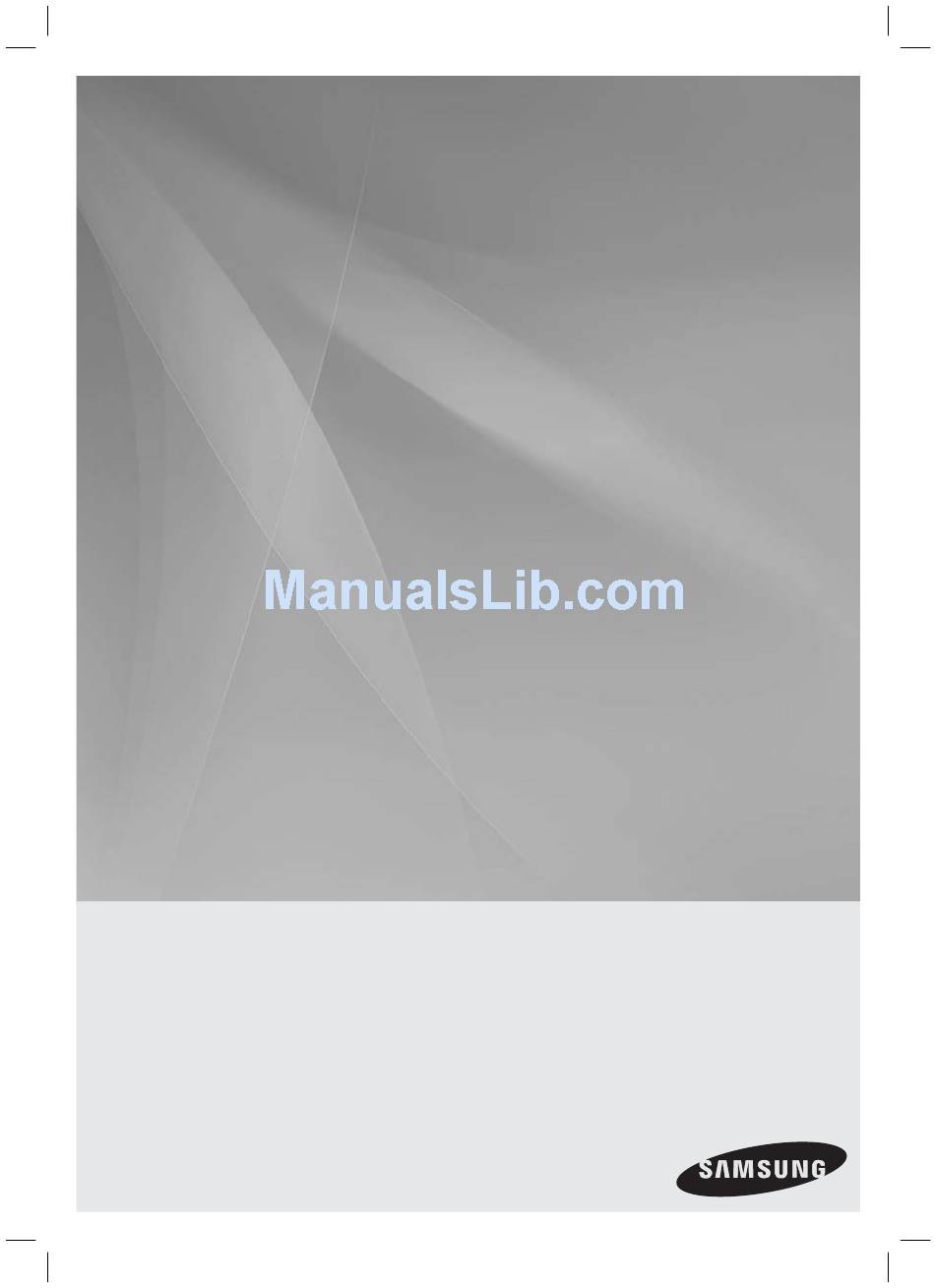

- Page 1 HT-D330 Digital Home Entertainment System user manual Imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register HT-D330-XY_ENG-1228.indd Sec1:1 HT-D330-XY_ENG-1228.indd Sec1:1 2011-12-28 2011-12-28 1:10:06 1:10:06...
-
Page 2: Safety Information
Safety Information Safety Warnings TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol indicates “dangerous voltage” CAUTION : TO PREVENT ELECTRIC This symbol indicates important inside the product that presents a risk of... -
Page 3: Precautions
DSP / EQ MO / ST REPEAT CD RIPPING DIMMER INFO TV CH V MUTE TUNING V DVD RECEIVER SELECT SAMSUNG Video Cable FM Antenna User manual Remote Control/Batteries (AAA size) English HT-D330-XY_ENG-1228.indd 3 HT-D330-XY_ENG-1228.indd 3 2011-12-28 2011-12-28 1:10:19 1:10:19... -
Page 4: Cautions On Handling And Storing Discs
Condensation may form if warm air comes into contact with cold parts inside the product. When condensation © 2011 Samsung Electronics Co., Ltd. All rights forms inside the product, it may not operate correctly. If reserved. this occurs, remove the disc and let the product stand for 1 or 2 hours with the power on. -
Page 5: Table Of Contents
Contents SAFETY INFORMATION BASIC FUNCTIONS Safety Warnings Disc Playback Precautions Audio CD(CD-DA)/MP3/WMA Playback Accessories JPEG File Playback Cautions on Handling and Storing Discs Using the Playback Function Licence Sound Mode Copyright Listening to Radio Copy Protection ADVANCED FUNCTIONS GETTING STARTED USB Function Icons that will be used in manual USB Recording... -
Page 6: Getting Started
Getting Started Icons that will be used in manual Disc Types and Characteristics Make sure to check the following terms before Disc types that can be played reading the user manual. Icon Term Defi nition Disc Types & Recorded Characteristics Mark (Logo) Signals This involves a function... - Page 7 Do not use the following type of discs! DVD±R/±RW, CD-R/RW Discs • Software updates for incompatible formats are not • LD, CD-G, CD-I, CD-ROM, DVD-ROM and supported. DVD-RAM discs cannot be played on this product. (Example : QPEL, GMC, resolutions higher than If such discs are played, a <WRONG DISC 800 x 600 pixels, etc.) FORMAT>...
-
Page 8: Notes On Usb Connection
Getting Started Notes on USB connection Supported fi le formats Supported devices: USB storage media, MP3 Still Format Music Movie Picture player, digital camera File name DivX If a folder or fi le name is longer than 10 File characters, it may not properly display or .MP3 .WMA .WMV... -
Page 9: Description
Description Front Panel 5V 500mA DISC TRAY DISPLAY USB PORT OPEN/CLOSE BUTTON ( STOP BUTTON ( FUNCTION BUTTON ( VOLUME CONTROL BUTTON PLAY/PAUSE BUTTON ( POWER BUTTON ( REMOTE CONTROL SENSOR Rear Panel SPEAKERS OUT COMPONENT OUT FRONT CENTER FRONT FM ANT AUX IN SURROUND... -
Page 10: Remote Control
Do not expose the batteries to heat or fl ame. The remote control can be used up to approximately 7 meters in a straight line. The remote control will work on a Samsung TV. English HT-D330-XY_ENG-1228.indd 10 HT-D330-XY_ENG-1228.indd 10 2011-12-28... -
Page 11: Connections
Connections This section involves various methods of connecting the product to other external components. Before moving or installing the product, be sure to turn off the power and disconnect the power cord. Connecting the Speakers Position of the product Place it on a stand or cabinet shelf, or under the TV stand. -
Page 12: Speaker Components
Connections Connecting the Speakers Speaker Components CENTER FRONT SURROUND SUBWOOFER Connecting The Speakers Press down the terminal tab on the back of the speaker. Insert the black wire into the black terminal (–) and the red wire into the red terminal (+), and then release the tab. -
Page 13: Connecting The Video Out To Your Tv
Connecting the Video Out to your TV Choose one of the two methods for connecting to a TV. METHOD 1 Blue Green COMPONENT OUT METHOD 2 (supplied) FM ANT FM ANT AUX IN AUX IN DIGITAL DIGITAL AUDIO IN AUDIO IN VIDEO OUT METHOD 1 : Component (Progressive Scan) Video If your television is equipped with Component Video inputs, connect a Component video cable(not supplied) -
Page 14: Connecting The Fm Antenna
Connections P.SCAN(PROGRESSIVE SCAN) FUNCTION Unlike regular Interlace Scan, in which two fi elds of picture information alternate to create the entire picture (odd scan lines, then even scan lines), Progressive Scan uses one fi eld of information (all lines displayed in one pass) to create a clear and detailed picture without visible scan lines. -
Page 15: Connecting Audio From External Components
Connecting Audio from External Components SPEAKERS OUT SPEAKERS OUT COMPONENT OUT COMPONENT OUT FRONT CENTER FRONT FM ANT FM ANT AUX IN SURROUND SUBWOOFER SURROUND ONLY ONLY DIGITAL FOR SERVICE FOR SERVICE AUDIO IN SPEAKER IMPEDANCE : 3 SPEAKER IMPEDANCE : 3 VIDEO OUT VIDEO OUT Audio Cable (not supplied) -
Page 16: Setup
Setup Before Starting (Initial Settings) Setting the Setup menu The access step may differ depending on the selected Press the POWER button when it is plugged in menu. The GUI (Graphical User Interface) in this TV for the fi rst time. manual may differ, depending on the fi... -
Page 17: Display
Display Settings Speaker Setting You can confi gure various display options such as Speaker Size ► the TV Aspect, Resolution, etc. Sound Edit Delay Time TV Aspect Test Tone : Off Depending on the type of television you have, you may want to adjust the screen setting. -
Page 18: Drc (Dynamic Range Compression)
Setup Delay Time DRC (Dynamic Range Compression) If the speakers cannot be placed at equal distances from This feature balances the range between the loudest the listening position, you can adjust the delay time of the and quietest sounds. You can use this function to audio signals from the Center and Surround speakers. -
Page 19: Security
Basic Functions a You cannot select OTHERS in the OSD Language Disc Playback menu. Press the OPEN/CLOSE () button. ✎ NOTE Place a disc gently into the tray with the disc's The selected language will only appear if it is label facing up. -
Page 20: Audio Cd(Cd-Da)/Mp3/Wma Playback
Basic Functions JPEG File Playback Audio CD(CD-DA)/MP3/WMA Playback Images captured with a digital camera or camcorder, or JPEG fi les on a PC can be stored on a CD and then played back with this product. Insert a JPEG disc on the disc tray. Track01 Press the ◄►... -
Page 21: Using The Playback Function
Step Motion Play Using the Playback Function Forward/Reverse Search dBAD Press the PAUSE button repeatedly. • The picture moves forward one frame each time Press the buttons for Search Function. the button is pressed during playback. ✎ NOTE 1 ➞ 2 ➞ 3 ➞ 4 ... -
Page 22: Using The Title Menu
Basic Functions Using the Title Menu CD/MP3 Repeat During the CD/ MP3 playback, press the REPEAT button repeatedly to select the repeat mode you want. For DVDs containing multiple titles, you can view the title of each movie. (Repeat Off Repeat Disc Repeat All During playback, press the TITLE Random Repeat Section A-B) button on the remote control. -
Page 23: Displaying Disc Information
Displaying Disc Information TOOLS menu Title( ) : To access the desired title when there is more than one in the disc. For example, if there is more than one movie on a DVD, each movie will be identifi ed as a Title. ... -
Page 24: Sound Mode
Basic Functions ✎ Selecting the Subtitle Language NOTE The Angle function works only with discs on which multiple angles have been recorded. DIMMER Press the TOOLS button. Press the ▲▼ buttons to select SUBTITLE ( You can adjust the brightness of the display on the display. -
Page 25: Listening To Radio
• S/W LEVEL Automatic Tuning : Press the STOP () button to select MANUAL and then press and hold the You can also press the S/W LEVEL button on the TUNING ( ) button to automatically search the remote control and use the ◄ or ► buttons to adjust band. -
Page 26: Advanced Functions
Advanced Functions USB Function USB Recording While playing CD-DA (Compact Disc Digital Audio) Playing Media Files using the using the USB Recording function, you can record the USB Host Feature audio source in the USB memory. Connect the USB device to your product. You can enjoy media fi... -
Page 27: Other Information
Refer to the chart below when this product does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the product, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center. Symptom Check/Remedy I cannot eject the disc. -
Page 28: Language Code List
Other Information Symptom Check/Remedy • The product is not working. • Press and hold the STOP () button on the remote control for longer than (Example: The power goes out or 5 seconds with no disc (reset function). the front panel key doesn't work or a strange noise is heard.) Using the RESET function will erase all stored settings. -
Page 29: Specifi Cations
Center : 0.31 Kg Subwoofer : 3.2 Kg *: Nominal specifi cation - Samsung Electronics Co., Ltd reserves the right to change the specifi cations without notice. - Weight and dimensions are approximate. - Design and specifi cations are subject to change without prior notice. - Page 30 Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Contact Center Contact Center Area Web Site Area Web Site ` North America 0700 Samsung (0700 726 Serbia www.samsung.com...
- Page 31 Code no. AH68-02353Q (01) HT-D330-XY_ENG-1228.indd 31 HT-D330-XY_ENG-1228.indd 31 2011-12-28 2011-12-28 1:10:47 1:10:47...
