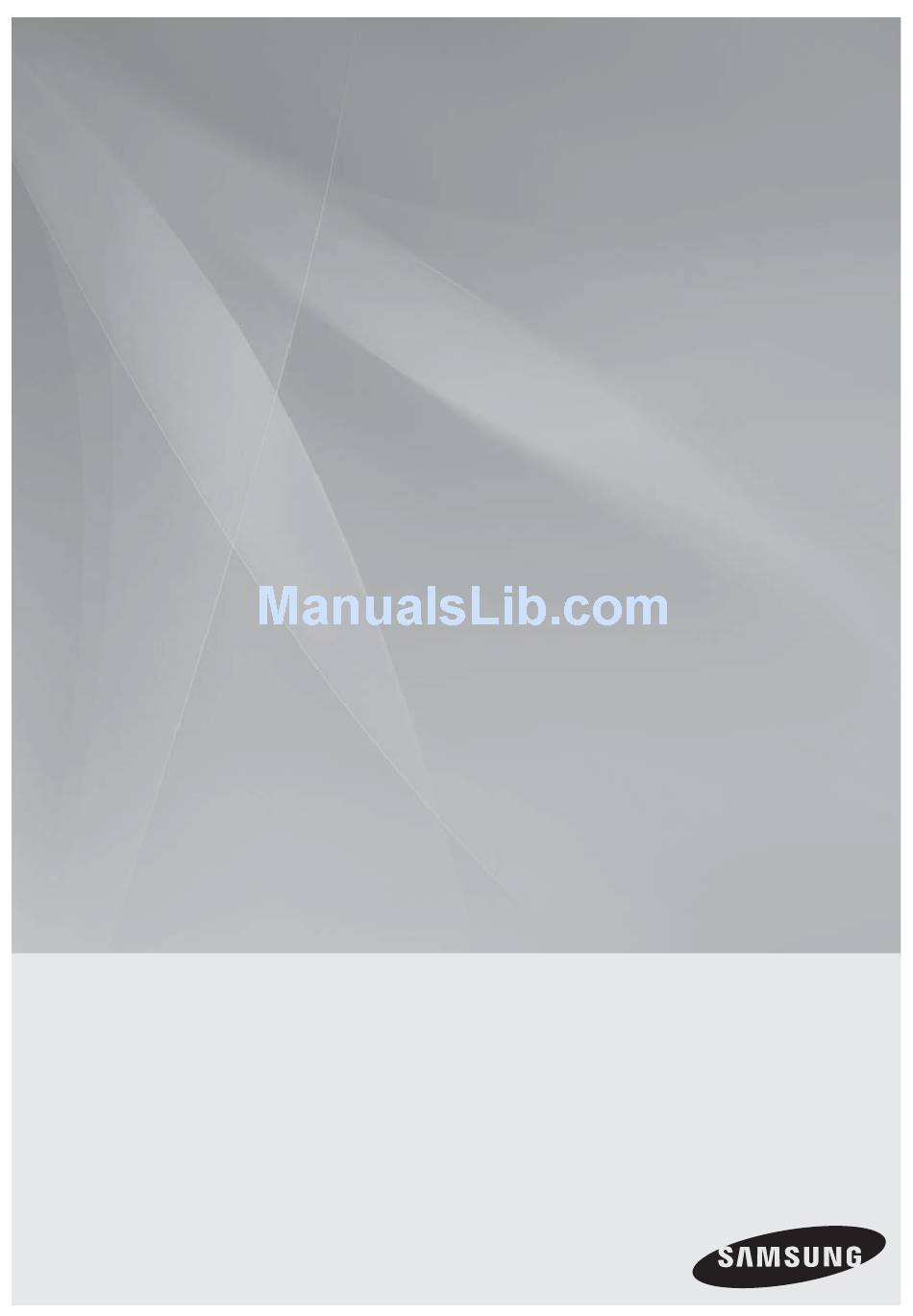

- Page 1 HT-E321 Digital Home Entertainment System user manual Imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register...
-
Page 2: Safety Information
Safety Information Safety Warnings TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol indicates “dangerous voltage” CAUTION : TO PREVENT ELECTRIC This symbol indicates important inside the product that presents a risk of... -
Page 3: Precautions
Precautions • Ensure that the AC power supply in your house complies with the identification sticker located on the back of your product. • Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (7.5~10cm). •... -
Page 4: Cautions On Handling And Storing Discs
Condensation may form if warm air comes into contact with cold parts inside the product. When condensation © 2012 Samsung Electronics Co., Ltd. All rights reserved. forms inside the product, it may not operate correctly. If this occurs, remove the disc and let the product stand Copy Protection for 1 or 2 hours with the power on. -
Page 5: Table Of Contents
Contents Safety Warnings SAFETY INFORMATION Precautions Accessories Cautions on Handling and Storing Discs Licence Copyright Copy Protection Icons that will be used in manual GETTING STARTED Disc Types and Characteristics Description Front Panel Rear Panel Remote control CONNECTIONS Connecting the Speakers Connecting the Video Out to your TV Connecting the FM Antenna Connecting Audio from External Components... - Page 6 Contents BASIC FUNCTIONS Disc Playback Audio CD(CD-DA)/MP3/WMA Playback JPEG File Playback Using the Playback Function Sound Mode Listening to Radio ADVANCED FUNCTIONS USB Function USB Recording Troubleshooting OTHER INFORMATION Language code list Specifications OpenSSL License • Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.
-
Page 7: Getting Started
Getting Started Icons that will be used in manual Disc Types and Characteristics Make sure to check the following terms before Region Code reading the user manual. Icon Term Definition The product and the discs are coded by region. These regional codes must match in order for the disc to play. -
Page 8: Disc Types And Disc Format
Getting Started Do not use the following type of discs! Disc Types and Characteristics • LD, CD-G, CD-I, CD-ROM, DVD-ROM and Disc types that can be played DVD-RAM discs cannot be played on this product. If such discs are played, a <WRONG DISC FORMAT>... -
Page 9: Notes On Usb Connection
DVD±R/±RW, CD-R/RW Discs 1) If a folder or file name is longer than 10 • Software updates for incompatible formats are not supported. characters, it may not properly display or (Example : QPEL, GMC, resolutions higher than operate. 800 x 600 pixels, etc.) 2) A subtitle file bigger than 300KB may not be •... -
Page 10: Description
Getting Started Description Front Panel 5V 500mA DISC TRAY Insert disc here. DISPLAY Displays the playing status, time, etc. Connect here and play files from external USB storage devices such as MP3 players, USB flash memory, etc. USB PORT The USB memory that requires high power (more than 500mA at 5V) may not be supported. -
Page 11: Rear Panel
Rear Panel SPEAKERS OUT VIDEO FRONT FRONT SUBWOOFER FA NET AUX IN FM ANT HDMI OUT (Only For Service) SPEAKER IMPEDANCE : 3 FA NET (Only for Service) Used for the service repair. SPEAKERS OUTPUT CONNECTORS Connect the front speakers and subwoofer. VIDEO OUT JACK Connect your TV's Video Input jack (VIDEO IN) to the VIDEO OUT jack. -
Page 12: Remote Control
Getting Started Remote control Tour of the Remote Control Turn the product on and off. This is mode selection button. FUNCTION To open and close the disc tray. Cut off the sound temporarily. V-SOUND MUTE DSP/EQ Select the desired DSP/EQ audio This gives you the feeling you are mode. -
Page 13: Connections 13 Connecting The Speakers
Connections This section involves various methods of connecting the product to other external components. Before moving or installing the product, be sure to turn off the power and disconnect the power cord. Connecting the Speakers Position of the product Place it on a stand or cabinet shelf, or under the TV stand. -
Page 14: Speaker Components
Connections Speaker Components HT-E350 FRONT SUBWOOFER Connecting the wall mount 1. Prepare screws (not supplied) that are suitable 5 mm for the hole on the back of each speaker. 4 mm See the illustrations below. 10 mm 30 mm 2. Fasten the screws to the wall, then hang the Hold on the back of the speaker speaker on the wall. -
Page 15: Connecting The Video Out To Your Tv
Connecting the Video Out to your TV Choose one of the two methods for connecting to a TV. METHOD2 (supplied) VIDEO AUX IN FM ANT HDMI OUT METHOD1 METHOD 1 : HDMI Connect an HDMI cable (not supplied) from the HDMI OUT jack on the back of the product to the HDMI IN jack on your TV. - Page 16 Anynet+ is a function that enables you to control other Samsung Devices with your Samsung TV's remote control. Anynet + can be used by connecting this product to a SAMSUNG TV using a HDMI Cable. This is only available with SAMSUNG TV's that support Anynet+.
-
Page 17: Connecting The Fm Antenna
Connecting the FM Antenna SPEAKERS OUT VIDEO FRONT FRONT SUBWOOFER FA NET AUX IN FM ANT HDMI OUT (Only For Service) SPEAKER IMPEDANCE : 3 FM Antenna (supplied) 1. Connect the FM antenna supplied to the FM Antenna jack. 2. Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a wall or other rigid surface. -
Page 18: Setup 18 Before Starting (Initial Settings)
Setup Before Starting (Initial Settings) Setting the Setup menu The access step may differ depending on the selected 1. Press the POWER button when it is plugged in menu. The GUI (Graphical User Interface) in this TV for the first time. manual may differ, depending on the firmware version. -
Page 19: Display
• TV : Select if connected to a TV via HDMI. (Samsung products only) BD Wise is Samsung's latest inter-connectivity Video Out Signal feature. When you connect Samsung products with BD-Wise to each other via HDMI, the optimum Different countries apply different TV standard. resolution will be set automatically. -
Page 20: Audio
Setup Audio Settings User EQ · DRC (Dynamic Range Compression) · · · · · This feature balances the range between the loudest · · · · and quietest sounds. You can use this function to · · enjoy Dolby Digital sound when watching movies at 250Hz 600Hz 1kHz... -
Page 21: Divx(R) Registration
Parental Rating System Select the rating level you want to set. DivX(R) Registration A larger number indicates that the program is intended for adult use only. For example, if you select up to Level View DivX(R) VOD Registration Code to purchase 6, discs that contain Level 7, 8 will not play. -
Page 22: Basic Functions
Basic Functions Audio CD(CD-DA)/MP3/WMA Playback Disc Playback 1. Press the OPEN/CLOSE () button. 2. Place a disc gently into the tray with the disc's label facing up. 3. Press the OPEN/CLOSE () button to close Track01 the disc tray. 1/17 ✎... -
Page 23: Jpeg File Playback
JPEG File Playback Using the Playback Function Images captured with a digital camera or camcorder, or Forward/Reverse Search JPEG files on a PC can be stored on a CD and then played back with this product. dBAD 1. Insert a JPEG disc on the disc tray. 2. -
Page 24: Using The Title Menu
Basic Functions Step Motion Play Using the Title Menu For DVDs containing multiple titles, you can view the Press the PAUSE button repeatedly. title of each movie. • The picture moves forward one frame each time TITLE MENU the button is pressed during playback. During playback, press the TITLE ✎... -
Page 25: Displaying Disc Information
CD/MP3 Repeat Displaying Disc Information 1. During the CD/ MP3 playback, press the REPEAT button repeatedly to select the repeat mode you want. 2/20 (Repeat Off Repeat Track Repeat All 0:05:21 Random Repeat Section A-B) 1/1 EN 5.1CH 1/1 EN Change Select (Repeat Off... -
Page 26: Selecting The Audio Language
Basic Functions 3. Press the ◄► buttons to select the desired TOOLS menu subtitle language. Title( ) : To access the desired title • Depending on the languages on a DVD disc, when there is more than one in the disc. a different subtitle language is selected each For example, if there is more than one time the button is pressed. -
Page 27: Sound Mode
DIMMER GIGA You can adjust the brightness of the display on the The GIGA Sound Function amplifies bass and improves bass main unit. twice as much for you to appreciate powerful real sound. The GIGA Sound feature will be applied only to the subwoofer. -
Page 28: Listening To Radio
Basic Functions DSP (Digital Signal Processor)/EQ Listening to Radio Using buttons on the Remote Control • DSP (Digital Signal Processor) : DSP modes have been designed to simulate different acoustic 1. Press the FUNCTION button to select FM. environments. 2. Tune in to the desired station. •... -
Page 29: Advanced Functions
USB Function USB Recording While playing CD-DA (Compact Disc Digital Audio) Playing Media Files using the using the USB Recording function or listening to the FM USB Host Feature radio or receiving audio source from an external device, you can record the audio source in the USB memory. Ex) USB recording of CD-DA audio contents You can enjoy media files such as pictures, movies and music saved on an MP3 player, USB memory... -
Page 30: Other Information
Refer to the chart below when this product does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the product, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Centre. Symptom Check/Remedy I cannot eject the disc. -
Page 31: Language Code List
Symptom Check/Remedy • The product is not working. • Press and hold the STOP () button on the remote control for longer than (Example: The power goes out or 5 seconds with no disc (reset function). the front panel key doesn't work or a strange noise is heard.) Using the RESET function will erase all stored settings. -
Page 32: Specifications
Front: 0.3 Kg, Subwoofer : 2.89 Kg Weights *: Nominal specification - Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. - Weight and dimensions are approximate. - Design and specifications are subject to change without prior notice. -
Page 33: Openssl License
OpenSSL License The OpenSSL toolkit stays under a dual license, i.e. both the conditions of the OpenSSL License and the original SSLeay license apply to the toolkit. See below for the actual license texts. Actually both licenses are BSD-style Open Source licenses. In case of any license issues related to OpenSSL please contact openssl-core@openssl.org. - Page 34 OpenSSL License Copyright remains Eric Young's, and as such any Copyright notices in the code are not to be removed. If this package is used in a product, Eric Young should be given attribution as the author of the parts of the library used.
- Page 35 Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Contact Centre Contact Centre Area Web Site Area Web Site ` North America 0700 Samsung (0700 726 Serbia www.samsung.com...
- Page 36 Correct disposal of batteries in this product (Applicable in the European Union and other European countries with separate battery return systems.) This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66.
