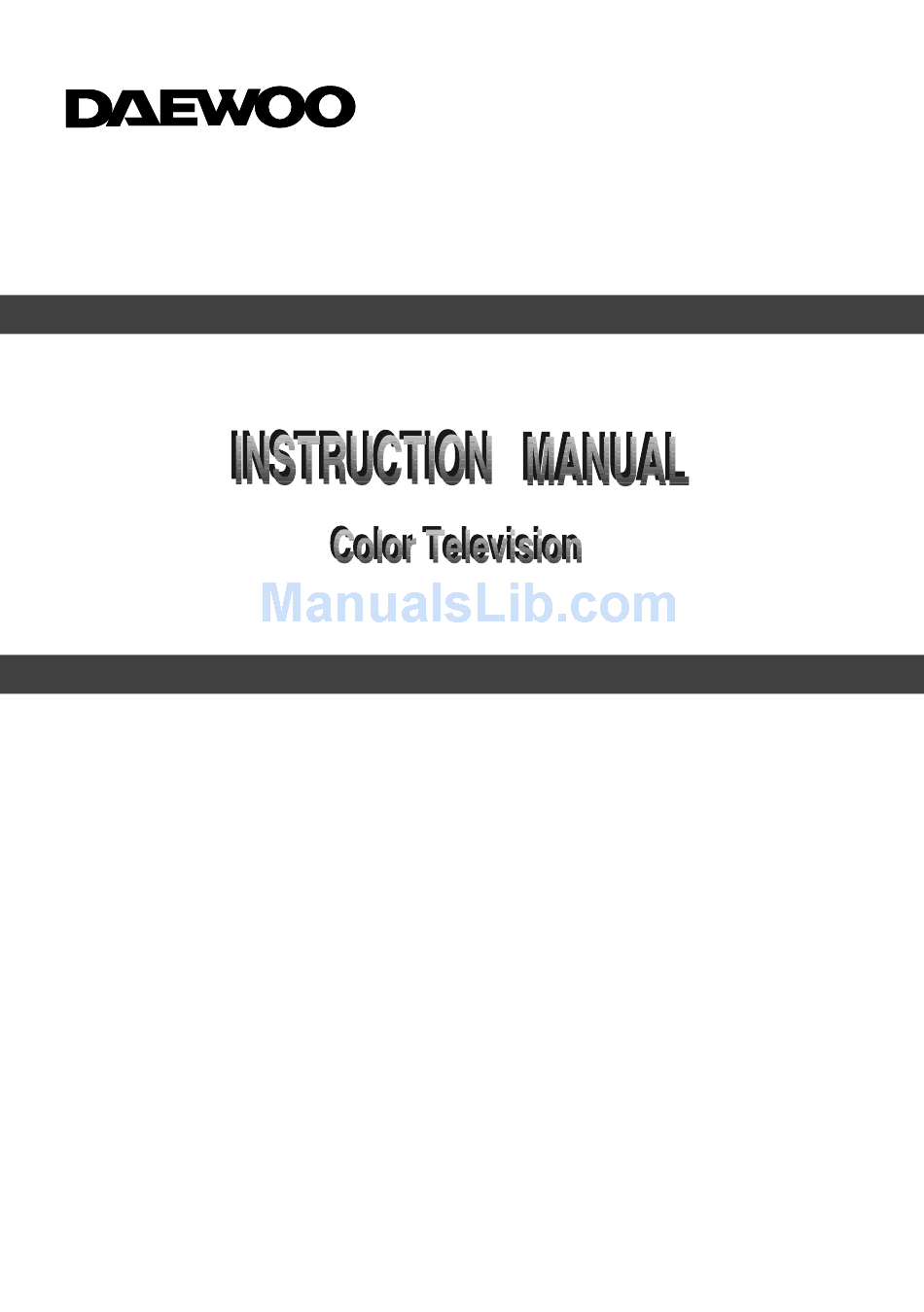

- Page 1 MODEL NO. MODEL NO. DTQ - 14Q1 / 20Q1 / 14Q2 / 20Q2 / 14Q1FS / 20Q1FS DTQ - 14Q1 / 20Q1 / 14Q2 / 20Q2 / 14Q1FS / 20Q1FS 14Q3 / 20Q3 / 14T1 / 20T1 / 14T1AS 14Q3 / 20Q3 / 14T1 / 20T1 / 14T1AS 14T2 / 20T2 / 14T3 / 20T3 / 21T1PS 14T2 / 20T2 / 14T3 / 20T3 / 21T1PS...
-
Page 2: Note To Catv System Installer
CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”... -
Page 3: Table Of Contents
CONTENTS Table of Contents Important Safeguards Chapter 1: Overview of Your Equipment Your TV's Front Panel Your TV's Back Panel Your Remote Control Installing your remote control batteries Notes Chapter 2: Connecting an Antenna or Cable to Your TV Connecting an Antenna Connecting a Cable System Connecting Other Pieces of Equipment Safety Note... -
Page 4: Important Safeguards
S A F E T Y IMPORTANT SAFEGUARDS PLEASE READ ALL THESE INSTRUCTIONS REGARDING YOUR TELEVISION EQUIP- MENT AND RETAIN FOR FUTURE REFERENCE. FOLLOW ALL WARNINGS AND INSTRUCTIONS MARKED ON THE TV RECEIVER. 1 Read all of these instructions. 7 Slots and openings in the cabinet and the back or bottom are provided for ventilation 2 Save these instructions for later use. - Page 5 13 An outside antenna system should not be (f) When the television equipment exhibits located in the vicinity of overhead power a distinct change in performance - this lines or other electric light or power cir- indicates a need for service. cuits, or where it can fall into such power 18 When replacement parts are required, be lines or circuits.
-
Page 6: Chapter 1: Overview Of Your Equipment
C H A P T E R Overview of Your Equipment Your TV comes with a remote control. The section below summarizes the buttons, controls, and terminals that you will use with your TV. Your TV's Front Panel 1 POWER Use this button to turn your TV on or off. -
Page 7: Your Tv's Back Panel
Your TV’s Back Panel 1 Antenna terminal (ANT) Use this terminal to attach an antenna or cable system to your TV. 2 VIDEO IN This terminal allows the TV to receive a video signal from another component, such as a VCR. 3 AUDIO IN This terminal allows the TV to receive an audio signal from another component, such as a VCR. -
Page 8: Your Remote Control
Your Remote Control 1 POWER Use this button to turn your TV on or off. 2 WCHV Use these buttons to change channels on your TV, or select items in the menu system. 3 CVOLB Use these buttons to change your TV's volume, to activate selections in the menu system, or to change audio and video settings. -
Page 9: Installing Your Remote Control Batteries
Installing your remote control batteries 1 Open the battery compartment on the back of the remote control. 2 Install two AAA-size batteries (not included) as shown. Make sure the “+” and “-” terminals are oriented correctly. 3 Replace the cover. Notes Do not mix different types of batteries, or mix an old and a new battery. -
Page 10: Chapter 2: Connecting An Antenna Or Cable To Your Tv
C H A P T E R Connecting an Antenna or Cable to Your TV Your TV will provide you with the best performance if you connect it to an external antenna or cable system. Follow the directions below make this connection. Please note that you will normally only have to make one of the connections shown below, not all of them. -
Page 11: Connecting A Cable System
Antennas with two sets of leads You might have two sets of leads from your antenna system, especially if you have one antenna for VHF signals and one antenna for UHF signals. If your antenna system has both a coaxial lead and twin 300-ohm leads, you must obtain a combiner (available at your local electronics store). -
Page 12: Connecting Other Pieces Of Equipment
If your cable system requires you to use a converter box for all channels, con- nect the incoming cable to the IN terminal on the converter box. Connect another cable between the OUT terminal on the converter box and the antenna terminal on the TV. -
Page 13: Chapter 3: Operating Your Tv
C H A P T E R Operating Your TV Once you have connected your TV to an antenna or cable system, plugged the TV in, and put batteries in the remote, you are ready to use the TV. The first thing you should do is program your TV so it memorizes all of the available channels. - Page 14 Auto Prog. Auto Prog. Source Source Cable Auto Program Auto Program L Prev WV Select CB Adjust L Prev WV Select CB Adjust Auto Prog. Program Source Auto Program CB To Program L Prev WV Select CB Adjust L Stop Chapter 3 : Operating Your TV...
-
Page 15: Changing Channels
Changing Channels You can change channels in three ways: 1 The buttons will take you through all memorized chan- nels, one by one. The buttons will not access chan- nels that have not been programmed into the TV's memory. For more information about programming channels into memo- ry, see the section “Programming your TV's Channel Memory,”... -
Page 16: Erasing A Channel From Memory
Erasing a channel from memory 1 Tune to the channel you want to erase. 2 Press the ADD/ERA button on the remote control. The channel will turn from white to red to show it has been erased. Changing the TV's channel memory with the menus You can also use the menu system to add or erase channels from memory: 1 Use the number buttons to tune to the channel, then press the MENU button. -
Page 17: Changing The Tv's Input
Changing the TV’s Input Normally, your TV displays the signal coming through the antenna terminal. However, if you’ve connected another component to your TV (such as a VCR) using the Audio/Video Inputs, you will want to be able to view the signal from that component. To do this, you will need to switch from the “TV”... -
Page 18: Adjusting Video Settings
Adjusting Video Settings You may wish to adjust the video settings (e. g. contrast or color) to obtain the most pleasing picture. To do so, follow these directions: 1 With the TV turned on, press the MENU button. 2 Use the buttons to select Video. -
Page 19: Returning To The Factory Settings
Returning to the factory settings If you would like to return to the original video settings, as they were calibrated at the factory, follow these steps : Follow steps 1-3 in “Adjusting Video Settings” on the previous page. Use the WCHV buttons to select Picture Pref. Press the CVOLB buttons to set to Preset and Custom. -
Page 20: Descriptions Of Video Settings
Descriptions of video settings The contrast setting controls the relation between the light and black areas of the screen. If the light areas are too bright and are losing details, adjust the contrast towards the “-” position; if the picture is gray and lacks contrast, adjust the contrast towards the “+”... -
Page 21: Chapter 4: Using Timer Functions
C H A P T E R Using Timer Functions Your TV has a built in-clock, and you can set the TV to turn on and off at times that you select. You can also set your TV to turn off after counting down a certain amount of time. -
Page 22: Setting The Clock
Setting the Clock 1 Follow steps 1-3 in “Accessing the Timer Menu,” above. 2 Press buttons to select Clock. 3 Press the VOL button to set the hours (including AM/PM); press the VOL button to set the minutes. If you hold down either VOL button, the corresponding numbers will change more quickly. -
Page 23: Setting The On Timer
Setting the On Timer If you enter a time in the On Time setting, your TV will automatically turn on at that time. Follow these instructions to set the On Time: 1 Follow steps 1-3 in “Accessing the Timer Menu” on the previous page. 2 Use the buttons to select On Time. -
Page 24: Setting The Off Timer
Setting the Off Timer If you enter a time in the Off Time setting, your TV will automatically turn off at that time. Follow these instructions to set the Off Time: 1 Follow steps 1-3 in “Accessing the Timer Menu” on the previous page. 2 Use the buttons to select Off Time. -
Page 25: Setting The Sleep Timer
Setting the Sleep Timer The sleep timer allows you to set an amount of time from 15 minutes to 4 hours; the TV will count down the amount of time you set, then turn itself off. To set the sleep timer: 1 Follow steps 1-3 in “Accessing the Timer Menu.”... -
Page 26: Chapter 5 : Additional Features
C H A P T E R Additional Features This section contains descriptions of the more advanced features of your TV. Changing the Language of the On-screen Menus You can choose to display the on-screen menus in English, Spanish, or French. To change the on-screen language: 1 With the TV turned on, press the MENU button. -
Page 27: About Captions
4 To turn captioning on, use the CVOLB buttons to select captions (Caption 1, Caption 2). At the time these instructions were written, only Caption is normally available, but feel free to try other selections. 5 Wait 10 seconds, or press the MENU button twice to return to normal TV viewing. Your setting will remain intact until you change it. -
Page 28: Changing The Tv's Favorite Channel Memory With The Menus
Setup Setup Video Auto Program Edit Program Timer Favorite Ch Language Captions Power Restore Input L Prev WV Select CB Adjust L Prev WV Move CB Select Changing the TV’s favorite channel memory with the menus. You can also use the menu system to be On or Off favorite channels from memory. 1 With the TV turned on, press the MENU button. -
Page 29: Chapter 6 : Troubleshooting
Your Daewoo television is designed to give you trouble-free performance for many years. If you have a problem with your TV, try the solutions listed below. If the suggestions listed below do not solve your problem, contact your Daewoo dealer or an authorized Daewoo service center. -
Page 30: Warranty
