Electrical Systems (For 14.5 Hp Briggs) - Snapper 280922B Parts Manual

R. E. RIDER SERIES 22
ITEM PART NO. DESCRIPTION
1 6-0753 KIT, 12V Dry Charge Battery
2 1-8817 SOLENOID
3 2-2788 HARNESS, Starter Wiring (Briggs)
4 7-4406 HARNESS, Ignition Wiring (Briggs)
5 1-6168 HOLDER, Fuse (Includes Fuse)
-- 1-6169
6 2-8606 INTERLOCK Module (Briggs)
7 2-8386 HARNESS, (Deck Interlock Wiring)
8 1-8524 SWITCH, Deck Interlock (NO)
9 1-2444 COVER, Battery Cable
10 1-9326 CABLE, Positive, 17" long (Red)
11 2-6343 SWITCH, Ignition-Afterfire Solenoid
12 9-0880 WASHER, 5/8" Internal Tooth Lock
13 1-5438 NUT, 5/8-32 Hex
14 1-1138 KEY, Switch (2)
15 9-0539 SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap (3)
16 2-2886 SWITCH, Operator Presence Control (OPC) Traction (NC/NO)
17 9-1576 NUT, 1/4-20 Hex, Grade 5 or B (4)
18 9-0053 WASHER, 1/4" Internal Tooth Lock (2)
19 2-7172 SCREW, 1/4-20 x 5/8" Hex Head Cap, Grade 5 (2)
20 2-8027 CABLE, Negative (15")
21 2-8675 HARNESS, Operator Presence Control Wire
22 9-1576 NUT, 1/4-20 Hex, Grade 5 or B
23 1-2080 TIE, 7" Long Cable (2)
24 9-0372 NUT, 1/4-20 Hex Center Lock, Grade 5 or B (2)
25 1-4451 TIE, 2" Long Cable
26 1-2485 RETAINER, 1/4" Bolt (2)
27 2-9211 SWITCH, Seat (NC)

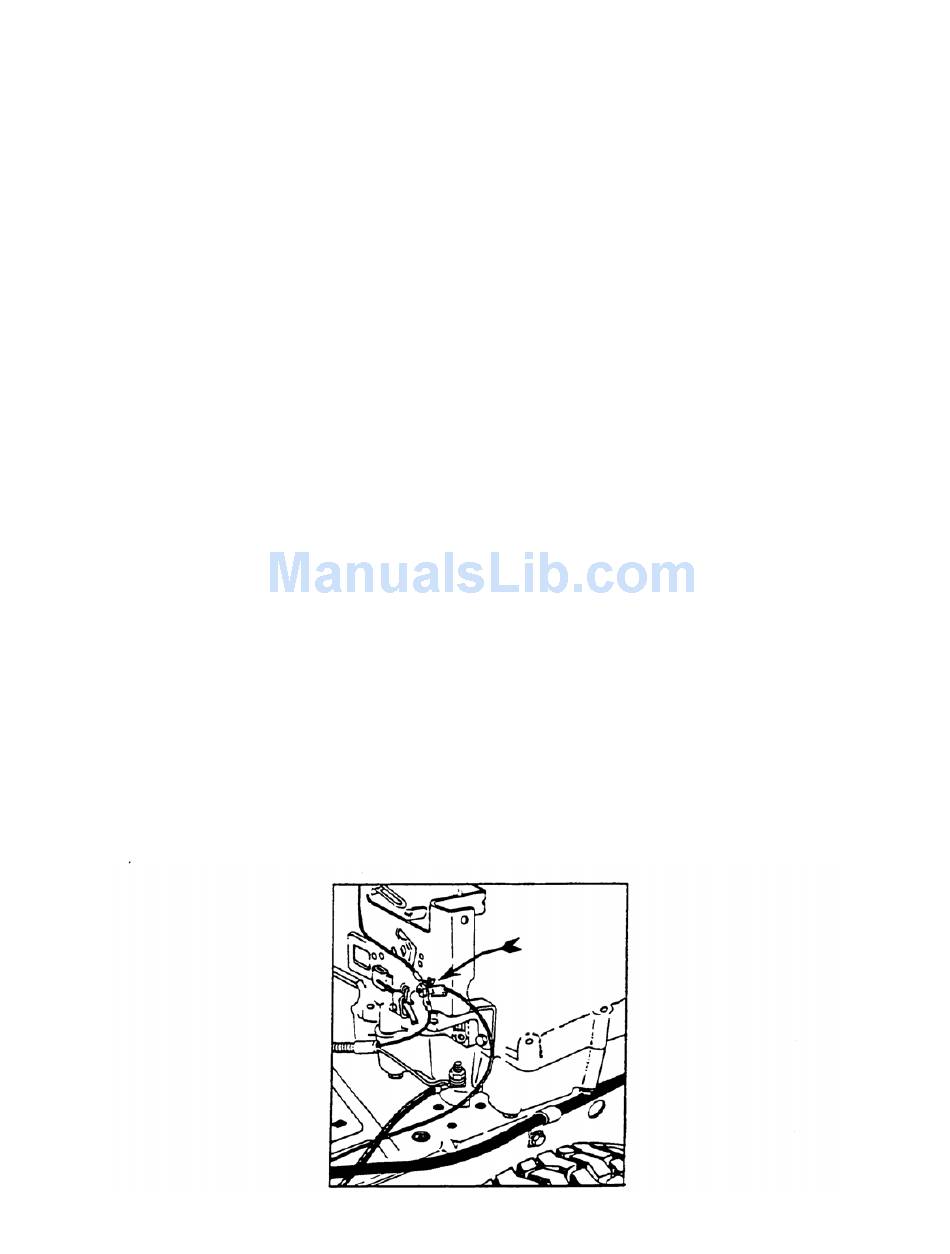

FUSE (10 AMP)
MAGNETO
SHORTING
BLOCK
35
ELECTRICAL SYSTEMS
(For 14.5 HP BRIGGS)
MANUAL No. 06128
