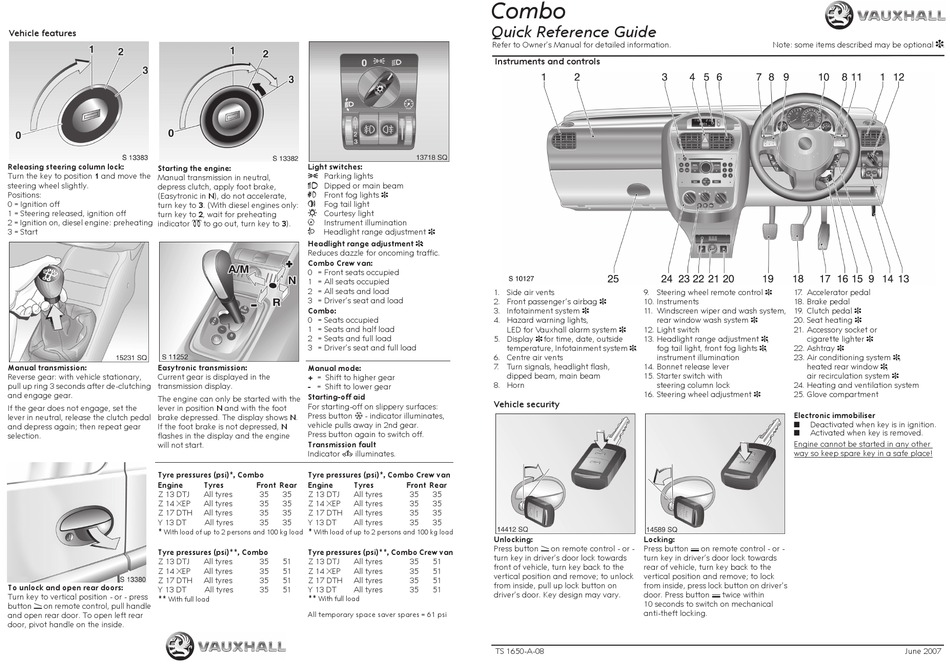

Vauxhall Combo Quick Reference Manual

Vehicle features
Releasing steering column lock:
Starting the engine:
Turn the key to position 1 and move the
Manual transmission in neutral,
steering wheel slightly.
depress clutch, apply foot brake,
Positions:
(Easytronic in N), do not accelerate,
0 = Ignition off
turn key to 3. (With diesel engines only:
1 = Steering released, ignition off
turn key to 2, wait for preheating
2 = Ignition on, diesel engine: preheating
indicator ! to go out, turn key to 3).
3 = Start
Manual transmission: Easytronic transmission:
Reverse gear: with vehicle stationary, Current gear is displayed in the
pull up ring 3 seconds after de-clutching transmission display.
and engage gear.
The engine can only be started with the
If the gear does not engage, set the lever in position N and with the foot
lever in neutral, release the clutch pedal brake depressed. The display shows N.
and depress again; then repeat gear If the foot brake is not depressed, N
selection. flashes in the display and the engine
will not start.
Tyre pressures (psi)*, Combo
Engine
Z 13 DTJ
Z 14 XEP
Z 17 DTH
Y 13 DT
*
With load of up to 2 persons and 100 kg load
Tyre pressures (psi)**, Combo
Z 13 DTJ
Z 14 XEP
Z 17 DTH
To unlock and open rear doors:
Y 13 DT
Turn key to vertical position - or - press
**
With full load
button q on remote control, pull handle
and open rear door. To open left rear
door, pivot handle on the inside.
Light switches:
8 Parking lights
9 Dipped or main beam
> Front fog lights 3
r Fog tail light
0 Courtesy light
k Instrument illumination
? Headlight range adjustment 3
Headlight range adjustment 3:
Reduces dazzle for oncoming traffic.
Combo Crew van:
0 = Front seats occupied
1 = All seats occupied
2 = All seats and load
3 = Driver's seat and load
Combo:
0 = Seats occupied
1 = Seats and half load
2 = Seats and full load
3 = Driver's seat and full load
Manual mode:
+ = Shift to higher gear
- = Shift to lower gear
Starting-off aid
For starting-off on slippery surfaces:
Press button T - indicator illuminates,
vehicle pulls away in 2nd gear.
Press button again to switch off.
Transmission fault
Indicator A illuminates.
Tyre pressures (psi)*, Combo Crew van
Tyres Front Rear Engine Tyres
All tyres 35 35 Z 13 DTJ All tyres
All tyres 35 35 Z 14 XEP All tyres
All tyres 35 35 Z 17 DTH All tyres
All tyres 35 35 Y 13 DT All tyres
*
With load of up to 2 persons and 100 kg load
Tyre pressures (psi)**, Combo Crew van
All tyres 35 51 Z 13 DTJ All tyres
All tyres 35 51 Z 14 XEP All tyres
All tyres 35 51 Z 17 DTH All tyres
All tyres 35 51 Y 13 DT All tyres
**
With full load
All temporary space saver spares = 61 psi
Combo

Quick Reference Guide

Refer to Owner's Manual for detailed information.
Instruments and controls
1. Side air vents
2. Front passenger's airbag 3
3. Infotainment system 3
4. Hazard warning lights,
LED for Vauxhall alarm system 3
5. Display 3 for time, date, outside
temperature, Infotainment system 3.
6. Centre air vents
7. Turn signals, headlight flash,
dipped beam, main beam
8. Horn
Vehicle security
Front Rear
35 35
35 35
35 35
35 35
Unlocking:
Press button q on remote control - or -
turn key in driver's door lock towards
35 51
front of vehicle, turn key back to the
35 51
vertical position and remove; to unlock
35 51
from inside, pull up lock button on
35 51
driver's door. Key design may vary.
TS 1650-A-08
Note: some items described may be optional
9. Steering wheel remote control 3
17. Accelerator pedal
10. Instruments 18. Brake pedal
11. Windscreen wiper and wash system, 19. Clutch pedal 3
rear window wash system 3 20. Seat heating 3
12. Light switch 21. Accessory socket or
13. Headlight range adjustment 3, cigarette lighter 3
fog tail light, front fog lights 3, 22. Ashtray 3
instrument illumination 23. Air conditioning system 3,
14. Bonnet release lever heated rear window 3,
15. Starter switch with air recirculation system 3
steering column lock 24. Heating and ventilation system
16. Steering wheel adjustment 3 25. Glove compartment
Electronic immobiliser
z Deactivated when key is in ignition.
z Activated when key is removed.
Engine cannot be started in any other
way so keep spare key in a safe place!
Locking:
Press button p on remote control - or -
turn key in driver's door lock towards
rear of vehicle, turn key back to the
vertical position and remove; to lock
from inside, press lock button on driver's
door. Press button p twice within
10 seconds to switch on mechanical
anti-theft locking.
3
.
June 2007
