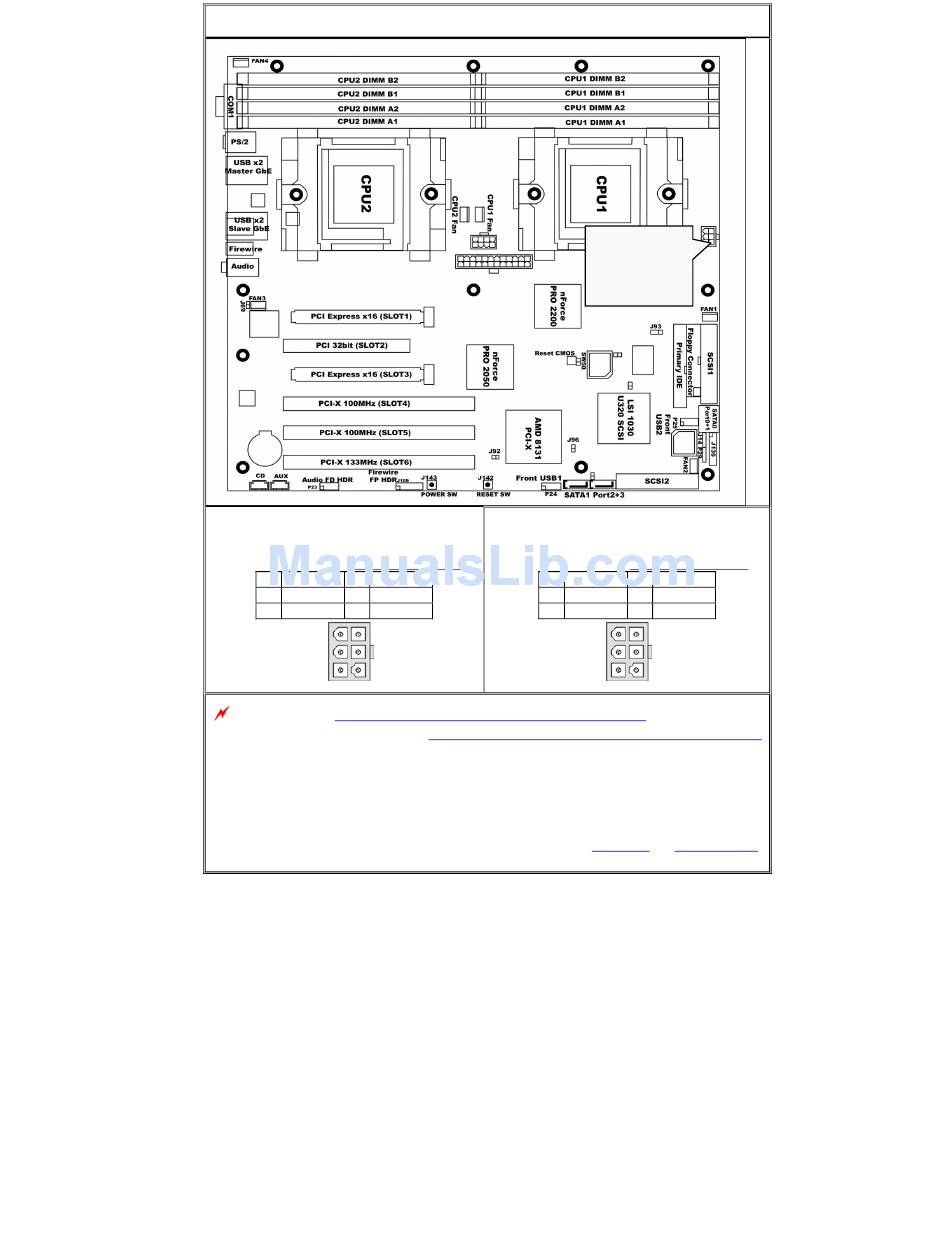

TYAN Thunder K8WE S2895 Manual Addendum

Tyan Thunder K8WE S2895 Manual Addendum
6-pin SSI EEB 3.51 Workstation Power
Connector
For more information go to http://www.ssiforum.org
1 3.3VDC 6 GND
2 3.3VDC 5 GND
3 +12V2 4 +12V2
NOTE:
The 6-pin SSI EEB Workstation Power Connector
NOT COMPATIBLE with the
on some PSU (Power Supply Unit). Connecting the PCI-Ex 6-pin power to the
motherboard WILL DAMAGE the Motherboard, PSU, and/or other components.
After further examination, Tyan has determined that the 6-pin power connector on
the S2895 is unnecessary. The 6-pin power connector on the S2895 will be removed
on future production of S2895 motherboard in order to minimize risk.
If you are unsure if your PSU 6-pin power connector is
DO NOT connect it to the motherboard.
TYAN THUNDER K8WE S2895 Manual Addendum version 1.00
© 2004-2005 Tyan Computer Corporation
6-Pin SSI EEB
Workstation
Connector
6-pin PCI Express x16 Graphics 150W-
ATX Power Connector
For more information go to
1 +12V
2 +12V
3 +12V
6-pin PCI-Express x16 Graphics Power Connector
SSI spec
D1700-100
Power
http://www.pcisig.com
6 GND
5 SENSE
4 GND
on the S2895 is
or PCI Ex spec,
