Wells F-886 Features And Specifications

W B
E L L S L O O M F I E L D
B - F
UILT IN RYER

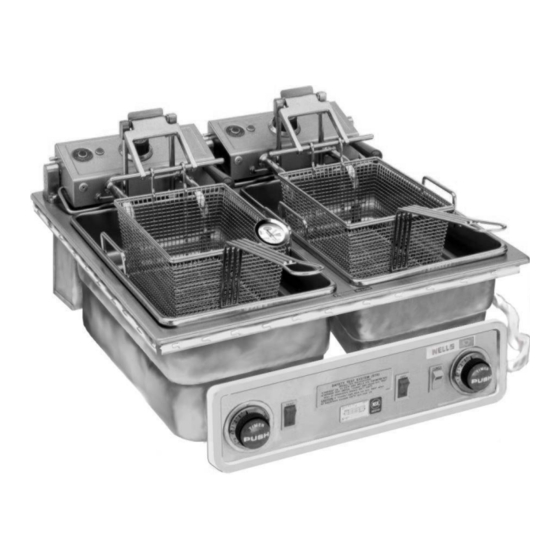

Wells F-886 Built-in Autolift Fryer is one of the most
durable and versatile fryers in the industry. Swing-
up elements allow the fry pots to be easily removed
for cleaning, while the elements low-watt density
provides extended oil life. Fry two separate foods at
the same time using individual fry baskets.
• The autolift fryer has an adjustable one to fi fteen
minute push-button timer for each fry pot that
automatically lifts the basket from the oil.
• Swing-up elements, located below the baskets,
allow easy removal of the fry pots for cleaning.
Elements are heavy-duty stainless steel with low
watt density for longer oil life.
• Element control housings have a spring-loaded
support rod to secure elements when in a raised
position.
• Timer controls are recessed in a one-piece
drawn, remote stainless steel panel.
• Positive-off thermostats control the elements
allowing for adjustable and more consistent
temperatures. Signal lights indicate that the
heating elements are energized.
• Deep-drawn, removable fry pots are made of
nickel-plated steel and are designed to hold
fi fteen pounds of oil per pot.
• A manual reset safety thermostat will shut off the
heating element power and illuminate the signal
light if an over-temperature condition is reached.
• A terminal block is provided for fi eld wiring
connection to the main power supply.
• An auxiliary terminal block allows connection to
an external fl ame sensor fi re suppression system.
F-886
• Two full-size, rear-hanging, interchangeable fry
baskets are provided and allow for product
versatility.
• Wellslok allows for quick and easy installation in
stainless steel countertops.
• The F-886 Fryer is Underwriters Laboratories,
Inc. recognized and meets NSF International
standards.
• A one-year warranty against defects covers
parts and labor.
Overall Dimensions:
Width
Depth
Oil Capacity:
F-886
Temperature Range:
F-886
Pre-Heat Time 350 F°:
Watts Per Hour to Maintain 350 F°:
Typical Production:
French Fries (2 oz. servings)
Chicken (pounds)
Weights:
Installed
Shipping
Accessories/Options
Basket, half-size (2 per fry pot), 20161
Basket, full-size (1 per fry pot), 20162
Crumb Cradle, 20690
Fry Pot, replacement, 20169
Fry Pot Cover, 21010
F-886
Inches MM
24 13/16 630
23 9/16 598
Lbs. KG
30 14
F° C°
275° - 375° 135° - 191°
4 1/2 min.
450
Per Hour
600
40
Lbs KG
78 35
89 40
