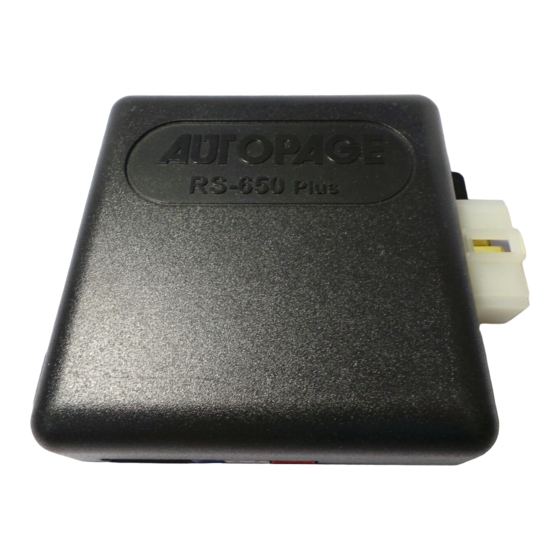

- Page 1 RS-650 Plus PROFESSIONAL REMOTE CAR STARTER & 3 CHANNEL ALARM SYSTEM OPERATIONS MANUAL THIS PRODUCT IS DESIGNED FOR PROFESSIONAL INSTALLATION ONLY...
-
Page 2: System Operations
SYSTEM OPERATIONS A. 5-BUTTON TRANSMITTER OPERATION Transmitter System Function Remark Button Lock Doors & Arm System Arm and Delete The Shock Press twice within 5 seconds. Sensor System Armed Car locator Press and Hold for 3 seconds Panic function Unlock Doors & Disarm System Two Steps Door Unlock &... -
Page 3: Passive Arming With Passive Door Locking
B. PASSIVE ARMING Active arming / disarming is controlling your security system via the remote transmitter. This security system is equipped with an optional Passive Arming feature, which allows the security system to arm 30 seconds after the last door is closed. Operation is as follows: 1. -
Page 4: Disarming Without A Transmitter
AUTOMATIC RE-ARM (See Alarm Feature “ 3” Programming): If this feature is selected, the security system will automatically re-arm itself 60 seconds after disarming with remote transmitter. Automatic re- arm will cancel if any door is opened before the 60 seconds timer has elapsed. - Page 5 G. TRIGGER THE SYSTEM When armed, your vehicle is protected as follows: 1. Light impacts will trigger the warn-away signal. A [3] long chirp from siren/horn. 2. Heavy impacts / Doors open / Hood open / Trunk open / Turn on the ignition key will all trigger the programmed sequence.
-
Page 6: Led Display
LED DISPLAY Function Function Disarmed flashes... Zone 2: Trigger on Trunk/Hood pause Slow Armed flashes... Zone 3: Trigger on Door Switch Flash pause Fast Passive Arming flashes... Zone 4: Trigger on Optional Flash pause Sensor Valet Mode flashes... Zone 5: Trigger on Ignition (Solid) pause Switch... -
Page 7: Remote Start Operations
REMOTE START OPERATIONS WARNINGS: As with any product that performs automatic functions, there are certain safety precautions that you must practice and be aware of. 1. Keep the transmitter out of children’s reach. 2. Do not leave anyone in the vehicle while running on remote control. 3. -
Page 8: To Turn Off The Remote Start
(SAFTEY START OPERATION:) The saftey start feature allows you to press the button 2 times before the vehicle will remote start or remote shut down. (See Start Feature I-5) B. TO TURN OFF THE REMOTE START: When the engine is running (by remote start), if you want to stop it, 1. -
Page 9: Shut-Down Input For Remote Starter
ENTER STEPS: 1. Press the button to remote start the vehicle(Waiting for the Parking Lights to stay on). 2. Immediately depress the button, then immediately, , 3. Depress and Hold down the button until the parking lights flash (3) times and the siren or horn chirps (3) times. The vehicle is now programmed to start every (3) hours. - Page 10 After one (1) year, the purchaser should ship the unit prepaid to AutoPage with a money order in the amount of $20.00 to cover shipping and handling charges. Note: The enclosed Warranty Card may be required to receive warranty services.
- Page 11 This WARRANTY CARD is for your record. However, AutoPage reserves the right to request you to submit this WARRANTY CARD which must have complete information to receive warranty service. Please keep this card in a secured place. AUTOPAGE WARRANTY SERVICE CARD...
- Page 12 1815 W. 205th Street Suite #101 Torrance, CA 90501 Tel: (310) 618-2002 or (800) 262-2527 www.autopageusa.com...
