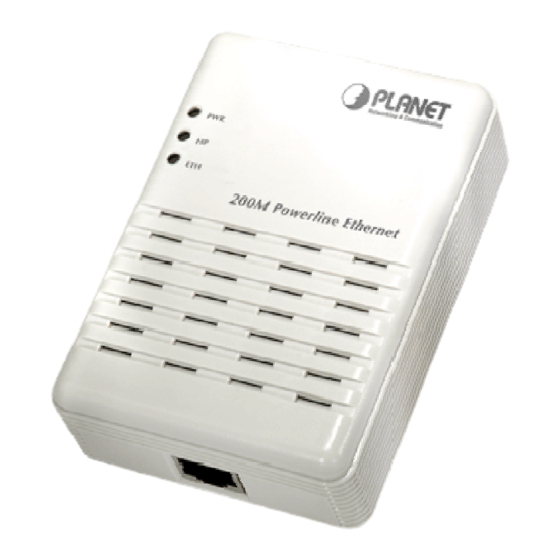

- Page 1 200M Powerline Ethernet Bridge PL-501-EU/US/UK User Manual...
-
Page 2: Fcc Compliance Statement
PLANET Technology. Disclaimer PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose. - Page 3 Trademarks The PLANET logo is a trademark of PLANET Technology. This documentation may refer to numerous hardware and software products by their trade names. In most, if not all cases, these designations are claimed as trademarks or registered trademarks by their respective companies.
-
Page 4: Table Of Contents
Table of Content Chapter 1 Introduction ..................5 Overview ......................5 Feature ......................5 Specification ....................6 Package Contents ...................6 System Requirements ..................6 Panel .......................7 Led Definition....................7 Wire Diagram....................8 Chapter 2 Installation ..................9 Overview ......................9 Running the InstallShield Wizard..............9 Chapter 3 Configuration...................12 Overview .......................12 Diagnose Powerline Network.................12 .............12 Part 1: Diagnose a local Powerline device... -
Page 5: Chapter 1 Introduction
Chapter 1: Introduction Overview Thank you for purchasing PLANET 200M Powerline Ethernet Bridge. With Planet powerline communication products, your power outlets are no longer to be viewed only as power receptacles but also as network connection point. The PL- 501 is a Powerline to Ethernet Bridge with a RJ-45 Ethernet interface which directly connecting to your computer’s network card. -
Page 6: Specification
Specification Model PL-501-EU/US/UK HomePlug AV compliant Standard IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX Ports One RJ-45 port Speed UP to 200Mbps Encryption 128-Bit AES encryption Modulation 1024/256/64/16/8 QAM,QPSK, BPSK Forward Error Correction Turbo Codes Channel Access TDMA, CSMA, CA PWR, HP, ETH... -
Page 7: Panel
Panel LED definition Description PWR Solid Green or off when Power On or off Steady on indicates there exists another powerline device Blinking indicates the data are transferring Steady on indicates the RJ-45 port has correctly connected to the network card of your PC or the Ethernet network Blinking indicates the data are transferring... -
Page 8: Wire Diagram
Wire Diagram... -
Page 9: Chapter 2 Installation
Chapter 2: Installation Overview The installation of 200M Ethernet Bridge will only take minutes. No need to set up long wires through out the house, just simply install the utility, and physically plug the unit into the wall outlet, then to connect RJ-45 to the computer. Users can select to adjust its security functions and the platform of the network after the installation. - Page 10 Once the software is loaded, it will display a dialog as following: Please click on ‘Next’ to continue the installation. This section allows you to change the default directory where the program is installed. Or go ‘Back’. If you don’t want to change it, click on Install to continue the installation.
- Page 11 This screen shows the progress of the installation. This screen shows that the installation was completed successfully. Click on Finish to exit the wizard.
-
Page 12: Chapter 3 Configuration
Chapter 3: Configuration Overview The PL-501 uses 128-bit AES encryption to block outside access. The key is set by using the Configuration Utility on the CD. By default, the protection is enabled, however, it is recommended to change the default network key. All your powerline devices must use the same network key in order to be connected together. - Page 13 *Note* If you do not see ANY unit in the device status but the powerline device does exist, try to unplug all devices and plug them back. Meanwhile, please make sure the cable is the right type and working correctly. If all seems to be correct, and you still receive nothing in the Device window, try rebooting your computer.
-
Page 14: Setting Up Security On A Local Powerline Device
**Note** If there are units in the home network, but nothing displays in this Network scan, try to unplug all devices, and plug them back (Only do this with the units that you do not view in the network screen, you don’t have to do this with all units.) If the problem persists, try to move the unit closer to this current unit (adjacent plugs on the same wall socket is most preferable). -
Page 15: Setting Up Security On A Network Powerline Device
Setting Up Security on a Network Powerline device The Encryption Tab will allow users to use one primary computer to control the Network Key of all units on the home network. Enter both the Remote Device password in the DAK Password field and the desired Network Key in the field provided.
