PPP/MP Setup
MTU
IP Address
Assignment Method
(IPCP)
After finishing all the settings here, please click OK to activate them.
24
Ping IP – If you choose Ping Detect as detection mode, you have
to type IP address in this field for pinging.
TTL (Time to Live) – Display value for your reference. TTL
value is set by telnet command.
PPP Authentication – Select PAP only or PAP or CHAP for
PPP.
Idle Timeout – Set the timeout for breaking down the Internet
after passing through the time without any action. This setting is
active only when the Active on demand option for Active Mode is
selected in WAN>> General Setup page.
Mean maximum transmission unit of one packet. The default value
is 1442.
Usually ISP dynamically assigns IP address to you each time you
connect to it and request. In some case, your ISP provides service
to always assign you the same IP address whenever you request.
In this case, you can fill in this IP address in the Fixed IP field.
Please contact your ISP before you want to use this function.

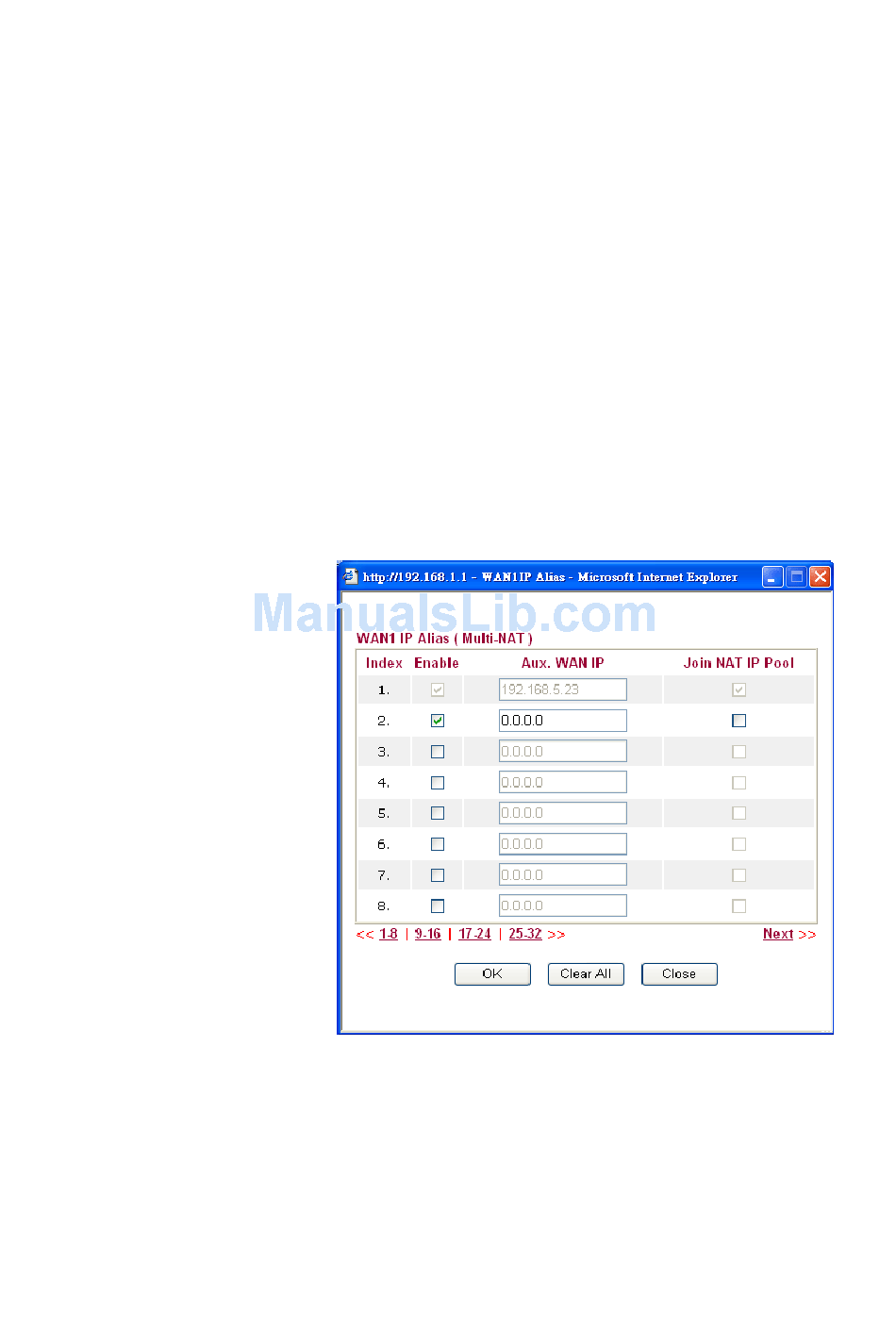

WAN IP Alias - If you have multiple public IP addresses and
would like to utilize them on the WAN interface, please use WAN
IP Alias. You can set up to 32 public IP addresses other than the
current one you are using.
Fixed IP – Click Yes to use this function and type in a fixed IP
address in the box of Fixed IP Address.
Default MAC Address – You can use Default MAC Address or
specify another MAC address by typing on the boxes of MAC
Address for the router.
Specify a MAC Address – Type the MAC address for the router
manually.
