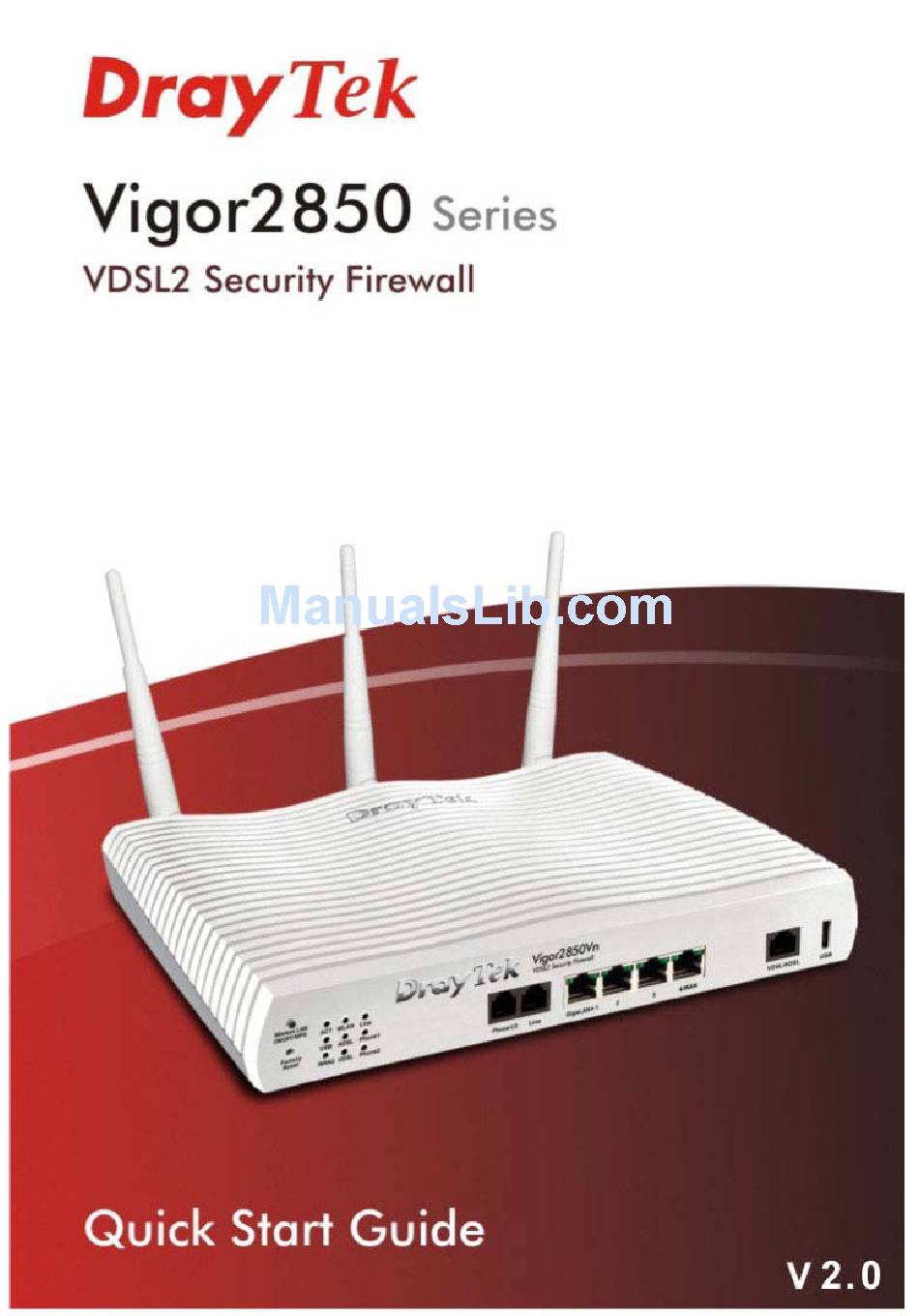

- Page 1 Vigor2850 Series Quick Start Guide...
-
Page 2: Quick Start Guide
Vigor2850 Series VDSL2 Security Firewall Quick Start Guide Version: 1.1 Firmware Version: V3.6.2_RC1 Date: 02/03/2012 Vigor2850 Series Quick Start Guide... -
Page 3: Copyright Information
Web registration is preferred. You can register your Vigor router via Owner http://www.draytek.com. Firmware & Tools Due to the continuous evolution of DrayTek technology, all routers will be Updates regularly upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents. -
Page 4: Regulatory Information
Taiwan 303 Product: Vigor2850 Series Router DrayTek Corp. declares that Vigor2850 Series of routers are in compliance with the following essential requirements and other relevant provisions of R&TTE Directive 1999/5/EEC. The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive 2004/108/EEC by complying with the requirements set forth in EN55022/Class B and EN55024/Class B. - Page 5 Vigor2850 Series Quick Start Guide...
-
Page 6: Table Of Contents
4.3 Pinging the Router from Your Computer .................. 38 4.4 Checking If the ISP Settings are OK or Not ................39 4.5 Backing to Factory Default Setting If Necessary..............39 4.6 Contacting Your Dealer ......................40 Vigor2850 Series Quick Start Guide... - Page 7 Vigor2850 Series Quick Start Guide...
-
Page 9: Introduction
Vigor2850 series is a VDSL2 router with multi-subnet for secure and efficient workgroup management. It integrates IP layer QoS, NAT session/bandwidth management to help users control works well with large bandwidth. By adopting hardware-based VPN platform and hardware encryption of AES/DES/3DES,... -
Page 10: Panel Explanation
The port is connected with 10/100Mbps Left LED The port is connected. GigaLAN (Green) The port is disconnected. 4/WAN Blinking The data is transmitting. Right LED The port is connected with 1000Mbps. (Green) The port is connected with 10/100Mbps Vigor2850 Series Quick Start Guide... - Page 11 Connecter for local network devices or modem for accessing Internet. VDSL/ADSL Connecter for accessing the Internet. Connecter for a USB device (for 3G USB Modem or printer). Connecter for a power adapter. Power Switch. ON/OFF Vigor2850 Series Quick Start Guide...
-
Page 12: For Vigor2850N
The port is connected with 10/100Mbps Left LED The port is connected. GigaLAN (Green) The port is disconnected. 4/WAN Blinking The data is transmitting. Right LED The port is connected with 1000Mbps. (Green) The port is connected with 10/100Mbps Vigor2850 Series Quick Start Guide... - Page 13 Connecter for local network devices or modem for accessing Internet. VDSL/ADSL Connecter for accessing the Internet. Connecter for a USB device (for 3G USB Modem or printer). Connecter for a power adapter. Power Switch. ON/OFF Vigor2850 Series Quick Start Guide...
-
Page 14: For Vigor2850Vn
The port is connected with 10/100Mbps Left LED The port is connected. GigaLAN (Green) The port is disconnected. 4/WAN Blinking The data is transmitting. Right LED The port is connected with 1000Mbps. (Green) The port is connected with 10/100Mbps Vigor2850 Series Quick Start Guide... - Page 15 Connecter for local network devices or modem for accessing Internet. VDSL/ADSL Connecter for accessing the Internet. Connecter for a USB device (for 3G USB Modem or printer). Connecter for a power adapter. Power Switch. ON/OFF Vigor2850 Series Quick Start Guide...
-
Page 16: For Vigor2850I
The port is connected with 10/100Mbps Left LED The port is connected. GigaLAN (Green) The port is disconnected. 4/WAN Blinking The data is transmitting. Right LED The port is connected with 1000Mbps. (Green) The port is connected with 10/100Mbps Vigor2850 Series Quick Start Guide... - Page 17 Connecter for local network devices or modem for accessing Internet. VDSL/ADSL Connecter for accessing the Internet. Connecter for a USB device (for 3G USB Modem or printer). Connecter for a power adapter. Power Switch. ON/OFF Vigor2850 Series Quick Start Guide...
-
Page 18: Package Content
The type of the power adapter depends on the country that the router will be installed: UK-type Power Adapter EU-type Power Adapter USA/Taiwan-type Power Adapter AU/NZ-type Power Adapter * The maximum power consumption is 24 Watt. Vigor2850 Series Quick Start Guide... -
Page 19: Installing Your Router
Power on the device by pressing down the power switch on the rear panel. The system starts to initiate. After completing the system test, the ACT LED will light up and start blinking. (For the hardware connection, we take “Vn” model as an example.) Vigor2850 Series Quick Start Guide... -
Page 20: Printer Installation
You can install a printer onto the router for sharing printing. All the PCs connected this router can print documents via the router. The example provided here is made based on Windows XP/2000. For Windows 98/SE/Vista, please visit www.draytek.com. Before using it, please follow the steps below to configure settings for connected computers (or wireless clients). - Page 21 Next. Click Local printer attached to this computer and click Next. In this dialog, choose Create a new port Type of port and use the drop down list to select Standard TCP/IP Port. Click Next. Vigor2850 Series Quick Start Guide...
- Page 22 In the following dialog, type 192.168.1.1 (router’s LAN IP) in the field of Printer Name or IP Address and type IP_192.168.1.1 as the port name. Then, click Next. Click Standard and choose Generic Network Card. Then, in the following dialog, click Finish. Vigor2850 Series Quick Start Guide...
- Page 23 11. Select "LPR" on Protocol, type p1 (number 1) as Queue Name. Then click OK. Next please refer to the red rectangle for choosing the correct protocol and LPR name. Vigor2850 Series Quick Start Guide...
- Page 24 Note 1: Some printers with the fax/scanning or other additional functions are not supported. If you do not know whether your printer is supported or not, please visit www.draytek.com to find out the printer list. Open Support >FAQ; find out the link of Printer Server and click it.
-
Page 25: Configuring Web
The web page can be logged out according to the chosen condition. The default setting is Auto Logout, which means the web configuration system will logout after five minutes without any operation. Change the setting for your necessity. Now, the Main Screen will pop up. Vigor2850 Series Quick Start Guide... -
Page 26: Basic Configuration
On the next page as shown below, please select the WAN interface that you use. If DSL interface is used, please choose WAN1; if Ethernet interface is used, please choose WAN2; if 3G USB modem is used, please choose WAN3. Then click Next for next step. Vigor2850 Series Quick Start Guide... -
Page 27: For Wan1 (Adsl/Vdsl)
ISP. For example, you should select PPPoE mode if the ISP provides you PPPoE interface. In addition, the field of For ADSL Only will be available only when ADSL is detected. Then click Next for next step. Vigor2850 Series Quick Start Guide... - Page 28 Choose WAN1 as WAN Interface and click the Next button; you will get the following page. Vigor2850 Series Quick Start Guide...
- Page 29 Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet. Vigor2850 Series Quick Start Guide...
- Page 30 ISP. Then click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet. Vigor2850 Series Quick Start Guide...
-
Page 31: For Wan2 (Ethernet)
ISP provides you PPPoE interface. Then click Next for next step. Choose WAN2 as the WAN Interface and click the Next button. The following page will be open for you to specify Internet Access Type. Vigor2850 Series Quick Start Guide... - Page 32 Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet. Vigor2850 Series Quick Start Guide...
- Page 33 Choose WAN2 as the WAN Interface and click the Next button. The following page will be open for you to specify Internet Access Type. Click PPTP/L2TP as the Internet Access Type. Then click Next to continue. Vigor2850 Series Quick Start Guide...
- Page 34 Now, you can enjoy surfing on the Internet. Choose WAN2 as the WAN Interface and click the Next button. The following page will be open for you to specify Internet Access Type. Vigor2850 Series Quick Start Guide...
- Page 35 Please type in the IP address information originally provided by your ISP. Then click Next for next step. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet. Vigor2850 Series Quick Start Guide...
- Page 36 Internet Access Type. Click DHCP as the Internet Access type. Simply click Next to continue. After finished the settings above, click Next for viewing summary of such connection. Vigor2850 Series Quick Start Guide...
- Page 37 Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet. Vigor2850 Series Quick Start Guide...
-
Page 38: For Wan3 (Usb)
Then, click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet. Vigor2850 Series Quick Start Guide... -
Page 39: Wireless Configuration
In an Infrastructure Mode of wireless network, Vigor wireless router plays a role as an Access Point (AP) connecting to lots of wireless clients or Stations (STA). All the STAs (clients) will share the same Internet connection with other wired hosts via Vigor wireless router. Vigor2850 Series Quick Start Guide... -
Page 40: General Setup
(11a+11n), Mixed (11g+11n), and Mixed (11b+11g+11n) stations simultaneously. Simply choose Mixed (11b+11g+11n) mode. Type in the name of the SSID. The default name for SSID is DrayTek. We suggest you to change it with a particular name. Click OK to save the configuration. -
Page 41: Security Settings
Internet through such router, please input the default PSK value for connection. Default Pre-Shared Key (PSK) with 13 ASCII characters is provided and stated on the label pasted on the bottom of the router. Vigor2850 Series Quick Start Guide... - Page 42 Be aware that for the communication, all wireless devices must support the same encryption bit length and share the same key. If WEP mode is selected, only one of four preset keys can be selected at one time. Vigor2850 Series Quick Start Guide...
-
Page 43: Trouble Shooting
Turn on the router. Make sure the ACT LED blink once per second and the correspondent LAN LED is bright. If not, it means that there is something wrong with the hardware status. Simply back to “2.1 Hardware Installation” to execute the hardware installation again. And then, try again. Vigor2850 Series Quick Start Guide... - Page 44 Go to Control Panel and then double-click on Network Connections. Right-click on Local Area Connection and click on Properties. Select Internet Protocol (TCP/IP) and then click Properties. Vigor2850 Series Quick Start Guide...
- Page 45 Double click on the current used Mac OS on the desktop. Open the Application folder and get into Network. On the Network screen, select Using DHCP from the drop down list of Configure IPv4. Vigor2850 Series Quick Start Guide...
-
Page 46: Pinging The Router From Your Computer
Open the Application folder and get into Utilities. Double click Terminal. The Terminal window will appear. Type ping 192.168.1.1 and press [Enter]. If the link is OK, the line of “64 bytes from 192.168.1.1: icmp_seq=0 ttl=255 time=xxxx ms” will appear. Vigor2850 Series Quick Start Guide... -
Page 47: Checking If The Isp Settings Are Ok Or Not
You can reset the router to factory default via Web page. Go to System Maintenance and choose Reboot System on the web page. The following screen will appear. Choose Using factory default configuration and click OK. After few seconds, the router will return all the settings to the factory settings. Vigor2850 Series Quick Start Guide... -
Page 48: Contacting Your Dealer
If the router still cannot work correctly after trying many efforts, please contact your dealer for further help right away. For any questions, please feel free to send e-mail to support@draytek.com. Vigor2850 Series Quick Start Guide...
