Page 3: Quick Start Guide
Vigor2830 Series ADSL2/2+ Security Firewall Quick Start Guide Version: 1.0 Firmware Version: V3.3.6_RC1 Date: 12/08/2010 Vigor2830 Series Quick Start Guide... -
Page 4: Copyright Information
Web registration is preferred. You can register your Vigor router via Owner http://www.draytek.com. Firmware & Tools Due to the continuous evolution of DrayTek technology, all routers will be Updates regularly upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents. -
Page 5: European Community Declarations
No. 26, Fu Shing Road, HuKou County, HsinChu Industrial Park, Hsin-Chu, Taiwan 303 Product: Vigor2830 Series Router DrayTek Corp. declares that Vigor2830 Series of routers are in compliance with the following essential requirements and other relevant provisions of R&TTE Directive 1999/5/EEC. The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive 2004/108/EEC by complying with the requirements set forth in EN55022/Class B and EN55024/Class B. - Page 6 Vigor2830 Series Quick Start Guide...
-
Page 7: Table Of Contents
4.3 Pinging the Router from Your Computer .................. 38 4.4 Checking If the ISP Settings are OK or Not ................39 4.5 Backing to Factory Default Setting If Necessary..............39 4.6 Contacting Your Dealer ......................40 Vigor2830 Series Quick Start Guide... - Page 8 Vigor2830 Series Quick Start Guide viii...
-
Page 9: Introduction

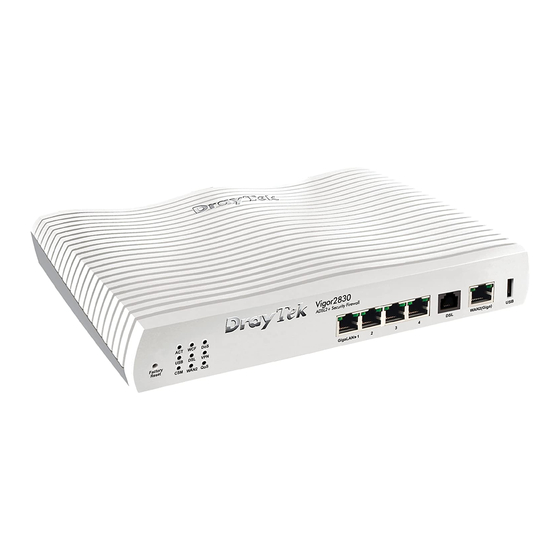

By the way, DoS/DDoS prevention and URL/Web content filter strengthen the security outside and control inside. In addition, Vigor2830 series supports USB interface for connecting USB printer to share printer or USB storage device for sharing files. Vigor2830 series provides two-level management to simplify the configuration of network connection. -
Page 10: Panel Explanation
The port is connected. WAN2 (Green) The port is disconnected. (Giga) Blinking The data is transmitting. Right LED The port is connected with 1000Mbps. (Green) The port is disconnected with 10/100Mbps when left LED is on. Vigor2830 Series Quick Start Guide... - Page 11 Connecters for local network devices. Connecter for accessing the Internet through ADSL2/2+. WAN2(Giga) Connecter for remote network devices. Connecter for a USB device (for 3G USB Modem or printer). Connecter for a power adapter. Power Switch. ON/OFF Vigor2830 Series Quick Start Guide...
-
Page 12: For Vigor2830N
The port is connected. WAN2 (Green) The port is disconnected. (Giga) Blinking The data is transmitting. Right LED The port is connected with 1000Mbps. (Green) The port is disconnected with 10/100Mbps when left LED is on. Vigor2830 Series Quick Start Guide... - Page 13 Connecters for local network devices. Connecter for accessing the Internet through ADSL2/2+. WAN2(Giga) Connecter for remote network devices. Connecter for a USB device (for 3G USB Modem or printer). Connecter for a power adapter. Power Switch. ON/OFF Vigor2830 Series Quick Start Guide...
-
Page 14: For Vigor2830Vn
The port is connected. WAN2 (Green) The port is disconnected. (Giga) Blinking The data is transmitting. Right LED The port is connected with 1000Mbps. (Green) The port is connected with 10/100Mbps when left LED is on. Vigor2830 Series Quick Start Guide... - Page 15 Connecters for local network devices. Connecter for accessing the Internet through ADSL2/2+. WAN2(Giga) Connecter for remote network devices. Connecter for a USB device (for 3G USB Modem or printer). Connecter for a power adapter. Power Switch. ON/OFF Vigor2830 Series Quick Start Guide...
-
Page 16: For Vigor2830Vs
VoIP>>Phone Settings is active and an ISDN phone adapter is not connected. It means ISDN TE mode is active which is configured from VoIP>>Phone Settings. Right LED A phone adapter with phone set has been connected Vigor2830 Series Quick Start Guide... - Page 17 Connecters for local networked devices. Connecter for accessing the Internet through ADSL2/2+. WAN2(Giga) Connecter for remote networked devices. Connecter for a USB device (for 3G USB Modem or printer). Connecter for a power adapter. Power Switch. ON/OFF Vigor2830 Series Quick Start Guide...
-
Page 18: For Vigor2830Vsn
It means ISDN TE mode is active which is configured from VoIP>>Phone Settings. Right LED A phone adapter with phone set has been connected (Green) (ISDN S0 intern mode) or ISDN line has been Vigor2830 Series Quick Start Guide... - Page 19 Connecters for local networked devices. Connecter for accessing the Internet through ADSL2/2+. WAN 2 Connecter for remote networked devices. Connecter for a USB device (for 3G USB Modem or printer). Connecter for a power adapter. Power Switch. ON/OFF Vigor2830 Series Quick Start Guide...
-
Page 20: Package Content
The type of the power adapter depends on the country that the router will be installed: UK-type Power Adapter EU-type Power Adapter USA/Taiwan-type Power Adapter AU/NZ-type Power Adapter * The maximum power consumption is 20 Watt. Vigor2830 Series Quick Start Guide... -
Page 21: Installing Your Router
Power on the device by pressing down the power switch on the rear panel. The system starts to initiate. After completing the system test, the ACT LED will light up and start blinking. (For the hardware connection, we take “Vn” model as an example.) Vigor2830 Series Quick Start Guide... - Page 22 Vigor2830 Series Quick Start Guide...
-
Page 23: Printer Installation
You can install a printer onto the router for sharing printing. All the PCs connected this router can print documents via the router. The example provided here is made based on Windows XP/2000. For Windows 98/SE/Vista, please visit www.draytek.com. Before using it, please follow the steps below to configure settings for connected computers (or wireless clients). - Page 24 Next. Click Local printer attached to this computer and click Next. In this dialog, choose Create a new port Type of port and use the drop down list to select Standard TCP/IP Port. Click Next. Vigor2830 Series Quick Start Guide...
- Page 25 In the following dialog, type 192.168.1.1 (router’s LAN IP) in the field of Printer Name or IP Address and type IP_192.168.1.1 as the port name. Then, click Next. Click Standard and choose Generic Network Card. Then, in the following dialog, click Finish. Vigor2830 Series Quick Start Guide...
- Page 26 11. Select "LPR" on Protocol, type p1 (number 1) as Queue Name. Then click OK. Next please refer to the red rectangle for choosing the correct protocol and LPR name. Vigor2830 Series Quick Start Guide...
- Page 27 If you do not know whether your printer is supported or not, please visit www.draytek.com to find out the printer list. Open Support >FAQ; find out the link of Printer Server and click it; then click the What types of printers are compatible with Vigor router? link.
- Page 28 This page is left blank. Vigor2830 Series Quick Start Guide...
-
Page 29: Configuring Web
The web page can be logged out according to the chosen condition. The default setting is Auto Logout, which means the web configuration system will logout after five minutes without any operation. Change the setting for your necessity. Now, the Main Screen will pop up. Vigor2830 Series Quick Start Guide... -
Page 30: Basic Configuration
Note: The home page will change slightly in accordance with the router model you have. Enter the login password on the field of New Password and retype it on the field of Confirm Password. Then click Next to continue. Vigor2830 Series Quick Start Guide... - Page 31 Choose WAN1 and click Next to display the following page. Please select the appropriate Internet access type according to the information from your ISP. For example, you should select PPPoE mode if the ISP provides you PPPoE interface. Then click Next for next step. Vigor2830 Series Quick Start Guide...
- Page 32 PPPoE/PPPoA: if you click PPPoE or PPPoA as the protocol, please manually enter the Username/Password provided by your ISP. Then click Next. Vigor2830 Series Quick Start Guide...
- Page 33 Now you can see the following screen. It indicates that the setup is complete. Different types of connection modes will have different summary. Click Finish and then restart the router. Afterward, you will enjoy surfing on the Internet. Vigor2830 Series Quick Start Guide...
- Page 34 On the next page as shown below, please select the appropriate Internet access type according to the information from your ISP. For example, you should select PPPoE mode if the ISP provides you PPPoE interface. Then click Next for next step. Vigor2830 Series Quick Start Guide...
- Page 35 Username/Password provided by your ISP. Then click Next. PPTP/L2TP: if you click PPTP/L2TP, you will get the following page. Please type in all the information originally provided by your ISP. Then click Next for next step. Vigor2830 Series Quick Start Guide...
- Page 36 Static IP: if you click Static IP, you will get the following page. Please type in the IP address information originally provided by your ISP. Then click Next for next step. DHCP: if you click DHCP, you will get the following page. Simply click Next to continue. Vigor2830 Series Quick Start Guide...
- Page 37 Now you can see the following screen. It indicates that the setup is complete. Different types of connection modes will have different summary. Click Finish and then restart the router. Afterward, you will enjoy surfing on the Internet. Vigor2830 Series Quick Start Guide...
-
Page 38: Wireless Configuration
In an Infrastructure Mode of wireless network, Vigor wireless router plays a role as an Access Point (AP) connecting to lots of wireless clients or Stations (STA). All the STAs (clients) will share the same Internet connection with other wired hosts via Vigor wireless router. Vigor2830 Series Quick Start Guide... -
Page 39: General Setup
At present, the router can connect to IEEE802.11b, IEEE802.11g and IEEE802.11n stations simultaneously. Simply choose Mixed (11b+11g+11n) mode. Type in the name of the SSID. The default name for SSID is DrayTek. We suggest you change it to a particular name for your necessity. -
Page 40: Security Settings
PSK. Accepts only WPA2 clients and the encryption key WPA2/PSK should be entered in PSK. Accepts WPA and WPA2 clients, and the encryption Mixed (WPA+WPA2)/ key should be entered in PSK. Vigor2830 Series Quick Start Guide... - Page 41 Be aware that for the communication, all wireless devices must support the same encryption bit length and share the same key. If WEP mode is selected, only one of four preset keys can be selected at one time. Vigor2830 Series Quick Start Guide...
- Page 42 This page is left blank. Vigor2830 Series Quick Start Guide...
-
Page 43: Trouble Shooting
Turn on the router. Make sure the ACT LED blink once per second and the correspondent LAN LED is bright. If not, it means that there is something wrong with the hardware status. Simply back to “2.1 Hardware Installation” to execute the hardware installation again. And then, try again. Vigor2830 Series Quick Start Guide... - Page 44 Go to Control Panel and then double-click on Network Connections. Right-click on Local Area Connection and click on Properties. Select Internet Protocol (TCP/IP) and then click Properties. Vigor2830 Series Quick Start Guide...
- Page 45 Select Obtain an IP address automatically and Obtain DNS server address automatically. Double click on the current used MacOs on the desktop. Open the Application folder and get into Network. On the Network screen, select Using DHCP from the drop down list of Configure IPv4. Vigor2830 Series Quick Start Guide...
-
Page 46: Pinging The Router From Your Computer
Open the Application folder and get into Utilities. Double click Terminal. The Terminal window will appear. Type ping 192.168.1.1 and press [Enter]. If the link is OK, the line of “64 bytes from 192.168.1.1: icmp_seq=0 ttl=255 time=xxxx ms” will appear. Vigor2830 Series Quick Start Guide... -
Page 47: Checking If The Isp Settings Are Ok Or Not
Go to System Maintenance and choose Reboot System on the web page. The following screen will appear. Choose Using factory default configuration and click OK. After few seconds, the router will return all the settings to the factory settings. Vigor2830 Series Quick Start Guide... -
Page 48: Contacting Your Dealer
If the router still cannot work correctly after trying many efforts, please contact your dealer for further help right away. For any questions, please feel free to send e-mail to support@draytek.com. Vigor2830 Series Quick Start Guide...
