Front Glass Replacement; Partially Reflective Glass Replacement; On/Off Switch And Remote Switchboard Replacement - Dimplex DF3015 Service Manual

Front glass Replacement

Tools Required: Phillips head Screwdriver
WARNINg: If unit was operating prior to servicing allow
at least 10 minutes for light bulbs and heating element to
cool off to avoid accidental burning of skin.
WARNINg: Disconnect power before attempting any
maintenance or cleaning to reduce the risk of electric
shock or damage to persons.
1. Slide firebox out of mantel.
2. Lay unit on it's back for safe removal of Front Glass.
3. Remove four (4) Phillips screws from right side of Trim
(Figure 8).
4. Remove Trim.
5. Slide glass to the right side of the firebox to remove.
6. Reassemble using replacement Front Glass in reverse
order as described above.
CAUTION: Even though the glass is safety glass it may
break if bumped, struck or dropped. Care must be taken
when handling the glass.

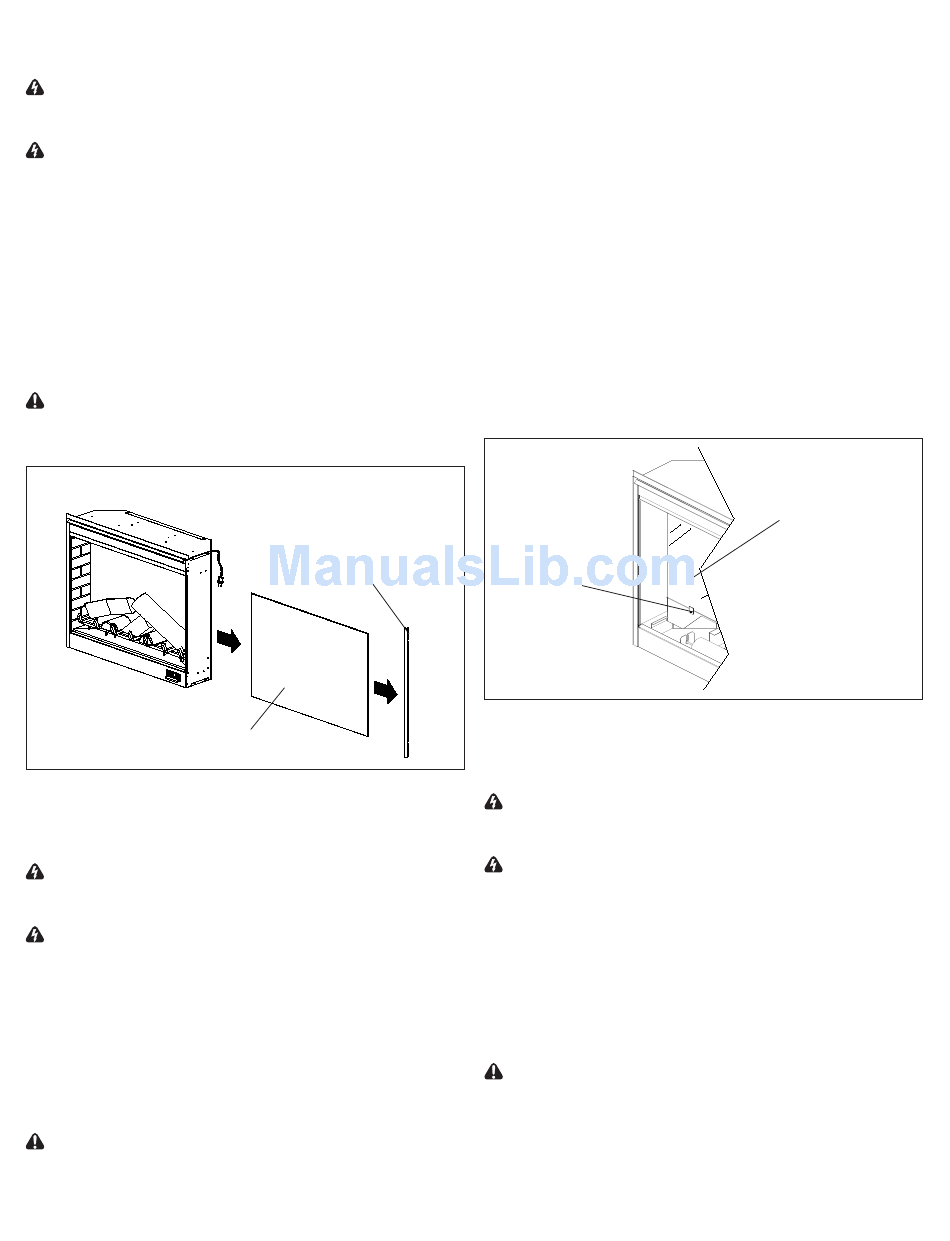

Figure 8
Front Glass
Partially Reflective glass
Replacement
Tools Required: Phillips head Screwdriver
WARNINg: If unit was operating prior to servicing allow
at least 10 minutes for light bulbs and heating element to
cool off to avoid accidental burning of skin.
WARNINg: Disconnect power before attempting any
maintenance or cleaning to reduce the risk of electric
shock or damage to persons.
1. Slide firebox out of mantel.
2. Lay unit on it's back for safe removal of Front Glass.
3. Remove four (4) Phillips screws from the right side of
trim (Figure 8).
4. Remove Trim.
5. Slide glass to right side of fireplace to remove.
CAUTION: Even though the glass is safety glass it may
break if bumped, struck of dropped. Care must be taken
when handling the glass.
6. Pull the front edge of the plastic Ember Bed or plastic
grate up and forward until the rear tab releases from the
ledge located at the bottom of the Partially Reflective
Glass (Figure 6).
! IMPORTANT: Only handle the Log Set Assembly by the
Ember Bed or plastic grate.
! NOTE: Log Set Assembly fits tightly into firebox, some
force may be necessary to remove.
7. Disconnect LED harness (only required on DF3015 unit).
8. Loosen, but do not remove, the two (2) Philips screws
that clamp the Partially Reflective Glass in place, and
swivel them so that the clamp clears the edge of the
Partially Reflective Glass (Figure 9).
9. Push the Partially Reflective Glass out from behind to
clear the frame and remove.
10. Insert replacement Partially Reflective Glass top end first
and lay the bottom end gently in the bottom track of the
frame.
11. Tighten clamps back into place and re-assemble firebox
in reverse order as described above.
Figure 9
Trim
On/Off Switch and Remote
Switchboard Replacement
Tools Required: Phillips head Screwdriver
WARNINg: If unit was operating prior to servicing allow
at least 10 minutes for light bulbs and heating element to
cool off to avoid accidental burning of skin.
WARNINg: Disconnect power before attempting any
maintenance or cleaning to reduce the risk of electric
shock or damage to persons.
1. Slide firebox out of mantel.
2. Lay unit on it's back for safe removal of Front Glass.
3. Remove four (4) Phillips screws from right side of Trim
(Figure 8).
4. Remove Trim.
5. Slide glass to right side of firebox to remove.
CAUTION: Even though the glass is safety glass it may
break if bumped, struck of dropped. Care must be taken
when handling the glass.
6. Pull the front edge of the plastic Ember Bed or plastic
grate up and forward until the rear tab releases from the
ledge located at the bottom of the Partially Reflective
Glass (Figure 6).
11
Clamp
Partially Reflective
Glass
