Hold the Bluetooth module by the sides only. Do not touch the connector
on the card or on the computer. Debris on the connectors may cause
access problems. Be careful not to apply pressure to the ICs on the
Bluetooth module.
Fold up a flexible cable after seating the Bluetooth module.
Antenna cable
19. Install the touch pad assembly to the slot of the palm rest and connect
the touch pad cable.
Check that the touch pad cable is above the antenna cable.
20. Seat the keyboard and connect the keyboard ribbon cable.
21. Slide the keyboard support plate toward you and attach it while sticking
the adhered portion on to the CPU holder.
22. Secure one screw of the keyboard support plate.
23. Seat the keyboard down, set the three latches and screw in the two
screws.
24. Seat the speaker cover and press to secure latches.
25. Close the display panel and turn the computer upside down.
26. Install the battery pack.
GB-4

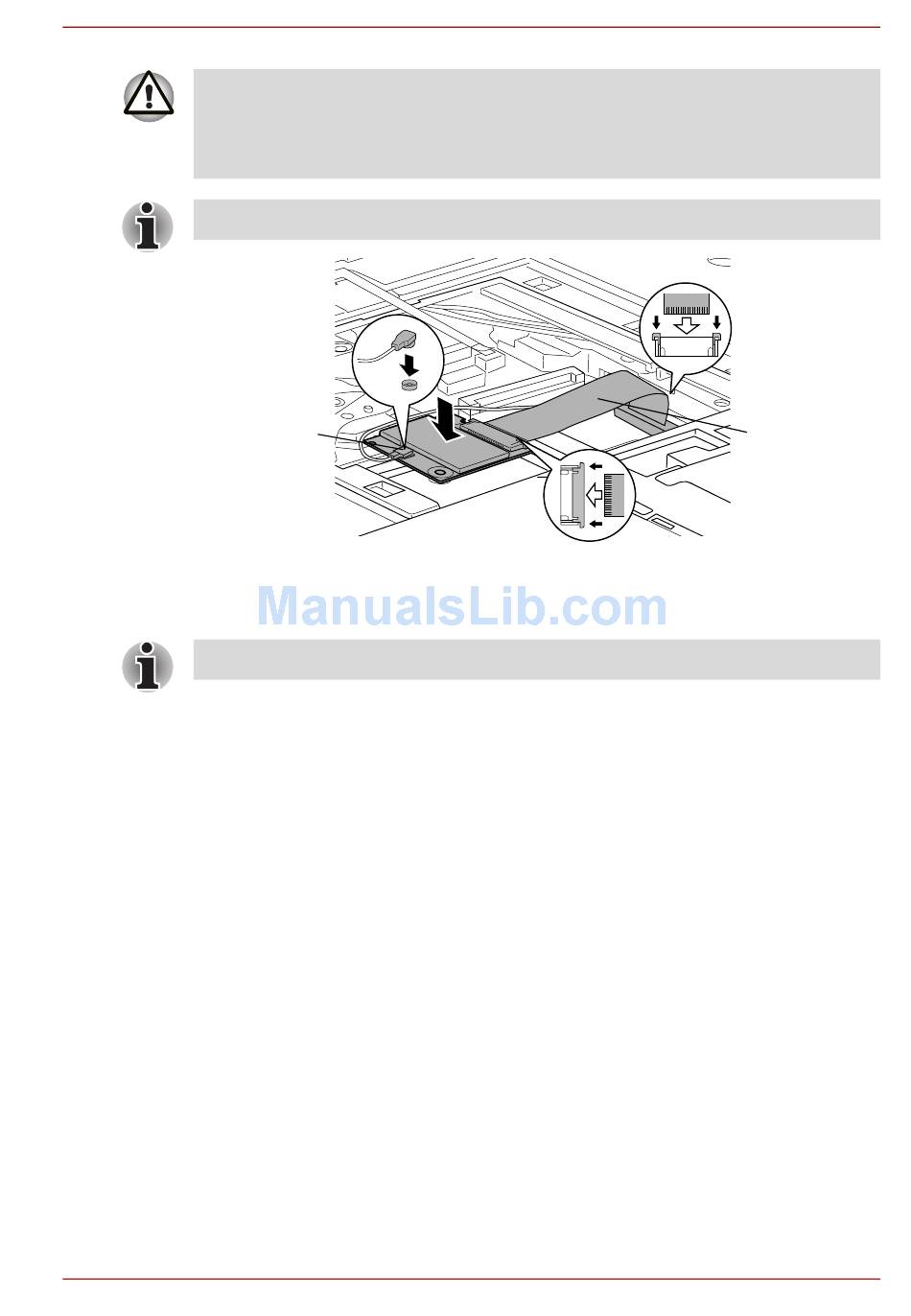

Figure 6: Connecting the flexible cable and antenna cable
TOSHIBA Bluetooth Module Installation
Flexible cable
