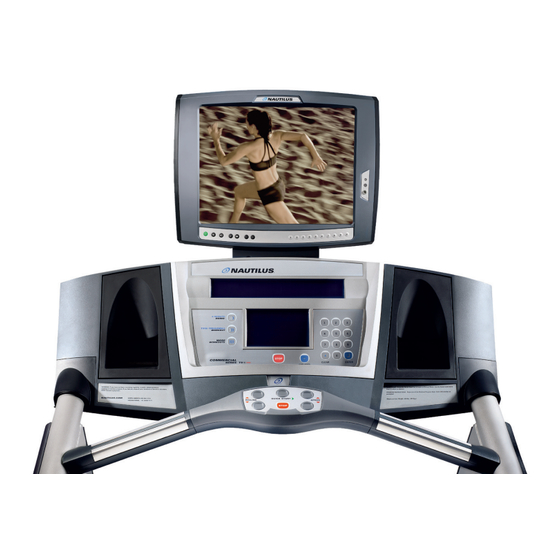

- Page 1 Be Strong. ™ Users Manual NV 915 LCD Digital Monitor (NTSC) Model: NV 915 P/N: 001-7167 Rev A ( 08/10/2007 )
-
Page 2: Fcc Information
FCC Information FCC Information This equipment has been tested and found to comply with limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment can generate, uses, and radiates radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 3: Table Of Contents
Connections ................. 8 Using Remote Control ..............12 LCD Menus ..................14 LCD Monitor Controls ..............25 Replacing Headphone Jack ............26 Replacing Keypad ............... 27 Troubleshooting ................29 Warranty Terms ................30 Important Contact Numbers ............. 31 Nautilus LCD Users Manual ®... -
Page 4: Safety Precautions
Important Safety Precautions To reduce the risk of fire, electrical shock or IMportaNt! other injuries, follow these safety precau- tions when installing, using and maintain- Save these instructions. ing your NV915 LCD TV Monitor. Read all instructions before using. This symbol appearing throughout this manual means: W A R N I N G Pay Attention! Be Alert! Your Safety Is Involved! W A R N I N G... -
Page 5: Components
If any items are missing, please contact Customer Service. Power Supply Hardware Kit LCD Monitor/Monitors Part # 002-3787 Part # 001-1938 Part # 002-3782 Remote Control with Batteries Owners Manual CD Power Cord 002-3785 Part # 001-7167 Part # 001-1922 (Boxed Separately) Nautilus LCD Users Manual ®... -
Page 6: Product Specifications
For Customers in the European Union, Do not dispose of this product as refuse. this product is to be recycled. For information on the proper method of disposal contact a Nautilus, Inc. Customer Service representative. Contact information is available in the Important Contact Numbers section in this manual. -
Page 7: Safety Warning Labels
Safety Warning Labels the following safety warnings are located on the NV91 LCD Monitor. please read all safety precautions and warning information prior to using your product. Nautilus LCD Users Manual ®... -
Page 8: Connections
Connections Rear Connection Panel 1 DtV / analog tV antenna Input SpDIF (atSC) out HDMI Input pC Input pC audio Input / Headphone output power Input Side Connection Panel (LCD Monitor Back Cover must be removed to access Side Panel) 7 Component Input (Video/audio) 8 audio L/r Input 9 S-Video Input... -
Page 9: Connecting Antenna
1. Connect D-Sub Cable (not included) to the D-Sub port on the LCD Monitor and pC. . Connect audio Cable (not included) to audio output of pC and the audio Input of the LCD Monitor. Audio Input D-Sub Port Nautilus LCD Users Manual ®... - Page 10 Connections Connecting DTV (digital), DVD (Pb Y Pr), VCR, Set Top Box or Camcorder. NOTE: LCD Back Cover must be removed to access Side panel. Cables must be connected to ports of the same color. 1. Connect Component Cable (not included) to the Connection ports on the LCD Monitor and DtV receiver, DVD pLayer, VCr, Set top Box or Camcorder.
-
Page 11: Connecting Hdmi
. please use 8ohms impedance headphone. otherwise output volume may be too low or too loud. . In case of connecting to speakers, connect speakers with amps. If connected with speakers without amps, the output volume may be low. LCD TV BACK Headphone Jack or External Speakers Nautilus LCD Users Manual ®... -
Page 12: Using Remote Control
Using Remote Control Remote Control Buttons 1 power on/off Sound off Channel Selection tV & Input Source Control Sound Mode Control picture Mode 7 Volume Control 8 Channel Control 9 Menu 10 Caption on/off 11 tV Functions (Hot Key) 1 Still Image (Freeze) 1 Electronic program Guide 1 Not available... -
Page 13: Menu Configuration
• press Menu control button () to move to sub menu of a selected main menu. • press EXIt button to turn off the menu screen. • to move among menus, use Menu control buttons (▲/▼). • to change a selected menu setting, use Menu control buttons (▲/▼). Nautilus LCD Users Manual ®... -
Page 14: Lcd Menus
LCD Menus MENU Configuration Sub Menu Settings Main Menu Channel Search When using the LCD Monitor after first connection, reconnection due to power failure or other reasons, channels should be searched and registered. • press AUTO button on the remote control. •... - Page 15 • Use the numeric buttons (0-9) or the CH button to select a channel. • press the MEMORY button. • If adding a channel by using the CH button, move to add. • once the setting is complete, press the MEMORY button again. Nautilus LCD Users Manual ®...
- Page 16 LCD Menus Add/Remove Channel Frequently watched channels can be swapped and stored with other channels. • Navigate to the channel you wish to swap. • press the MENU button and navigate to the <CH Swap> menu. • Set both channels that you want to swap. •...
-
Page 17: Closed Caption
• press MENU button on the remote control and move to <SEtUp – Caption Mode> and execute caption. • press buttons to move to <SEtUp – Font option> and press the / / / button. Nautilus LCD Users Manual ®... - Page 18 LCD Menus • press buttons to select digital closed caption screen appearance. / / / • press EXIt button to return to the normal screen. Menu Description Item Size Font Size Standard - Large - Small 0 ~Style 7 Style Font Style...
- Page 19 Change pIN screen will appear. Choose any digits for your pIN and enter them. the default pIN number for a new tV set is <0-0-0-0>. the <Confirm pIN> screen appears. • re-enter the same digits. When the Confirm screen disappears, your pIN has been memorized. Nautilus LCD Users Manual ®...
- Page 20 LCD Menus * press the EXIt button to return to the normal screen. 4. How to Enable / Disable the V-Chip function press the MENU button. press the ( ) buttons to move to <V-Chip>. / / / the message <Input pIN>...
-
Page 21: Picture Mode
Adjust screen color. Tint Adjust screen tint. If its level is close to red 50, skin tones become reddish. If its level is close to green 50, skin tones become greenish. (Continued on next page) Nautilus LCD Users Manual ®... -
Page 22: Timer Settings
LCD Menus 2. Picture Mode - <User> Settings (Cont.) User Item Description Sharpness Adjust screen sharpness. Level adjust between 0 (Min) to 100 (Max). Color Temp Adjust screen color temperature to be natural. R G B Adjust color temperature to the desired level. Room Light Adjust screen brightness dependent on room brightness. -
Page 23: Sound Mode
• press SM button on the remote control. • Each press of this button, sound mode toggles <Standard Music Movie News User>. • also, it can be selected by pressing MENU button on the remote control. Nautilus LCD Users Manual ®... - Page 24 LCD Menus Mode Description Standard This mode is standard sound mode to watch the TV generally. Music This mode is better to watch a music program. Movie This mode is better to watch a movie program. News This mode is better to watch a news program. Surround The surround sound feature expands the audio listening field wider and deeper to create exceptional sound quality from the TV’s speakers.
-
Page 25: Lcd Monitor Controls
LCD Monitor Controls power Light Infrared (remote) receiver Headphone Jack power Volume Down Volume Up Mute Video Input Source (Video/S-Video, antenna) Channel Down Channel Up Numeric Channel Keys Nautilus LCD Users Manual ®... -
Page 26: Replacing Headphone Jack
Replacing Headphone Jack Over time the Headphone Jack may become worn and fail to function properly. Replacing Headphone Jack Tools Needed: Phillips Head Screwdriver Parts Needed: Headphone Jack Kit Part# 001-1945 1. remove the Decal covering the Headphone Jack. (Figure a) 2. -
Page 27: Replacing Keypad
. Gently lay the LCD on it’s back and peel off the old Keypad (Figure D). . remove the old Keypad from the slot it the plastic (Figure E). (Continued on next page) Ribbon Cable Ribbon Cable Figure a Figure B Figure C Keypad Figure E Figure D Nautilus LCD Users Manual ®... - Page 28 Replacing Keypad Replacing Keypad (Continued) 5. Insert the new Keypad ribbon cable through the slot with the adhesive side toward the bottom of the LCD. (Figure F) 6. peel off the adhesive Backing .(Figure G) 7. position the Keypad on the plastic and firmly press into place. (Figure H & I) 8.
-
Page 29: Troubleshooting
• try the remote on another LCD Display if available. • Make sure you have fresh batteries. • Check or replace the Headphone Jack on the front of the LCD Monitor. If you need further assistance, parts or service please contact Customer Service. Nautilus LCD Users Manual ®... -
Page 30: Warranty Terms
Nautilus, Inc. election, to the return of the purchase price required. Any product sold or placed in an application not of the exercise product in question. -
Page 31: Important Contact Numbers
Important Contact Numbers If you need assistance, please have both the serial number of your machine and the date of purchase available when you contact the appropriate Nautilus office listed below. OFFICES IN THE UNITED STATES: INTERNATIONAL OFFICES: OFFICES IN THE UNITED STATES: For technical assistance and a list of distributors in your area, please call or fax one of the following numbers. - Page 32 ® equipment, visit www.nautilusinc.com. © 2007 Nautilus, Inc. All rights reserved. Nautilus, the Nautilus logo, Be Strong are either registered trademarks or trademarks of Nautilus, Inc. All other marks are either registered trademarks or trademarks of their respective companies. Nautilus, Inc. World Headquarters, 16400 SE Nautilus Drive, Vancouver, Washington, USA 98683, 1-800-628-8458, www.Nautilus.com.
