Be Strong.
™
NV 915
LCD TV Stand Assembly Manual
Model: NV 915
P/N:
001-2036 Rev B ( 08/13/2007 )

Advertisement

loading

Related Manuals for Nautilus Be Strong. NV915

Summary of Contents for Nautilus Be Strong. NV915

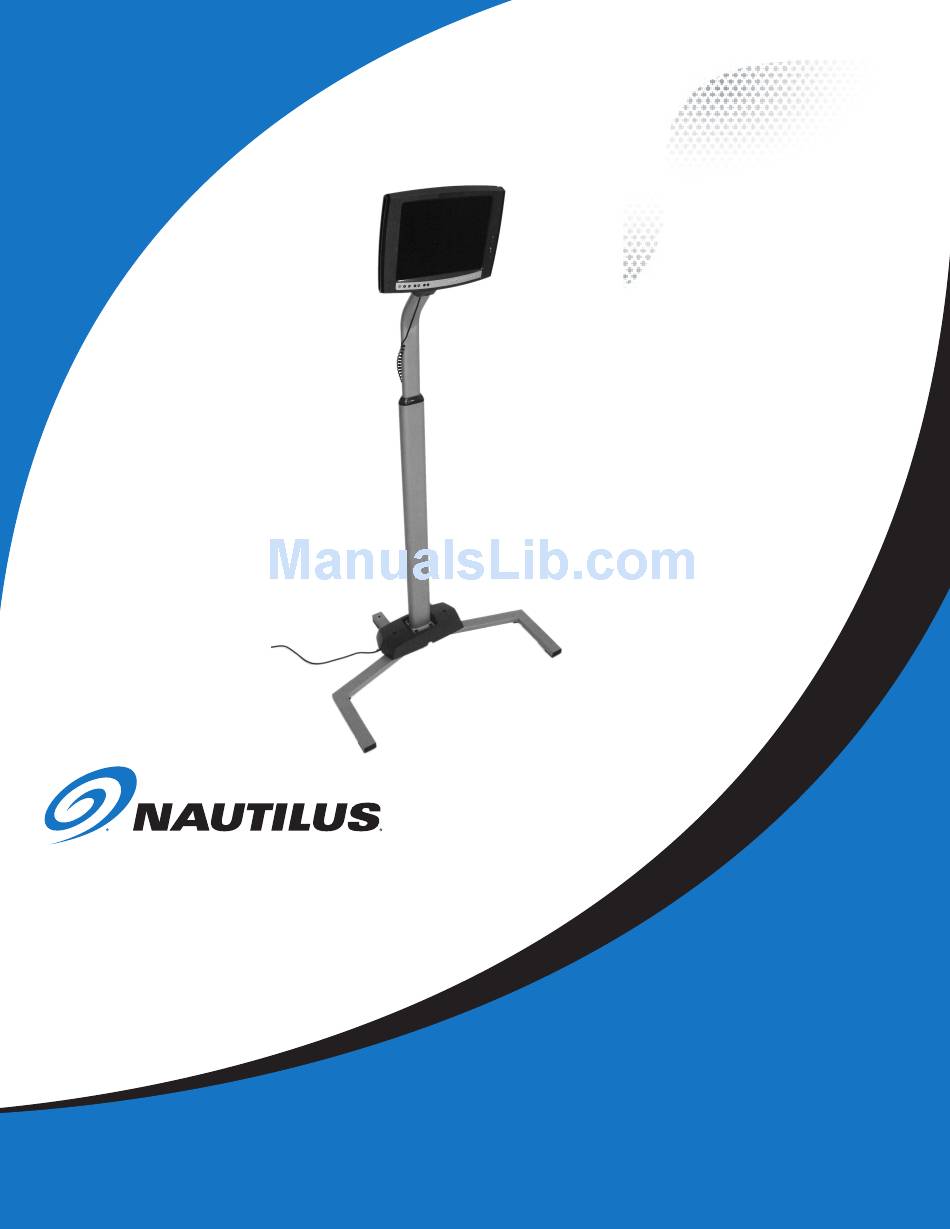

  • Page 1 Be Strong. ™ NV 915 LCD TV Stand Assembly Manual Model: NV 915 P/N: 001-2036 Rev B ( 08/13/2007 )

  • Page 2: Table Of Contents

    Table of Contents Safety Precautions Product Specifications Components & Tools Needed Assembly Important Contact Information...

  • Page 3: Safety Precautions

    Important Safety Precautions To reduce the risk of fire, electrical shock or ImPorTANT! other injuries, follow these safety precautions when installing, using and maintaining your Save these instructions NV915. Read all instructions before using. This symbol appearing throughout this manual means: W A R N I N G Pay Attention! Be Alert! Your Safety Is Involved! W A R N I N G...

  • Page 4: Product Specifications

    For Customers in the European Union, Do not dispose of this product as refuse. This product is to be recycled. For information on the proper method of disposal contact a Nautilus Customer Service representative. Contact information is available in the Important Contact Numbers section in this manual.

  • Page 5: Components & Tools Needed

    Components & Tools Please make sure the following items are included with your order. If any items are missing, please contact Customer Service. Hardware Kit Upper Shroud Lower Shroud 001-2035 001-1860 001-1859 Locking Collar Base Base Shroud 001- 1847 001- 1935 001- 1953 Wire Harness Lower Mast...

  • Page 6: Assembly

    Assembly Procedure Step 1 Attach the Base Feet to the Base. Tools Needed: • 6mm Allen Wrench Parts Needed: • Base Figure A • Base Foot A Narrow Configuration • Base Foot B NOTE: There are two possible assembly configurations for the TV Stand.
  • Page 7 Assembly Procedure Step 2 Attach Lower Mast to Base Assembly Lower Mast Tools Needed: • 6mm Allen Wrench Parts Needed: • Lower mast 2-1 Align the Lower mast with the holes in the Base Assembly. Base Assembly make sure the wide flat side of the Upright is facing the front of the Base Assembly.
  • Page 8 Assembly Procedure Step 3 Slide Base Shroud onto the Lower Mast Parts Needed: • Base Shroud 3-1 Slide the Base Shroud onto the Lower mast but do not secure it to the Base at this time. Lower Mast Step 4 Slide the Locking Collar onto the Upper Mast Warning Sticker Parts Needed: Locking Collar...
  • Page 9 Assembly Procedure Step 5 Insert Upper Mast into Lower Mast Tools Needed: • 5mm Allen Wrench Parts Needed: • Upper mast 5-1 Slide the Upper mast and Locking Collar into the Lower mast with the warning sticker on the Upper mast and the Locking Collar Clamp toward the back of the stand. (Figure A) Note: The Locking Collar will fit very tightly into the Lower mast.
  • Page 10 Assembly Procedure End “B” Step 6 Route the Wires through the Mast End “A” Parts Needed: • Wire Harness Note: The Wires have different terminations at each end. make sure you insert end “A” (Figure A) into the mast. Figure End “A”...
  • Page 11 Assembly Procedure Step 7 Prepare to attach the LCD Monitor Tools Needed: • Phillips Head Screwdriver 7-1 Use a Phillips Head Screwdriver to remove the Back Cover of the LCD monitor. Back Cover LCD TV Stand Assembly Guide...

  • Page 12: Installation Procedure

    Installation Procedure Step 8 Attach LCD Monitor Tools Needed: • 6mm Allen Wrench 8-1 Position the LCD monitor on the mast (Figure A) with the metal Tabs resting between the upright prongs. (Detail A) 8-2 Install the m10 Allen Bolts and Lock Washers from the hardware kit. Note: The monitor has a 30º...
  • Page 13 Installation Procedure Step 9 Connect Wires to Monitor The connections shown are for Pre Wired units with Coaxial and power connections only. For alternative configurations please refer to the LCD monitor owners manual. IMPORTANT! You must wire tie the Power Wire to the LCD Bracket to avoid accidental disconnection.
  • Page 14 Installation Procedure Step 10 Install Upper and lower Shroud Tools Needed: • Phillips Head Screwdriver Lower Shroud Parts Needed: • Upper & Lower Shroud 10-1 Use two Phillips Head Screws, Washers and Lock Washers from the hardware kit to attach the Lower Shroud to the mast just below the LCD monitor.
  • Page 15 Installation Procedure Step 12 Connect the Power Wire Parts Needed: • Power wire (from LCD Kit) 12-1 Connect the Power Wire to the Wire Harness. 12-2 Tuck the Wire Harness and Power Brick into the Base but leave about 6” of the Coaxial Cable exposed.
  • Page 16 Installation Procedure Step 14 Connect Wireless Remote Parts Needed: • Wireless remote (from Wired remote Kit) 14-1 Plug the free end of the Wired remote wire into the Wired remote. Note: The Wired remote will be secured to the piece of fitness equipment using two zip-ties after stand is in place in front of the equipment .

  • Page 17: Important Contact Information

    IMporTAnT ConTACT nuMberS If you need assistance, please have both the serial number of your machine and the date of purchase available when you contact the appropriate Nautilus office listed below. OFFICES IN THE UNITED STATES: INTERNATIONAL OFFICES: e-mail: cstech@nautilus.com For technical assistance and a list of distributors in your area, please call or fax one of the following numbers.
  • Page 18 , visit www.nautilusinc.com. © 2007 nautilus, Inc. All rights reserved. nautilus, the nautilus logo, and be Strong are either registered trademarks or trademarks of nautilus, Inc. All other marks are either registered trademarks or trademarks of their respective companies.
