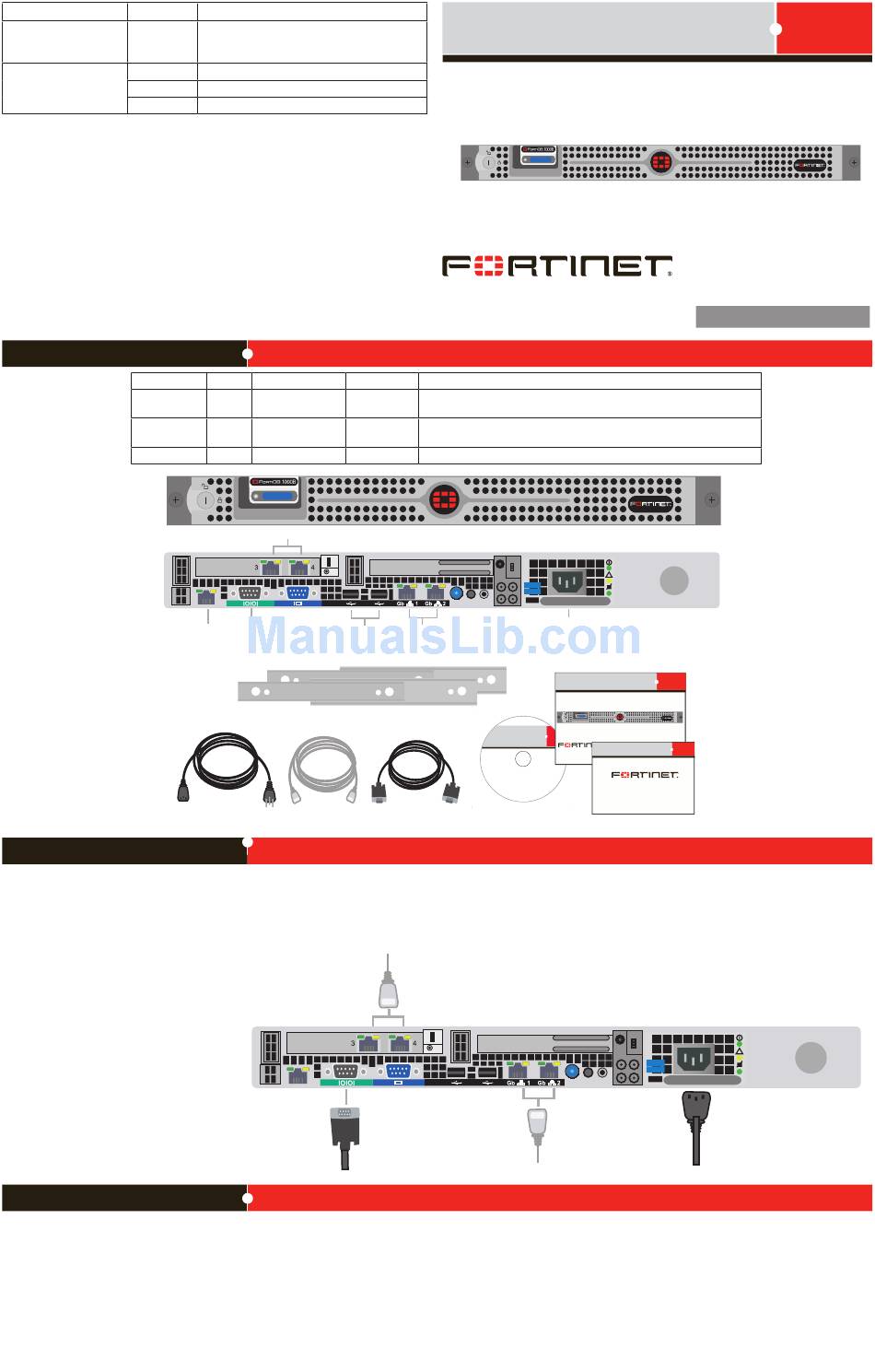

Fortinet FortiDB-1000B Quick Start Manual

LED State
Green
Ports 1 to 4 Left LED
Flashing
Ports 1 to 4 Right LED
Green
Yellow
Visit these links for more information and documentation for your Fortinet product.
• Technical Documentation - http://docs.forticare.com
• Fortinet Knowledge Center - http://kc.forticare.com
• Fortinet Technical Support - http://support.fortinet.com
Package Contents
Connector
Ports 1 to 4
CONSOLE
USB
For future
Connecting
Connect the following to the FortiDB unit. Ensure the FortiDB unit is placed on a stable surface or install in a standard 19 inch rack.
See the FortiDB-1000B Rack Installation Guide for details.
• Insert one end of a an Ethernet cable into port 1.
• Connect the other end of the Ethernet cable to the network hub or switch.
• Connect the AC Power cable to the Power Supply on the back of the
FortiDB unit.
• Connect the other end of the Power cable to a surge protected
power bar or power supply.
Configuration Tools
Web-based manager
The FortiDB web-based manager is an easy-to-use management tool.
Use it to configure the administrator password, the interface and default gateway addresses,
and configure reports.
Requirements:
• An Ethernet connection between the FortiDB unit and management computer.
• A web browser such as FireFox or Internet Explorer on the management computer.
Description
The correct cable is connected to the copper
10/100/1000 interface and the connected equip-
ment has power.
Network activity at this interface.
The interface is connected at 1000 Mbps.
The interface is connected at 100 Mbps.
Type Speed Protocol
RJ-45 10/100/1000 Ethernet
Base-T
DB-9 9600 8/N/1 RS-232 serial Optional connection to the management computer. Provides access to
USB USB
Ethernet ports
Console USB
use connection
2 Mounting Slide Rails
Power Cable
Straight-through
Ethernet cable
QuickStart Guide
© Copyright 2008 Fortinet Incorporated. All rights reserved.
Products mentioned in this document are trademarks or registered trademarks
of their respective holders.
Regulatory Compliance
FCC Class B Part 15 CSA/CUS
30 September 2008
Description
Copper gigabit connection to 10/100/1000 copper networks.
the command line interface (CLI).
Optional connection to a USB key for firmware backup and installation.
Ethernet
ports
Tools and Documenation
Null-Modem Cable
(RS-232)
Ethernet cables connect to
the internal network and to
the Internet (public switch
or router)
Null modem
cable connects to serial
port on management
computer
Command Line Interface (CLI)
The CLI is a full-featured management tool. Use it to configure the administrator password,
the interface addresses, the default gateway address, and the DNS server addresses. To
configure advanced settings, see the Tools and Documentation CD included with the
FortiDB unit.
Requirements:
• The DB9 serial connection between the FortiDB unit and management
computer.
• A terminal-emulation application such as HyperTerminal for Windows, on the manage-
ment computer.
R
Power supply
QuickStart Guide
FortiGate-30B
R
Copyright 2008 Fortinet Incorporated. All rights reserved.
Trademarks
Products mentioned in this document are trademarks.
Welcome | Bienvenue | Willkommen | ?迎 | 歓迎 | Bienvenido | Benvenuto
Ethernet cables connect to
the internal network and to
the Internet (public switch
or router)
FortiDB-1000B
R
15-31000-78779-20080930
Power cable
connects to
power supply
