PTAC HYDRONIC HEAT KIT
DESCRIPTION
The PTAC Hydronic Kit is an enclosure kit that provides
complete coverage of all PTAC plumbing and coils while still
allowing access to controls. The kit can only be installed
where there is a central boiler for heating the water. It does
not affect unit heating and cooling operations. The hydronic
kit chassis slides out for service without removing any
hydronic plumbing. The electrical connections are plug-in
type to assist in kit installation.
NOTE:
Heat pump models will operate on heat pump
function down to the switchover temperature before operat-
ing on hydronic heat.
Freeze Protection
For PTAC Hydronic Coil freeze protection on hot water
systems, the hydronic system should use an antifreeze

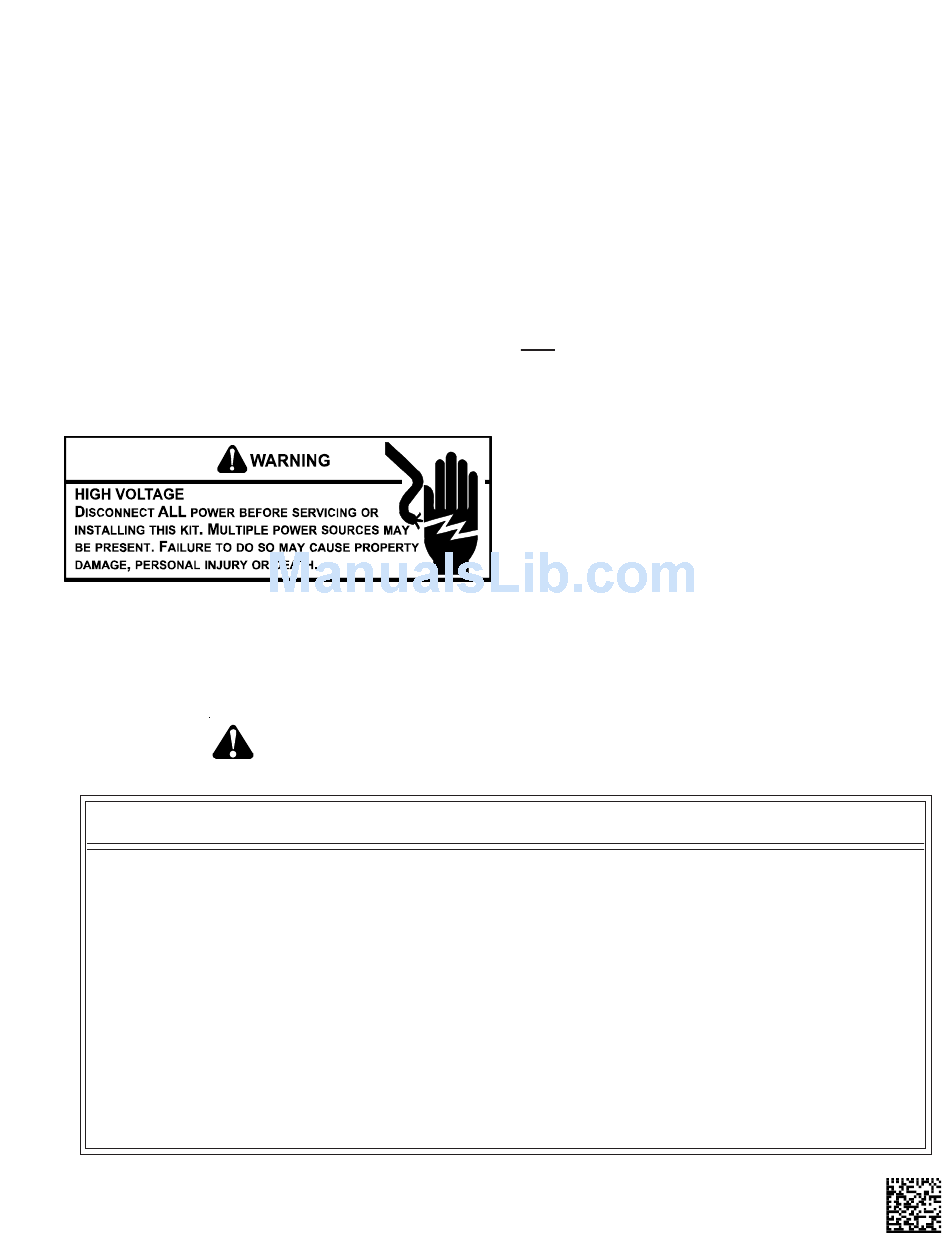

ATTENTION INSTALLING PERSONNEL
As a professional installer you have an obligation to know the product better than the customer. This
Prior to actual installation, thoroughly familiarize yourself with this Instruction Manual. Pay special attention
to all safety warnings. Often during installation or repair it is possible to place yourself in a position which is
Remember, it is your responsibility to install the product safely and to know it well enough to be able to
Safety is a matter of common sense...a matter of thinking before acting. Most dealers have a list of specific
The precautions listed in this Installation Manual are intended as supplemental to existing practices.
However, if there is a direct conflict between existing practices and the content of this manual, the
IO-386B
February 2011
HVK03E
I
NSTALLATION
RECOGNIZE THIS SYMBOL AS A SAFETY PRECAUTION.
includes all safety precautions and related items.
more hazardous than when the unit is in operation.
instruct a customer in its safe use.
good safety practices...follow them.
precautions listed here take precedence.
Goodman Company, L.P.
5151 San Felipe, Suite 500 • Houston, TX 77056
www.amana-ptac.com
© 2010 - 2011 Goodman Company, L.P.
HWK03E
AND
I
NSTRUCTIONS
solution. However, the addition of antifreeze will reduce the
capacity of the hydronic coil and affect system sizing. The
higher the antifreeze concentration, the greater the capacity
reduction. Therefore, for optimum unit performance, only use
an antifreeze concentration that will protect to the lowest
ambient temperature expected. A 20% solution will protect
to approximately 15°F. A 50% solution protect to -35°F.
Use an antifreeze that is formulated for hydronic use. DO
NOT USE AUTOMOTIVE OR PETROLEUM BASED PROD-
UCTS.
Tools Required
1/4 Inch Electric Drill
1/8 Inch Diameter Drill Bit
Center Punch and Hammer
6 Foot Rule
Combination Square
1/4 Inch Nut Driver or Socket
5/16 Inch Nut Driver or Socket
Torch, Solder, Flux, etc.

Advertisement

Table of Contents
loading

Summary of Contents for Amana HVK03E

  • Page 1 PTAC HYDRONIC HEAT KIT HVK03E HWK03E NSTALLATION NSTRUCTIONS DESCRIPTION solution. However, the addition of antifreeze will reduce the The PTAC Hydronic Kit is an enclosure kit that provides capacity of the hydronic coil and affect system sizing. The complete coverage of all PTAC plumbing and coils while still higher the antifreeze concentration, the greater the capacity allowing access to controls.
  • Page 2: Installation

    JOB PREPARATION Before installing the hydronic kit, determine the following: • Whether a 2-way or 3-way normally open or normally closed valve is required. • If an end switch is required to control the circulating pump. (Information relating to U.L. approved valves and current loads is shown on the kit label and is repeated in the following figure).
  • Page 3 1/2-inch #10 supplied screws. screws. (Figure 5) On HVK03E Hydronic Steam Kits, do not use 1/4 inch head, 3/8 inch long, #8 screws to attach the left support bracket to the hydronic top. Use the provided two 5/16 inch painted head, 1/4 inch long, #8 screws in place of these longer screws.
  • Page 4 Hydronic Front (Inside Surface) 3/8" #8 Screws Basepan (Two On Each Side) Figure 9 D = 1/2" to 3-3/4" . Remove the six screws from the top of the hydronic top. Lift the hydronic top straight up and set aside along with Floor the six screws (Figure 10).
  • Page 5 For normally closed valves, connect the BL chassis harness wire to the second BK wire from the valve. 15. Cut either the YL or BL wire that is not being used at the plastic male connector on the control panel. TWO-WAY VALVE INSTALLATION When installing two-way valves, the flow direction is from end “B”...
  • Page 6 Hydronic steam kits not require any additional configuration and is fully operable. (HVK03E) can only have entering steam on the right side To configure the unit, first select the configuration feature of the coil.
  • Page 7: Configuration Settings

    CONFIGURATION SETTINGS Configuration Code Description Option Code Description Interface Chassis Membrane* Wireless Remote Wired Thermostat Fan Operation Button present 7-Button, reverts to Cyclic Always run fan (even in Off) 7-Button, reverts to Continuous Reverse Cycle Operation Cooler Only Heat Pump* Service No Operation "Eo"...
  • Page 8 NOTE: If the unit will be controlled by a wireless thermostat TO SET THE PTAC CONTROL FOR A 4-DIGIT ROOM (Goodman DS01E using DT01A antenna on the NUMBER WIRED THERMOSTAT. unit), the board may have to be configured to allow the wireless thermostat to operate the unit.
  • Page 9: Front View

    Steam Plumbing Dimensions 5-1/2" PTAC UNIT WALL SLEEVE 1-7/8" 3-1/4" 3-1/4" (2 places) 1-7/8" 3-1/2" 13-3/8" 5-3/4" COIL 2-1/4" (2 places) 1" x 1-1/2" TOP VIEW OF COIL LOCATION opening for piping (with top grille and sheet metal removed) 1" diameter opening for piping 1/2"...
  • Page 10 Hot Water Plumbing Dimensions 5-1/2" 3-1/4" 3-1/4" 3- 3 / 8 " 1-13/16" 1-13/16" 3-3/8" 1' 1-5/8" 2-5/16" 1-1/16" 1" 1/2" I.D. 5/8" O.D. COIL COIL 2-3/4" 4-3/4" 1/2" I.D. 5/8" O.D. 2-1/8" 1" 4' 5" 0" to 3" Finish Finished Floor Figure 19...
  • Page 11: Heating Capacity

    PTAC HYDRONIC KIT SPECIFICATIONS Heating Capacity Hydronic Heat Kit Application Data Heating Capacity (Btuh)- Hot Water 9000, 12000 & 15000 BTUH Units Pressure 7000 BTUH Units Gal. Drop (psig) 200° F. EWT 180° F. EWT 200° F. EWT 180° F. EWT Fan Speed Min.
  • Page 12: Water Valve Pressure Drop

    Maytag Corporation or its related companies and is used under license to Goodman Company, L.P., Houston, TX. All rights reserved. Goodman Company, L.P. 5151 San Felipe, Suite 500 • Houston, TX 77056 www.amana-ptac.com © 2010 - 2011 Goodman Company, L.P.
