SINGLE PACKAGE VERTICAL R-410A
PACKAGE AIR CONDITIONER/HEAT PUMP
I
NSTALLATION
VTC/VTH SERIES

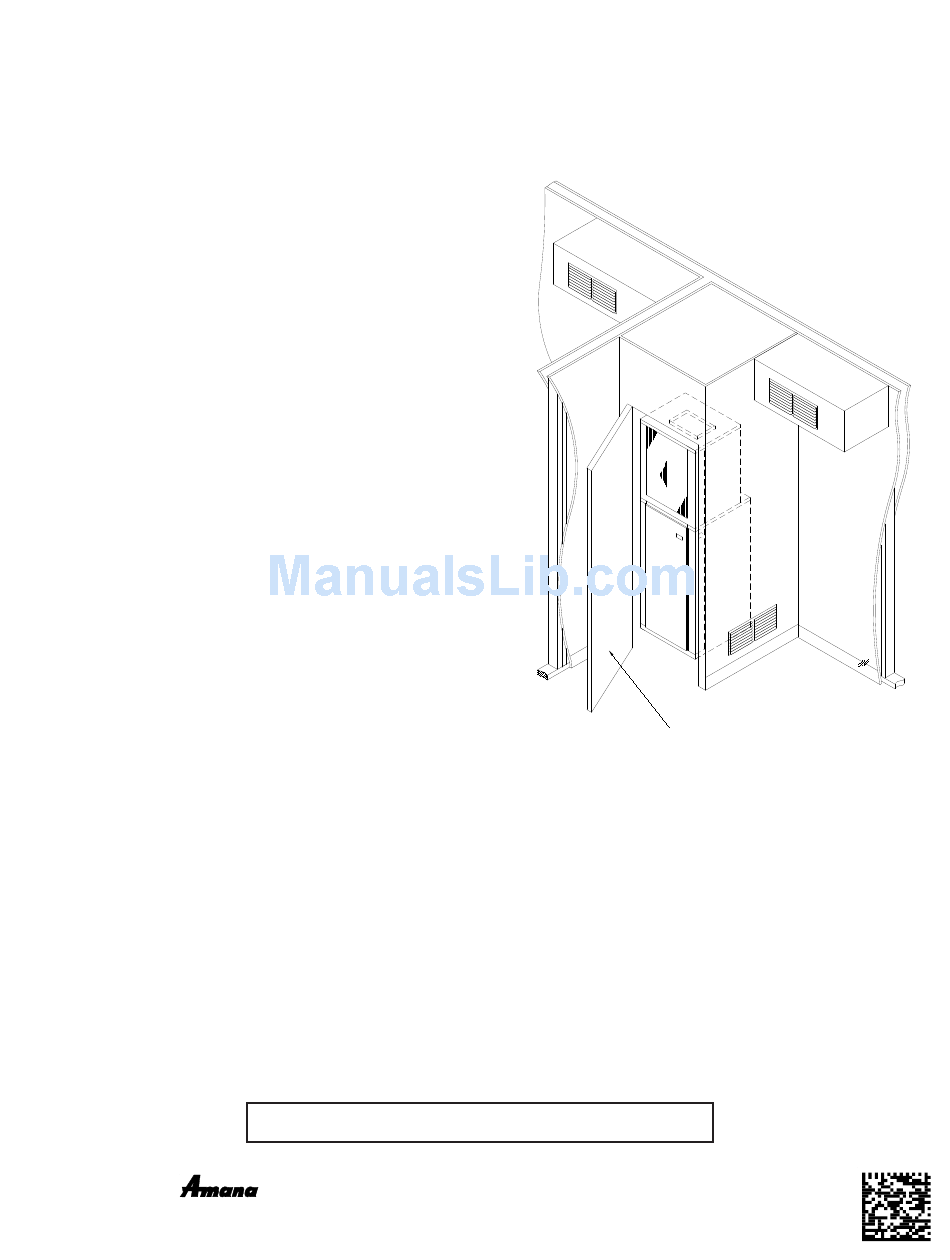

The Single Package Vertical Unit is a compact, through the
wall packaged HVAC system that can be ducted to individual
rooms. It's slim 20" wide design uses minimal floor space and
installs in a closet having an exterior wall. Conditioned air
from a single unit can be ducted to multiple rooms. Each unit
is controlled by a standard wall thermostat.
These instructions give information relative to the SPVU unit
only. Refer to Wall Sleeve and Grille installation instructions
for those components. The manufacturer assumes no respon-
sibility for equipment installed in violation of any code
requirements. For other related equipment refer to the
proper instructions.
ATTENTION INSTALLING PERSONNEL
As a professional installer you have an obligation to know the
product better than the customer. This includes all safety pre-
cautions and related items.
Prior to actual installation, thoroughly familiarize yourself with
this Instruction Manual. Pay special attention to all safety warn-
ings.
Often during installation or repair it is possible to place yourself
in a position which is more hazardous than when the unit is in
operation.
IO-381
March 2010
I
NSTRUCTIONS
This manual must be left with the owner of the equipment.
is a registered trademark of Maytag Corporation or its related companies and is used under
®
license to Goodman Company, L.P., Houston, TX. All rights reserved.
© 2010 Goodman Company, L.P.
& O
WNER
Remember, it is your responsibility to install the product safely
and to know it well enough to be able to instruct a customer in
its safe use.
Safety is a matter of common sense...a matter of thinking before
acting. Most dealers have a list of specific good safety
practices...follow them.
The precautions listed in this Installation Manual are intended as
supplemental to existing practices. However, if there is a direct
conflict between existing practices and the content of this manual,
the precautions listed here take precedence.
'
M
S
ANUAL
