Amana R-410A Technical Manual
Pbc/pbe/pbh through-the-wall air conditioners & heat pumps
Hide thumbs
Also See for R-410A:
- User's information manual (10 pages) ,
- Technical manual (16 pages) ,
- Installation instructions & owner's manual (8 pages)
Advertisement

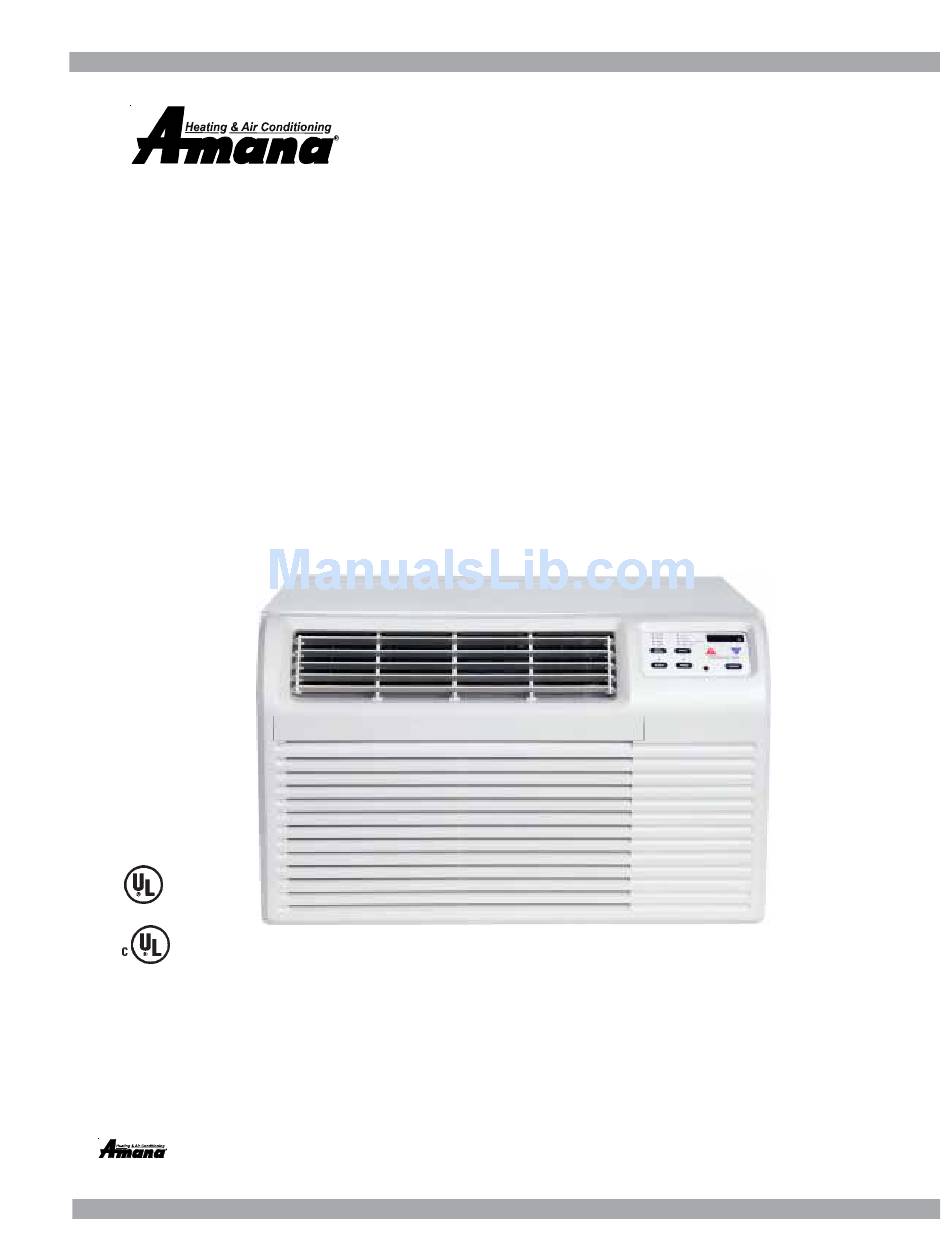

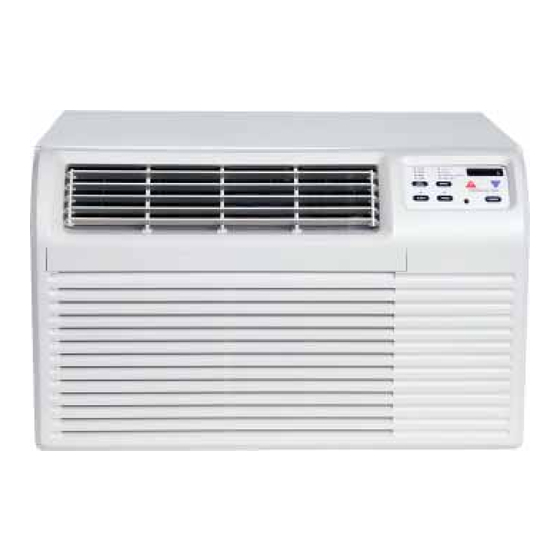

Through-The-Wall R-410A
Air Conditioners & Heat Pumps
•
•
•
This manual is to be used by qualified, professionally trained HVAC technicians only. Goodman does
not assume any responsibility for property damage or personal injury due to improper service
procedures or services performed by an unqualified person.
is a registered trademark of Maytag Corporation or its related companies and is used under license to Goodman Company, L.P., Houston, TX. All rights reserved.
TECHNICAL MANU
TECHNICAL MANU
TECHNICAL MANU AL
TECHNICAL MANU
TECHNICAL MANU
PBC/PBE/PBH
All safety information must be followed
See Installation instructions for more safety precautions.
Refer to the appropriate Parts Catalog for part number information.
Models listed on page 3.
Copyright © 2010 Goodman Company, L.P.
AL
AL
AL
AL
RT4271001
May 2010
Advertisement
Table of Contents
Related Manuals for Amana R-410A
Summary of Contents for Amana R-410A
- Page 1 TECHNICAL MANU TECHNICAL MANU TECHNICAL MANU AL TECHNICAL MANU TECHNICAL MANU PBC/PBE/PBH Through-The-Wall R-410A Air Conditioners & Heat Pumps • All safety information must be followed See Installation instructions for more safety precautions. • Refer to the appropriate Parts Catalog for part number information.
-
Page 2: Product Identification
A = R-22 E = R-410A FEATURE CODE MA = St a ndard Model R-22 HEATER SIZE AX = Standard Model R-410A 00 = no electric heat 35 = 3.5 kw (230/208V) Use up to 4 as needed In alphabetical order... - Page 3 PRODUCT IDENTIFICATION The model number is used for positive identification of component parts used in manufacturing. Please use this number when requesting service or parts information. PBC092E00AX PBC122E00AX PBC093E00AX PBC123E00AX PBE093E35AX PBE123E35AX PBH092E12AX PBH093E35AX PBH113E35AX HIGH VOLTAGE! DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS UNIT.
-
Page 4: Product Design
The provided filter must be installed and under no circum- consumer information line toll-free at 1-877-376-0214 (U.S. stances should the unit be operated without the filter in place. and Canada only). If your problem cannot be resolved by phone, contact an authorized Amana brand servicer. ® Location and Clearances Contact and service will be at your expense. -
Page 5: Specifications
SPECIFICATIONS PBC***E00AX MODEL PBC092E00AX PBC122E00AX PBC093E00AX PBC123E00AX 9200 11800 Cooling (BTU's) 9200 11800 8900 11400 @ EER Cooling Watts 1260 940 - 910 1200 - 1160 Cooling Amps 11.6 4.4 - 4.7 5.6 - 6.0 Voltage 230 -208 230 -208 Plug Type Parallel Parallel... - Page 6 SPECIFICATIONS PBE***E00AX MODEL PBE093E35AX PBE123E35AX 9200 11800 Cooling (BTU's) 8900 11400 @ EER Cooling Watts 940 - 910 1200 - 1160 Cooling Amps 4.4 - 4.7 5.6 - 6.0 Electric Heat 11000 - 9000 11000 - 9000 Electric Heat Watts 3500 - 2900 3500 - 2900 Electric Heat Amps...
- Page 7 SPECIFICATIONS PBH***E00AX MODEL PBH092E12AX PBH093E35AX PBH113E35AX 9000 11500 Cooling (BTU's) 9000 8700 11100 @ EER Cooling Watts 960 - 930 1220 - 1180 Cooling Amps 4.5 - 4.8 5.7 - 6.2 Electric Heat 3900 11000 - 9000 11000 - 9000 Electric Heat Watts 1150 3500 - 2900...
-
Page 8: Performance Data
PERFORMANCE DATA PBC***E00AX PBC123 PBC093... - Page 9 PERFORMANCE DATA PBC***E00AX PBC123 PBC093...
- Page 10 PERFORMANCE DATA PBE***E00AX PBE123 PBE092...
- Page 11 PERFORMANCE DATA PBE***E00AX PBE123 PBE093...
- Page 12 PERFORMANCE DATA PBH***E00AX PBH092...
- Page 13 PERFORMANCE DATA PBH***E00AX PBH123 PBH093...
- Page 14 PERFORMANCE DATA PBH***E00AX PBH123 PBH093...
-
Page 15: Wiring Diagrams
WIRING DIAGRAMS PBC***E00AX HIGH VOLTAGE! DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH. Wiring is subject to change, always refer to the wiring diagram on the unit for the most up-to-date wiring. - Page 16 WIRING DIAGRAMS PBE***E35AX HIGH VOLTAGE! DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS WARNING UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH. Wiring is subject to change, always refer to the wiring diagram on the unit for the most up-to-date wiring.
- Page 17 WIRING DIAGRAMS PBH***E35AX HIGH VOLTAGE! DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH. Wiring is subject to change, always refer to the wiring diagram on the unit for the most up-to-date wiring.
-
Page 18: Troubleshooting
TROUBLESHOOTING CODE STATUS...
