Page 1

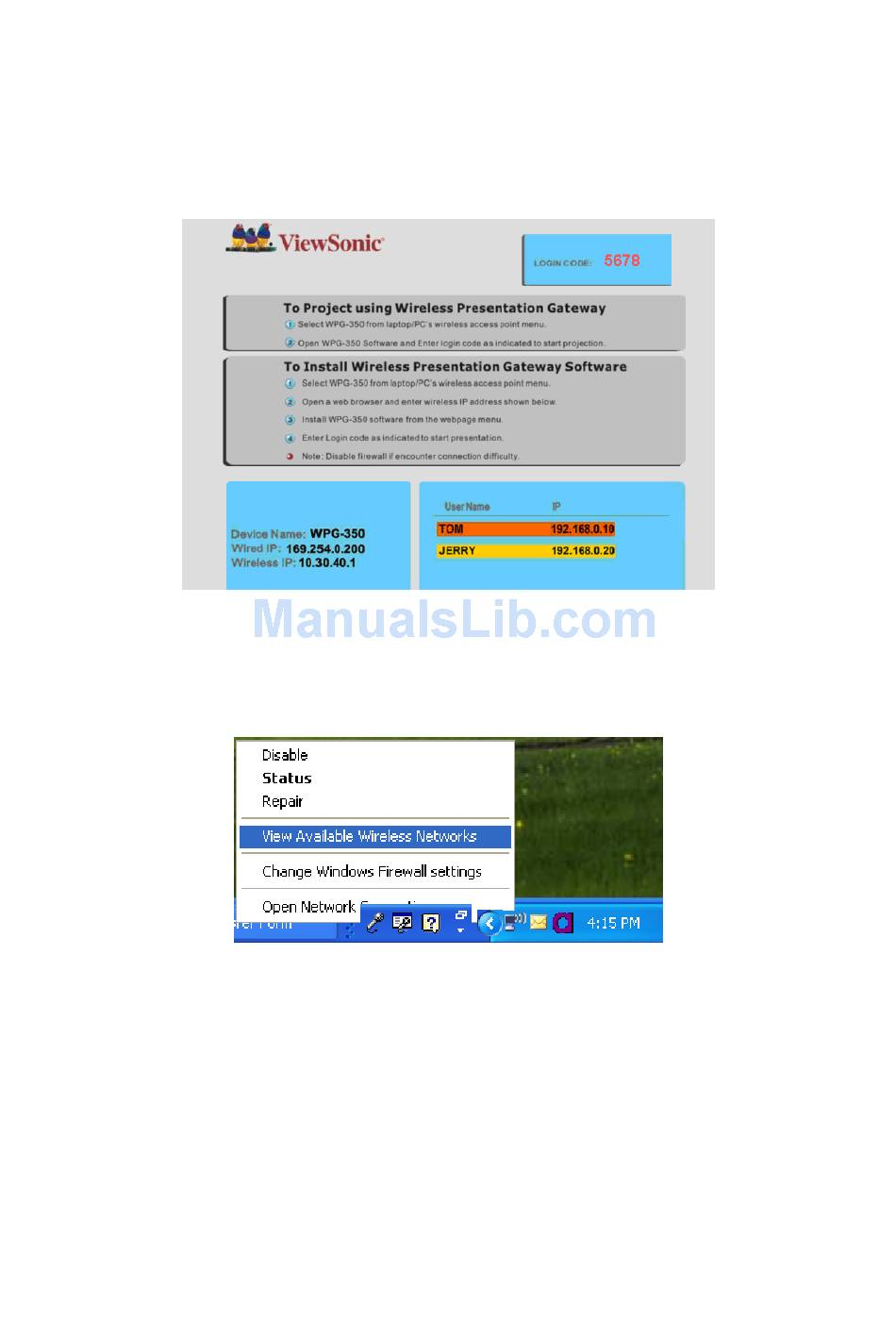

WPG-350 Utility software installation – Windows XP Boot up the device and the instruction page (startup page) will display on the monitor. Figure 1 2. Hover mouse pointer over Wireless Connection icon located in the Tray area. Right click to display the menu and left click View Available Wireless Networks.
Page 2
3. Select WPG-350 Wireless Network Connection and click Connect button (see figure 3). Connection will show an exclamation - this is ok. Figure 3 4. In the web browser address field enter “10.30.40.1” and press enter. 5. Click “For Windows” button to download utility program from WPG-350.
Page 3
6. Click Run button to download and install utility. Figure 5 7. Click Run button to confirm Security Warning. Figure 6 8. Click Next to begin Setup Wizard installation. Figure 7...
Page 4
9. Select “Everyone” and click Next to continue. Figure 8 10. Click Next to confirm Installation. Figure 9...
Page 5
11. Click Close to complete installation. Figure 10 12. Click the icon titled WPG-350 to run Utility program. Figure 11...
