C:\American Fab\Manuals\Manual Pr Washer.p65
®
P.O. Box 791 • Traveler s Rest, SC 29690 • Phone: (864) 834-7212 • Fax: (864) 834-5127
Ser vice/Replacement Par ts: (800) 845-4141 • www.titanindustrial.net
OWNER'S MANUAL
MODEL TPW-2200
COMMERCIAL PRESSURE WASHER
The Emission Control System for this compressor is warranted for standards set by the Environment Protection Agency.
IMPORTANT!
It is extremely important to read and understand the entire contents of
this Owner's Manual for the Titan Industrial Commercial Model TPW-
2200 before attempting to operate the pressure washer. This is a
gasoline engine powered, commercial strength, washer. The gaso-
line engine and the pressure washer are both potentially hazardous
and could cause physical injury or even death if improperly used.
WARNING!
Do Not Operate Equipment until reading & understanding Owner's Manual!
Revision # 030321A
TPW2200 Titan Industrial Motor Manual
Advertisement
Table of Contents
Related Manuals for Titan TPW-2200
Summary of Contents for Titan TPW-2200
- Page 1 IMPORTANT! It is extremely important to read and understand the entire contents of this Owner’s Manual for the Titan Industrial Commercial Model TPW- 2200 before attempting to operate the pressure washer. This is a gasoline engine powered, commercial strength, washer. The gaso- line engine and the pressure washer are both potentially hazardous and could cause physical injury or even death if improperly used.
-
Page 2: Safety Guidelines

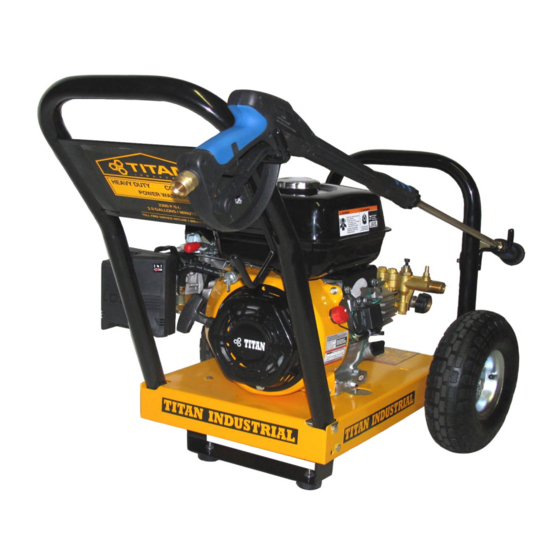

! DESCRIPTION Your Titan industrial Commercial Pressure Washer, Model TPW-2200 is a gasoline operated device that converts a water source flow into extremely high pressure. The unit is portable and mobile. The gasoline engine makes it possible to use the unit in remote areas that are void of electrical power if needed. -
Page 3: Overview
SAFETY GUIDELINES GENERAL SAFETY GENERAL SAFETY H. Inspect the entire system for leakage, weaknesses, dam- The following safety precautions must be observed at all age or deterioration before each use. times because the pressure washer and components make up a high pressure system. I. -
Page 4: Assembly And Operation
ASSEMBLY & OPERATION OPERATION OPERATION WARNING HANDLE UNPACKING The handle is provided to move the pressure Inspect your pressure washer carefully for any washer. damage that may have occurred during transit. Be sure to inspect and tighten all bolts, screws, START-UP and fittings before attempting to start the unit. -
Page 5: Maintenance
MOST FREQUENTLY ASKED QUESTIONS WHAT KIND OF OIL SHOULD I USE? WHAT SOAPS OR CHEMICALS CAN I USE? The pump requires pressure washer pump non-deter- Only products designed for pressure washer use. Do gent oil. Use 30W non-detergent oil in the engine. not use caustic materials. -
Page 6: Soap Application Overview
Soap application To activate your Titan Pressure Washer for cleaning purposes you must have your unit in the Low postion. Low position is obtained by first locating the discharge cap (see figure #1). On the discharge cap there is an arrow that has two settings on it, low and high. Set your discharge cap to the low position and you are ready for soap appliction. -
Page 16: Specification
Titan Industrial ® Commercial Pressure Washer TPW 2200 Pump P S I G a llo n s P e r M in u t e S o a p P ic k u p 2 2 0 0 P S I @ 3 5 0 0 R P M 2 .5 G a llo n s /M in u te @ 3 0 # I n le t...
