High Pressure

Cleaner 1800W
TTB669PRW
Barcode: 5052931516438
Ref. No.: 5014J
WARNING: Read the instructions before using the product!
MNL_TTB669PRW_TIT_GB_V03_150818.indd 1
8/18/15 4:16 PM

Advertisement

Table of Contents
loading

Related Manuals for Titan TTB669PRW

Summary of Contents for Titan TTB669PRW

  • Page 1: High Pressure

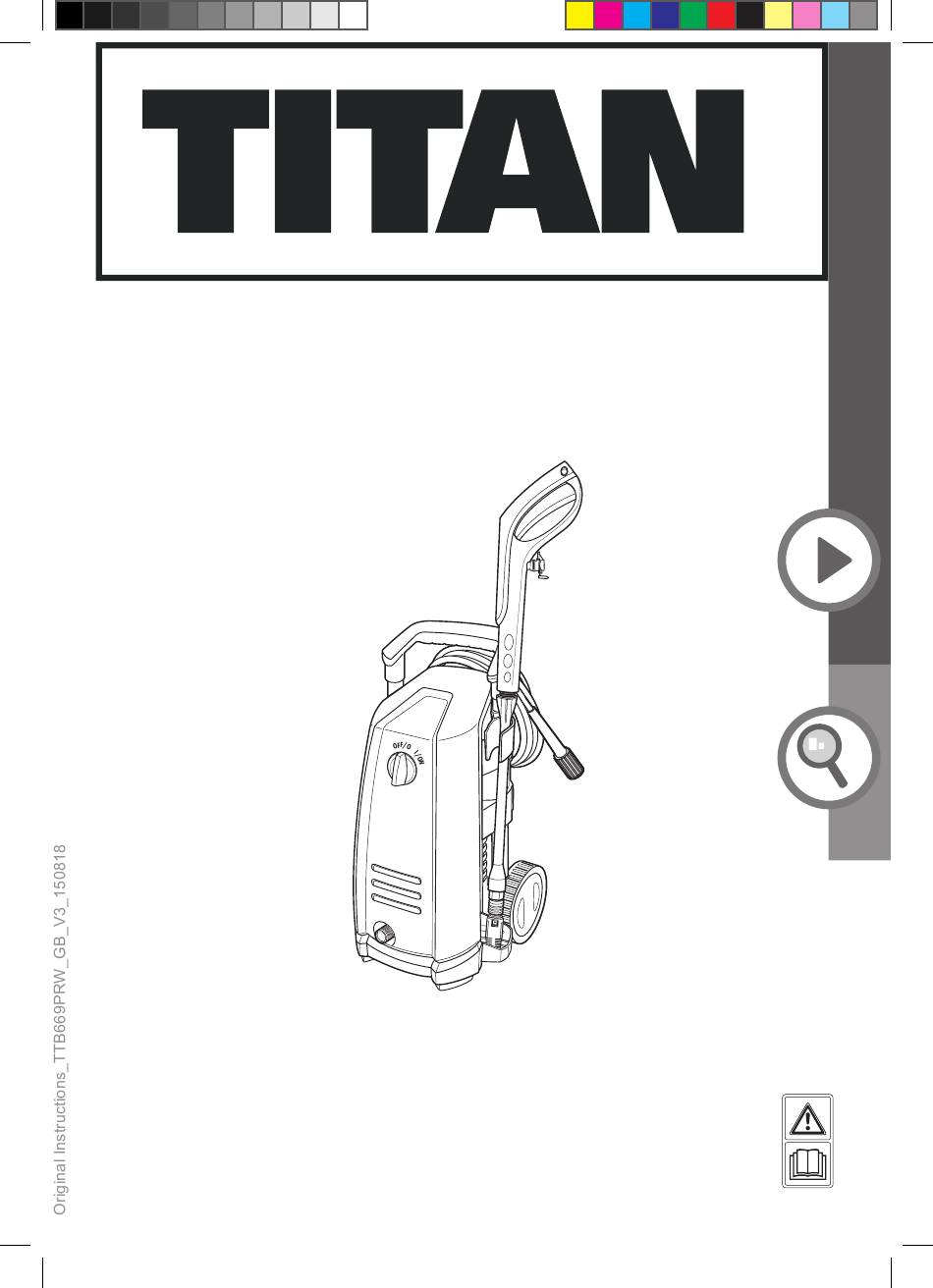

    High Pressure Cleaner 1800W TTB669PRW Barcode: 5052931516438 Ref. No.: 5014J WARNING: Read the instructions before using the product! MNL_TTB669PRW_TIT_GB_V03_150818.indd 1 8/18/15 4:16 PM...
  • Page 2 - Loss of use of the goods This guarantee does not affect your statutory rights. This guarantee is only valid in the UK. For any enquiries relating to the guarantee please refer to your retailer. High Pressure Cleaner 1800W - TTB669PRW MNL_TTB669PRW_TIT_GB_V03_150818.indd 2 8/18/15 4:16 PM...

  • Page 3: Table Of Contents

    Let’s get started These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. started... Getting Safety information Your product Before you start detail... more Product functions Operation Care and maintenance Troubleshooting Recycling and disposal EC declaration of conformity MNL_TTB669PRW_TIT_GB_V03_150818.indd 3...

  • Page 4: Safety Information

    Safety information TTB669PRW by TITAN Safety warnings >Product shall not be used by children. Children should be supervised to ensure that they do not play with the product. >This product can be used by people with reduced physical, sensory or mental capabilities or lack of...
  • Page 5 TTB669PRW by TITAN Safety information >WARNING: Do not direct the jet against yourself or others in order to clean clothes or foot-wear. >WARNING: Risk of explosion – Do not spray flammable liquids. >WARNING: This product shall not be used by children or untrained personnel.
  • Page 6 Safety information TTB669PRW by TITAN Safety warnings >WARNING: Inadequate extension cords can be dangerous. If an extension cord is used, it shall be suitable for outdoor use, and the connection has to be kept dry and off the ground. The plug and socket must be of watertight construction.
  • Page 7 TTB669PRW by TITAN Safety information >Never leave the product unattended when it is connected to the power supply. >Never move the product by pulling on the electrical power cord. >Do not allow vehicles to drive over the pressure hose. >Do not move the product by pulling on the pressure hose.

  • Page 8: Maintenance And Storage

    Safety information TTB669PRW by TITAN Safety warnings >Use only detergents compatible with the high pressure hose / electrical power cord cladding materials. >Use only authorised electrical extension cords with suitable conductor gauge. Maintenance and storage >Disconnect the product from the power supply and check for damage after use.
  • Page 9 TTB669PRW by TITAN Safety information >Keep tight grip on the handles/grip surface. >Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate). >Plan your work schedule to spread any high vibration tool use across a longer period of time.
  • Page 10 Safety information TTB669PRW by TITAN Safety warnings WARNING! This product produces electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their...
  • Page 11 TTB669PRW by TITAN Safety information Wear eye protection. Wear protective gloves. Wear protective, slip- resistant footwear. Switch the product off and disconnect it from the power supply before assembly, cleaning, adjustments, maintenance, storage and transportation. Do not expose the product to rain or wet conditions.

  • Page 12: Your Product

    Your product TTB669PRW by TITAN Your product MNL_TTB669PRW_TIT_GB_V03_150818.indd 12 8/18/15 4:16 PM...

  • Page 13: Technical Specifications

    TTB669PRW by TITAN Your product Transportation handle 13. Water inlet Spray gun a. Cap* a. Lance connection port 14. Detergent attachment b. Hose release a. Tank c. Hose connection port b. Tube* d. Trigger c. Cover* e. Trigger lock 15. Extension lance holder Handle 16.
  • Page 14 Your product TTB669PRW by TITAN Technical specifications > Maximum rated flow Q : 7.2 l/min > Rated temperature T : max. 50 °C > Gun kickback force at maximum : 9.4 N pressure Pressure hose > Permissible pressure : 160 bar (16 MPa) >...

  • Page 15: Before You Start

    TTB669PRW by TITAN Before you start Unpacking > Unpack all parts and lay them on a flat, stable surface. > Remove all packing materials and shipping devices, if applicable. > Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer.
  • Page 16 Before you start TTB669PRW by TITAN Assembly NOTE: Take care of small parts that are removed during assembly or when making adjustments. Keep them secure to avoid loss. Holders > Align mounting holes and assemble the pressure hose holder (17) onto the product.
  • Page 17 TTB669PRW by TITAN Before you start NOTE: The water hose connector (22) is supplied with an insulating washer (22a). The water hose connector (22) contains a filter (22b) to protect the product against larger particles. Ensure that this is fixed appropriately.
  • Page 18 Before you start TTB669PRW by TITAN Accessories Illustration Description Application Pressure lance To be used with nozzles (18, 19) To apply detergent and Variable spray clean wood decks, siding, nozzle (18) vehicles etc. To clean hard surfaces from dirt. rotary nozzle...

  • Page 19: Variable Spray Nozzle

    TTB669PRW by TITAN Before you start NOTE: After connection with the pressure lance (4), a 90° rotation can be applied to the spray gun (2). > To remove the pressure lance (4), press it towards the lance connection port (2a) of the spray gun (2) and turn it anticlockwise to remove it (Fig. 7).
  • Page 20 Before you start TTB669PRW by TITAN Accessories WARNING! Do not attempt to adjust the variable spray nozzle when the trigger (2d) is pressed. > Turn the variable spray nozzle (18) to adjust the water jet according to the surface you want to clean. The double arrow on the nozzle indicates the direction of the desired application (Figs.
  • Page 21 TTB669PRW by TITAN Before you start When applying detergent, only use the low pressure setting of the variable spray nozzle (18). The detergent will automatically be mixed with water. Ensure that the detergent tank (14) has been properly filled with detergent (refer to section “Accessories - Detergent attachment”...
  • Page 22 Before you start TTB669PRW by TITAN Accessories > Put the cover (14c) back onto the tank (14a) (Fig.18, step 3). Make sure the tube (14b) is not pinched when reattaching the cover (14c). Fig. 18 WARNING! Avoid skin contact with detergents, in particular contact...
  • Page 23 TTB669PRW by TITAN Before you start Extension lance Always attach the extension lance (21) when using the patio brush (20) (See section “Accessories – Patio brush” for the patio brush assembly steps). WARNING! Never use the patio brush without the extension lance –...
  • Page 24 Before you start TTB669PRW by TITAN Accessories > Press the extension lance (21) towards the lance connection port (2a) of the spray gun (2) (Fig. 23, step 1) and turn it anticlockwise to remove it (Fig. 23, step 2). Fig. 22 Fig.
  • Page 25 TTB669PRW by TITAN Before you start Fig. 26 > Remove the patio brush (20) from the extension lance (21) after use (Fig. 27). Fig. 27 WARNING! The patio cleaner is only intended to be used on flat surfaces! Do not attempt to use it on steps or try to touch the rotating nozzle while operating (Fig.
  • Page 26 Before you start TTB669PRW by TITAN Connection to water supply WARNING! Although this product is suitable for attachment to the drinking water supply local regulations may prohibit the connection to drinking water connections! Observe the regulations of your local utility company when connecting...
  • Page 27 TTB669PRW by TITAN more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal EC declaration of conformity MNL_TTB669PRW_TIT_GB_V03_150818.indd 27 8/18/15 4:16 PM...

  • Page 28: Product Functions

    TTB669PRW by TITAN Intended use This high pressure cleaner TTB669PRW is designated with a rated input of 1800 Watts and is designed with an adjustable transportation handle. The intended use of this product covers the cleaning of vehicles, buildings, terraces, facades and garden equipment using clean water and biodegradable chemical detergents.
  • Page 29 TTB669PRW by TITAN Product functions Storage position Transport position WARNING! Always ensure that the handle release button (16) snaps into place after adjusting the transportation handle (1) in upper position! Never adjust the transportation handle to an intermediate position! Accessory holder Use the accessory holders to store the product accessories (Fig.
  • Page 30 Product functions TTB669PRW by TITAN Accessory holder Fig. 31 NOTE: This product is equipped with several safety devices to avoid damage and injuries. Overload cut-out In case of overload, the motor stops. In this case, switch the product off, remove the mains plug and let it cool down for 10 minutes.

  • Page 31: Trigger Lock

    TTB669PRW by TITAN Product functions > Turn on the water tap fully. > Turn the on/off switch (7) to “ON/I” (on). > Hold the spray gun (2) with both hands. > Direct the nozzle of the chosen accessory away from you towards the surface to be cleaned (Fig.

  • Page 32: Operation

    Product functions / Operation TTB669PRW by TITAN Safety valve The safety valve is a pressure limiting valve. When the trigger (2d) is released, the valve opens and discharges the pressure inside the pump. Automatic motor start/stop device Automatic motor start/stop device is operated by the spray gun trigger (2d).
  • Page 33 TTB669PRW by TITAN Operation OFF/O OFF/O OFF/O OFF/O I/ON I/ON I/ON I/ON Fig. 35 Fig. 36 Operation WARNING! Do not operate the product when the ambient temperature is below 0 °C. Water will freeze inside the product and damage it.
  • Page 34 Operation TTB669PRW by TITAN Operation Fig. 38 WARNING! Beware of kickback when pressing the trigger! NOTE: Always keep a reasonable distance between the nozzle and the object to be cleaned in order to avoid damage. Ask your specialist dealer for advice if required.

  • Page 35: After Use

    TTB669PRW by TITAN Operation > Caution! Increase the distance from the cleaning area for softer woods. Cement patios, stone, and brick > Rinse at high pressure using fan spray in a sweeping motion keeping the nozzle at least 7-15 cm from the cleaning surface.

  • Page 36: Care And Maintenance

    Care and maintenance TTB669PRW by TITAN The golden rules for care WARNING! Always switch the product off, disconnect the product from the water and power supply and let the product cool down before performing inspection, maintenance and cleaning work! > Keep the product clean. Remove debris from it after each use and before storage.
  • Page 37 TTB669PRW by TITAN Care and maintenance Nozzle Remove any dirt deposits from the nozzle hole (18, 19) using the cleaning needle (23) (Fig. 39). Fig. 39 Filter > Remove the water hose connector (22) from the water inlet (13). > Disassemble the water hose connector (22) (Fig. 40).
  • Page 38 Care and maintenance TTB669PRW by TITAN Lime scale removal From time to time – according to the nature of your tap water – calcium deposits form in the product and accessories. The strength of the deposits (and thus the frequency of removal) depends upon the degree of hardness of the water and how often the product is used.
  • Page 39 TTB669PRW by TITAN Care and maintenance WARNING! Never connect live or neutral wires to the earth terminal of the plug, which is marked with E. Only fit an approved BS 1363 or BS 1363/A plug and correctly rated BS 1362 13 Amp fuse.
  • Page 40 Care and maintenance TTB669PRW by TITAN Storage Fig. 43 Transportation > Switch the product off and disconnect it from the water and power supply before transporting it anywhere. > Attach transportation guards, if applicable. > Adjust the transportation handle (1) to the transport position.

  • Page 41: Troubleshooting

    TTB669PRW by TITAN Troubleshooting Troubleshooting Suspected malfunctions are often due to causes that the users can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these instructions!

  • Page 42: Recycling And Disposal

    Troubleshooting / Recycling and disposal TTB669PRW by TITAN Troubleshooting Problem Possible cause Solution 3. No water jet 3.1 Trigger is not 3.1 Press the trigger pressed 3.2 Trigger lock is 3.2 Deactivate the trigger activated lock 3.3 No water supply 3.3 Check water supply...

  • Page 43: Ec Declaration Of Conformity

    Authorised Signatory and Technical File Holder Date: 23/01/2018 Signature: Name / title: Lisa Davis / Group Quality Director Kingfisher International Products Limited 2017 3 Sheldon Square London W2 6PX United Kingdom High Pressure Cleaner 1800W - TTB669PRW MNL_TTB669PRW_TIT_GB_V03_150818.indd 43 8/18/15 4:16 PM...

  • Page 44: United Kingdom

    Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom MNL_TTB669PRW_TIT_GB_V03_150818.indd 44 8/18/15 4:16 PM...
