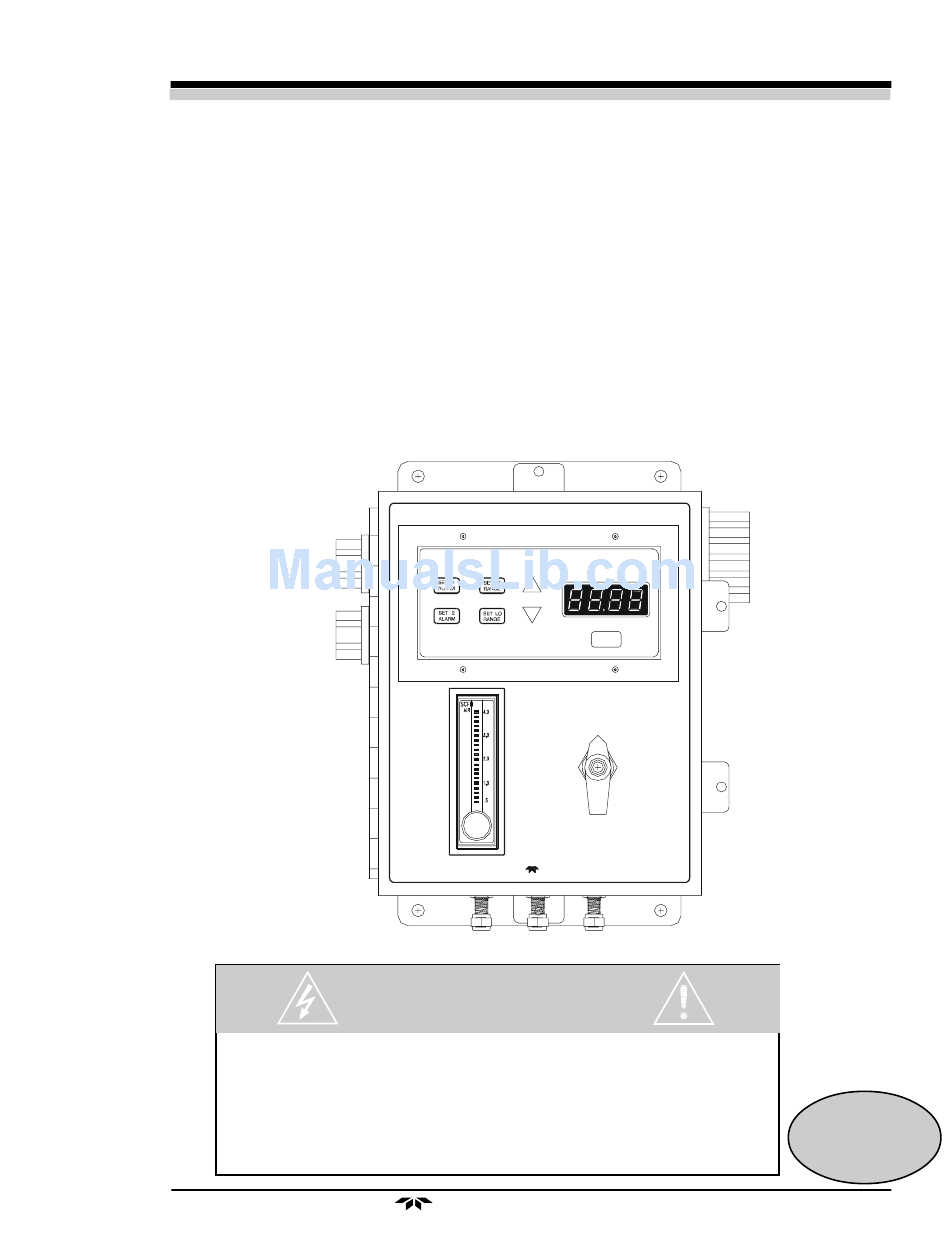

OPERATING INSTRUCTIONS FOR
Model 3300PB
Percent Oxygen Analyzer
SERIES 3300 PERCENT OXYGEN
SPAN
SPAN
SAMPLE

Teledyne Analytical Instruments

DANGER
HIGHLY TOXIC AND OR FLAMMABLE LIQUIDS OR GASES MAY BE PRESENT IN THIS MONITORING
SYSTEM.
PERSONAL PROTECTIVE EQUIPMENT MAY BE REQUIRED WHEN SERVICING THIS SYSTEM.
HAZARDOUS VOLTAGES EXIST ON CERTAIN COMPONENTS INTERNALLY WHICH MAY PERSIST
FOR A TIME EVEN AFTER THE POWER IS TURNED OFF AND DISCONNECTED.
P/N M69228
ONLY AUTHORIZED PERSONNEL SHOULD CONDUCT MAINTENANCE AND/OR SERVICING. BEFORE
11/29/00
CONDUCTING ANY MAINTENANCE OR SERVICING CONSULT WITH AUTHORIZED SUPERVISOR/
ECO # 00-0497
MANAGER.
Teledyne Analytical Instruments
i

Advertisement

Table of Contents
loading

Summary of Contents for Teledyne 3300PB

  • Page 1: Teledyne Analytical Instruments

    OPERATING INSTRUCTIONS FOR Model 3300PB Percent Oxygen Analyzer SERIES 3300 PERCENT OXYGEN SPAN SPAN SAMPLE Teledyne Analytical Instruments DANGER HIGHLY TOXIC AND OR FLAMMABLE LIQUIDS OR GASES MAY BE PRESENT IN THIS MONITORING SYSTEM. PERSONAL PROTECTIVE EQUIPMENT MAY BE REQUIRED WHEN SERVICING THIS SYSTEM.
  • Page 2 Any safeguards required such as locks, labels, or redun- dancy, must be provided by the user or specifically requested of Teledyne at the time the order is placed.
  • Page 3: Table Of Contents

    3.5 Installation Checklist ............3-6 Operation 4.1 Introduction ..............4-1 4.2 Using the Function and Data Entry Buttons ....4-2 4.3 Setting the Analysis Ranges .......... 4-2 4.3.1 HI Range ............... 4-2 4.3.2 LO Range .............. 4-3 Teledyne Analytical Instruments...
  • Page 4 5.2.4 Installing a Micro-Fuel Cell ........5-3 5.2.5 Cell Warranty Conditions ........5-4 Appendix A.1 Specifications ..............A-1 A.2 Spare Parts List ............. A-2 A.3 Reference Drawing ............A-3 A.4 Miscellaneous ..............A-3 A.5 Material Safety Data Sheet ..........A-3 Teledyne Analytical Instruments...
  • Page 5 Since the use of this instrument is beyond the control of Teledyne, no responsibility by Teledyne, its affiliates, and agents for damage or injury from misuse or neglect of this equipment is implied or assumed.
  • Page 6 Model 3300PB complies with all of the requirements of the Commonwealth of Europe (CE) for Radio Frequency Interference, Electromagnetic Interference (RFI/EMI), and Low Voltage Directive (LVD). The following International Symbols are used throughout the Instruc- tion Manual for your visual and immediate warnings and when you...
  • Page 7: Overview

    Overview The Teledyne Electronic Technologies Analytical Instruments (TETAI) Model 3300PB is a microprocessor-based percent oxygen analyzer for real- time measurement of the percent of oxygen in inert gases, or in a wide variety of gas mixtures. It features simple operation, fast response, and a compact, rugged construction.
  • Page 8: Front Panel Description

    These features are described briefly here and in greater detail in Chapter 4, Operation. SERIES 3300 PERCENT OXYGEN SPAN SPAN SAMPLE Teledyne Analytical Instruments Figure 1-1: Front Panel Function Keys: Seven pushbutton membrane switches are used to select the function performed by the analyzer: • Set Alarm 1 Set Alarm 1 Hi or Low, and the concentration at which alarm 1 activates.
  • Page 9: Rear Panel Description

    Rear Panel Description The rear panel contains the electrical input and output connectors. The connectors are described briefly here and in detail in the Installation chapter of this manual. Figure 1-2 Rear Panel Teledyne Analytical Instruments...
  • Page 10 0–10 V dc concentration output. 0–10 V dc range ID (or optional overrange) output. 4–20 mA dc concentration output, negative ground. • Alarm Connections Alarm 1, Alarm 2, and Sensor Failure Alarm connections. • Sensor Connector Internal Sampling System, Sensor Connector. Teledyne Analytical Instruments...
  • Page 11: Operational Theory

    Micro-Fuel Cell Sensor 2.2.1 Principles of Operation The oxygen sensor used in the Model 3300PB is a Micro-Fuel Cell de- signed and manufactured by TAI. It is a sealed, disposable electrochemical transducer. The active components of the Micro-Fuel Cell are a cathode, an anode, and the aqueous KOH electrolyte in which they are immersed.
  • Page 12: Anatomy Of A Micro-Fuel Cell

    The space between the active elements is filled by a structure saturated with electrolyte. Cathode and anode are wet by this common pool. They each have a Teledyne Analytical Instruments...
  • Page 13: Electrochemical Reactions

    If the pressure changes, the rate that oxygen reaches the cathode through the diffusing membrane will also increase. The electron transfer, and therefore the Teledyne Analytical Instruments...
  • Page 14: Calibration Characteristics

    Figure 2-2. Characteristic Input/Output Curve for a Micro-Fuel Cell In addition, since there is zero output in the absence oxygen, the character- istic curve has an absolute zero. The cell itself does not need to be zeroed. Teledyne Analytical Instruments...
  • Page 15: Electronics

    C O N T RO L- LE R K E Y B O A RD D IS P LAY R E LAYS A LAR M S R E LAYS A LAR M S Figure 2-3: Block Diagram of the Signal Processing Electronics Teledyne Analytical Instruments...
  • Page 16 12-bit digital to analog converter (DAC) that produces the 0-10 V dc analog concentration signal and the 0-10 V dc analog range ID output. A current to voltage converter (E–I CONV) produces the 4-20 mA dc analog concentration signal. Teledyne Analytical Instruments...
  • Page 17: Installation

    CAUTION: Do not disturb the integrity of the cell package until the cell is to actually be used. If the cell package is punctured and air is permitted to enter, cell-life will be compromised. Teledyne Analytical Instruments...
  • Page 18: Location And Mounting

    Model 3300 Location and Mounting 3.2.1 Control Unit Installation The 3300PB Control Unit is designed to be wall-mounted, in a general purpose, area. The unit should be installed at viewing level in a sheltered area. Refer to the Outline diagram D-69220 for the physical dimensions of the analyzer.
  • Page 19 There is one set of contacts for each type of alarm. Contacts are Form C, with normally open and normally closed contact connections capable of switching up to 0.5 ampere at 125 VAC into a resistive load (2A for 30 VDC). Teledyne Analytical Instruments...
  • Page 20 Do not force it in. The other end of the cable has two terminal connectors. This should be connected to the header on the top of the sensor. Teledyne Analytical Instruments...
  • Page 21: Gas Connections

    Each status output is followed by a carriage return and line feed. The RS-232 protocol allows some flexibility in its implementation. Table 2 lists certain RS-232 values that are required by the 3300PB imple- mentation. Table 2: Required RS-232 Options...
  • Page 22 If you are venting into a system of varying pressure, then some form of pressure regulation is required to maintain a constant pressure. Sampel and Span pressure is not to exceed 50 psig (345 Kpa). Figure 3-3: Piping Diagram (standard piping diagfram for positive pressure service) Teledyne Analytical Instruments...
  • Page 23 Do not adjust the span flow rate with the flow control valve located on the analyzer for units with vacuum service options. Figure 3-4: Piping Diagram for Vacuum Service Option Teledyne Analytical Instruments...
  • Page 24: Installation Checklist

    Set the sample pressure to 5–10 psig (34.5-68.9 Kpa), nominal (for non-vacuum service units) • Set the flow Once the above checks have been made, you can connect to the power source. The instrument is now ready for operation. Teledyne Analytical Instruments...
  • Page 25: Operation

    As long as no front panel buttons are being pressed the Analyzer is analyzing. SERIES 3300 PERCENT OXYGEN SPAN SPAN SAMPLE Teledyne Analytical Instruments Figure 4-1: Front Panel Controls and Indicators Teledyne Analytical Instruments...
  • Page 26: Using The Function And Data Entry Buttons

    LO range when the oxygen concentration reaches 85% of the LO range fullscale value Note: The HI Range setpoint MUST be set at a higher concentration percent- age than the LO Range setpoint. Teledyne Analytical Instruments...
  • Page 27: Hi Range

    3. To change the setting at which the alarm will be actuated, press the SET ALARM 1 function button once more. The alarm setpoint will flash on the LED display. Press either the Up or Down keys to raise or lower the displayed value, as required, Teledyne Analytical Instruments...
  • Page 28: Alarm 2

    The SENSOR FAIL alarm is factory set to a reading less than 0.05% . Should this alarm trigger the ALARM Indicator below the SET Func- tion buttons will blink, and the alarm relay contact dedicated to this function will change state. Teledyne Analytical Instruments...
  • Page 29: Selecting A Fixed Range Or Autoranging

    Percent Oxygen Analyzer Operation 4 Selecting a Fixed Range or Autoranging The Model 3300PB can operate in fixed high, fixed low, or autoranging mode. To change modes: 1. Press and then release the SET HI RANGE and the SET LO RANGE buttons simultaneously.
  • Page 30: Supplementary Information

    5 seconds if the range or alarm bottoms are pressed during span. This may result in false alarms if the span gas has not been fully purged from the cell and sample lines. Teledyne Analytical Instruments...
  • Page 31: Replacing The Fuse

    Maintenance Aside from normal cleaning and checking for leaks at the gas connections, the Model 3300PB should not require any maintenance beyond replacement of expended Micro-Fuel Cells, and perhaps a blown fuse. Routine maintenance includes occasional recalibration, as described in chapter 4, Operation.
  • Page 32: Sensor Installation Or Replacement

    CAUTION: Do not disturb the integrity of the cell package until the cell is to actually be used. If the cell package is punctured and air is permit- ted to enter, cell-life will be compromised. Teledyne Analytical Instruments...
  • Page 33: Removing The Micro-Fuel Cell

    Percent Oxygen Analyzer Maintenance 5 WARNING: The sensor used in the Model 3300PB uses electrolytes which contain substances that are extremely harmful if touched, swallowed, or inhaled. Avoid contact with ANY fluid or powder in or around the unit. What may appear to be plain water could contain one of these toxic substances.
  • Page 34: Cell Warranty Conditions

    Model 3300 5.2.5 Cell Warranty Conditions The Class I-22 Micro-Fuel cell is used in the Model 3300PB. This cell is a long life cell and is warranted for 2 years (under specified operating conditions— see Appendix) from the date of shipment. Note any Addenda attached to the front of this manual for special information applying to your instrument.
  • Page 35: Appendix A.1 Specifications

    90% in less than 8 seconds at 25 °C. System Power Requirements: AC (100-240 VAC, 50/60Hz), 10W System Enclosure: Wall Mounting, NEMA-4 enclosure. Dimensions (Approx.) 8 W x 10 H x 6 D. Weight: 13.8lbs (6.4Kg). Sensor Type: Micro Fuel Cell Class I-22. Teledyne Analytical Instruments...
  • Page 36: Spare Parts List

    Orders for replacement parts should include the part number and the model and serial number of the system for which the parts are intended. Send orders to: TELEDYNE ELECTRONIC TECHNOLOGIES Analytical Instruments 16830 Chestnut Street City of Industry, CA 91749-1580...
  • Page 37: Reference Drawing

    A.3 Reference Drawing A-69265 Piping Diagram D-69229 Outline Diagram A.4 Miscellaneous The symbol: ~ is used on the rear panel of the model 3300PB to signify volts alternating current (V ac). NOTE: The MSDS on this material is available upon request through the Teledyne Environmental, Health and Safety Coordinator.
  • Page 38 Appendix Model 3300 Teledyne Analytical Instruments...
  • Page 39: Material Safety Data Sheet

    Product Name: Micro-Fuel Cells Mini-Micro-Fuel Cells, all classes Super Cells, all classes except T–5F Electrochemical Oxygen Sensors, all classes. Manufacturer: Teledyne Electronic Technologies/Analytical Instruments Address: 16830 Chestnut Street, City of Industry, CA 91749 Phone: (626) 934-1500 Technical Support: (626) 934-1673...
  • Page 40 NTP Annual Report on Carcinogens: Not listed LARC Monographs: Not listed OSHA: Not listed Other health hazards: Lead is listed as a chemical known to the State of California to cause birth defects or other reproductive harm. Teledyne Analytical Instruments...
  • Page 41 The information is believed to be correct but does not purport to be all inclusive and shall be used only as a guide. Teledyne Analytical Instruments shall not be held liable for any damage resulting from handling or from contact with the above product.
