Shure R89 User Manual

REPLACEMENT UNIDIRECTIONAL DYNAMIC CARTRIDGE
The Shure Model R89 is a unidirectional dynamic
cartridge and is a direct replacement for the cartridge in
Shure Model 522 Base Station microphones.
Installation and Connections
To replace the R89 in the Shure Model 522, proceed as
follows:
1. Firmly hold the upper part of the microphone housing
and unscrew (turn counter-clockwise) the cap assembly
and washer. See Figure 1.
2. Remove the old cartridge from the microphone housing.
SHIELD
RED
CARTRIDGE
CONNECTIONS
1999, Shure Brothers Incorporated
27A699 (SC)
CODED
TERMINAL
HOUSING
ORANGE
REPLACEMENT CARTRIDGE

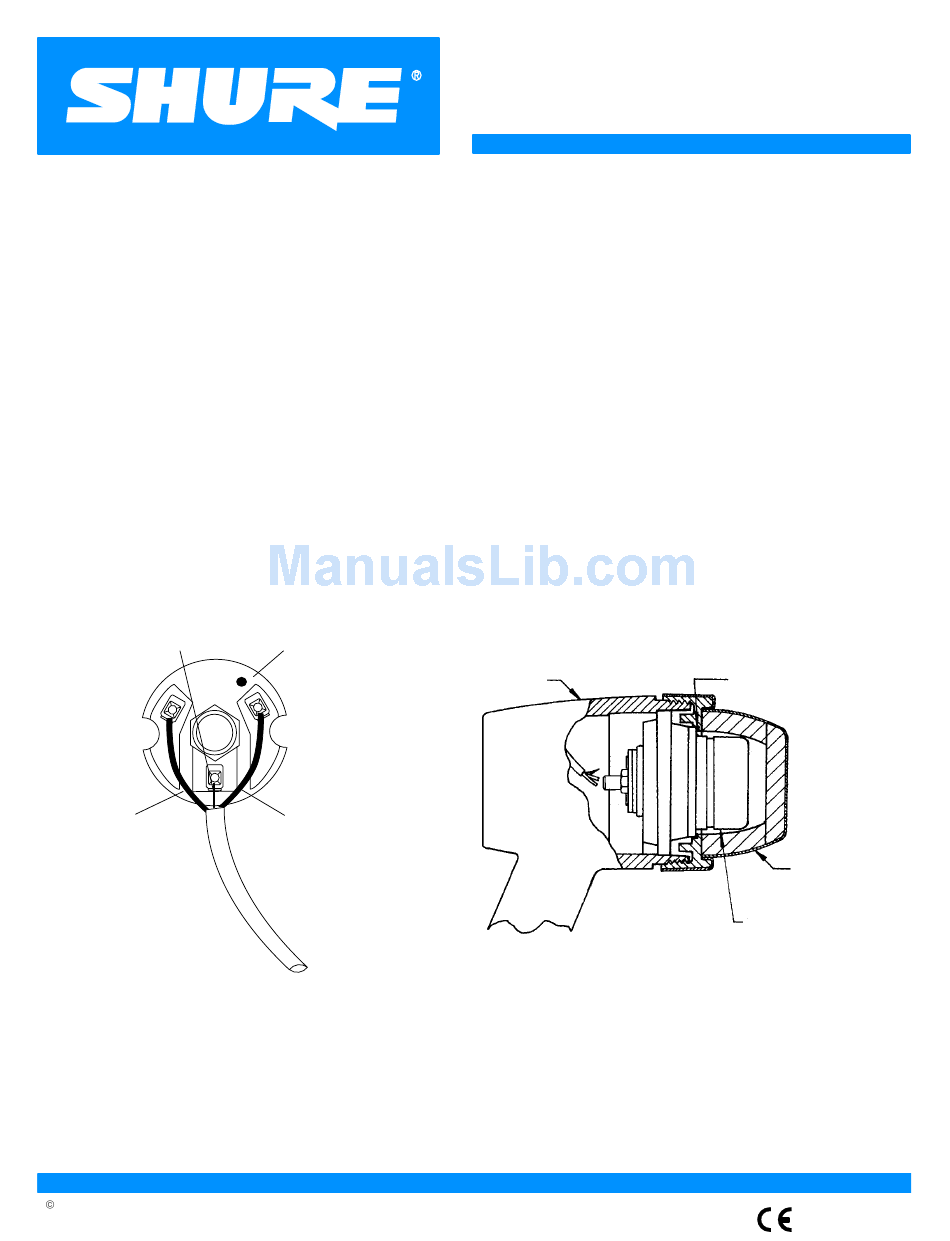

FIGURE 1
Shure Brothers Incorporated
222 Hartrey Avenue
Evanston IL 60202-3696 U.S.A.
Model R89 User's Guide
3. Note the connections of the colored leads and the
cartridge's terminals. Unsolder the red, orange, and
shield leads from the old cartridge.
4. Connect the red, orange, and shield leads to the
replacement cartridge.
5. Place the new cartridge into the microphone housing,
making sure that it is properly seated.
6. Reassemble the washer and cap assembly. Tighten the
cap securely.
MICROPHONE HOUSING
WASHER
CAP
ASSEMBLY
CARTRIDGE
Printed in U.S.A.
