R96 -- Replacement Cartridge
General Description
CARTRIDGE INSTALLATION
The Shure Model R96 is a direct replacement cartridge for the Shure Model 526T, 526T Series 2, and 550L Dy
namic Base Station Microphones. When installed, the R96 will provide performance equal to that of the original
cartridge.
Installation and Connections
To install the R96, proceed as follows:

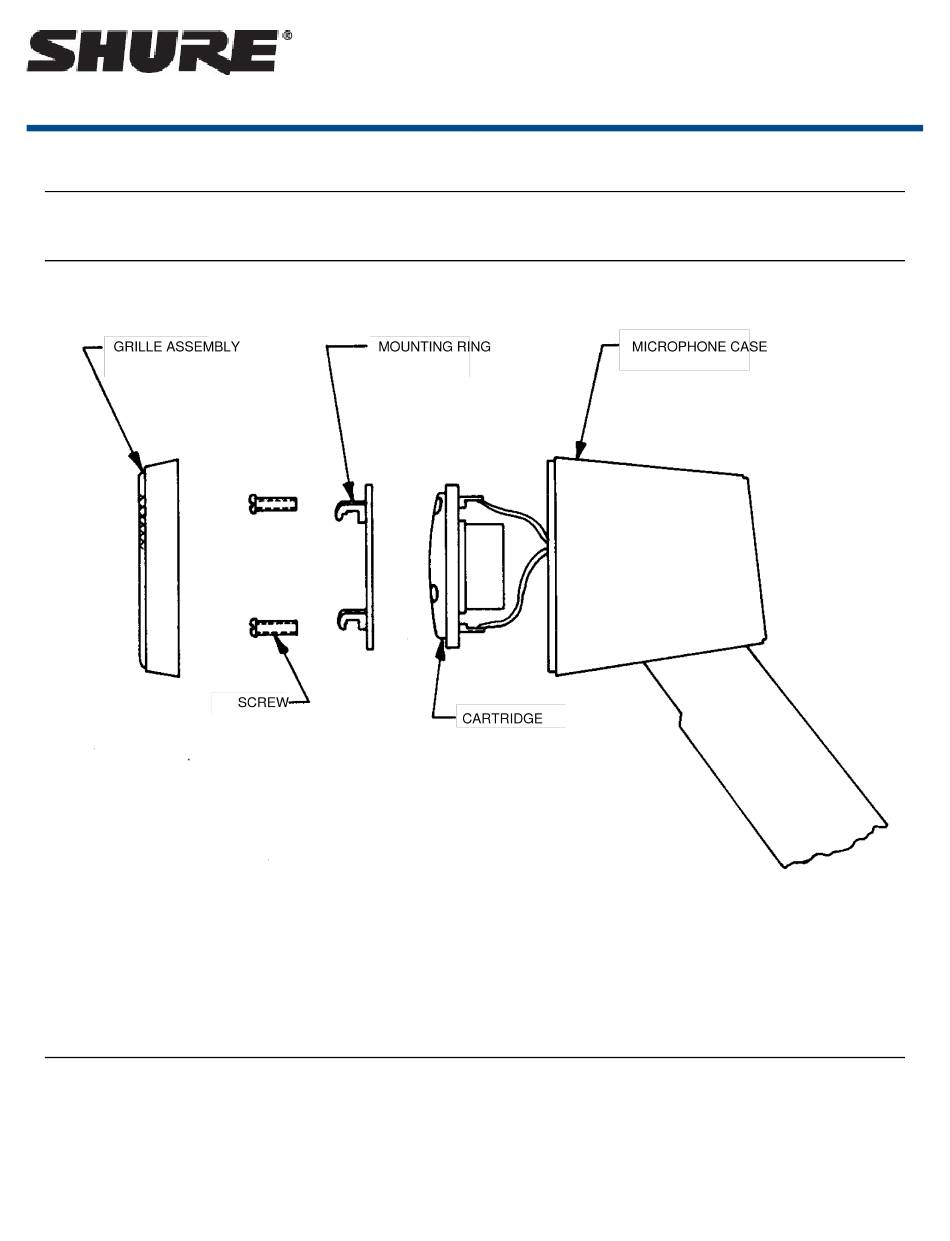

1. Remove the grille assembly by grasping it by the edges, twisting one-quarter turn counterclockwise, and pulling
outward (see Figure 1).
1/3
Advertisement
Related Manuals for Shure R96
Summary of Contents for Shure R96
- Page 1 General Description CARTRIDGE INSTALLATION The Shure Model R96 is a direct replacement cartridge for the Shure Model 526T, 526T Series 2, and 550L Dy namic Base Station Microphones. When installed, the R96 will provide performance equal to that of the original cartridge.
- Page 2 Guarantee This Shure product is guaranteed in normal use to be free from electrical and mechanical defects for a period of one year from date of purchase. Please retain proof of purchase date. This guarantee includes all parts and labor.
- Page 3 Shure Incorporated Shipping Instructions Carefully repack the unit and return it prepaid to the factory. If outside the United States, return the unit to your dealer or Authorized Shure Service Center for repair. The unit will be returned to you prepaid.
