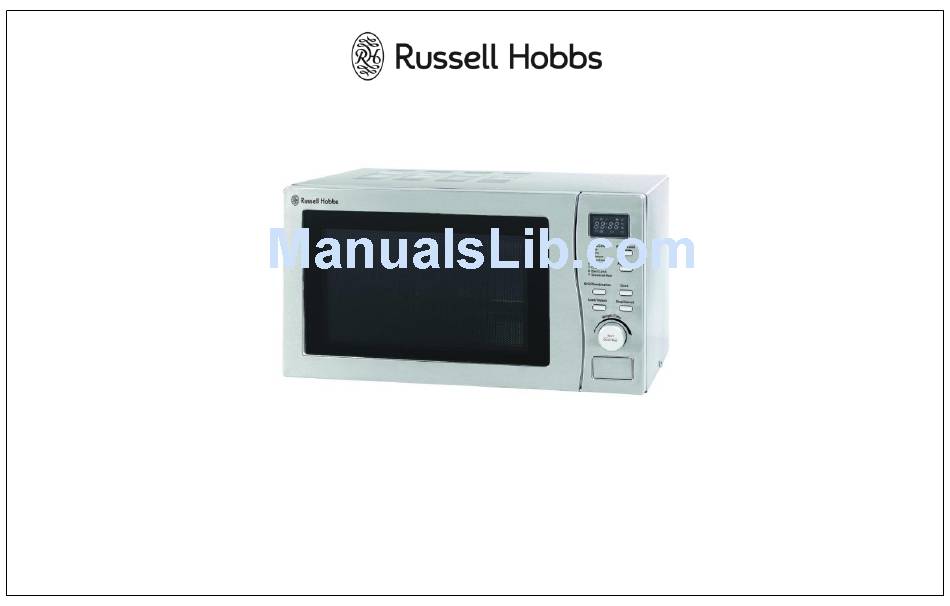

20 Litre microwave oven
User manual
Model number: RHM2010S(-H)
Important safety instructions , please read carefully and keep them for future reference
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 9am – 5pm & Saturday 9am – 1pm or visit us at www.productcareuk.com
Advertisement
Table of Contents
Related Manuals for Russell Hobbs RHM2010S
Summary of Contents for Russell Hobbs RHM2010S
- Page 1 20 Litre microwave oven User manual Model number: RHM2010S(-H) Important safety instructions , please read carefully and keep them for future reference For Customer Services & Spare Parts please call 0845 209 7461 Opening times: Monday - Friday 9am – 5pm & Saturday 9am – 1pm or visit us at www.productcareuk.com...
-
Page 3: Table Of Contents
Contents Page About this microwave oven........Unpacking your microwave oven......Safety instructions............ Microwave oven installation........Feature diagram............Turn table installation…………………..……………….……… Control panel............How to use your microwave oven......Timer and child safety lock………………………………….. Cleaning and care............ Important utensil information......... Connection to the mains supply......Problem solving.……….......... -
Page 4: About This Microwave Oven
About this microwave oven Microwaves are high-frequency electromagnetic waves similar to radio waves. While radio waves may vary in length from one metre to many kilometres, microwaves are very short (less than 12.5 centimetres). Microwaves do not make any heat themselves but only cause water molecules in food to vibrate. -
Page 5: Unpacking Your Microwave Oven
Unpacking your microwave oven Before you use your microwave oven 1. Remove all the packaging. Do not remove the small piece of card from the right hand side of the cavity wall. This is called a wave-guide cover and allows the microwaves to pass through to cook the food. -
Page 6: Safety Instructions
Safety instructions Do not use the oven for any reason other than preparing food, such as for drying clothes, paper or any other non-food items, or for sterilising purposes. ➢ Do not use the oven when it is empty. This could damage the oven. ➢... - Page 7 Safety instructions ➢ Heat from the contents of a container may be transmitted to the container itself, so please be careful when removing it from the oven. Please remember that the food or liquid inside will be releasing some steam or will be spitting. Never cover any container fully, always leave a gap for steam to escape.
- Page 8 Safety instructions ➢ Food containing a mixture of fat and water (for example, stock) should stand for 30 to 60 seconds in the oven after it has been turned off. This is to allow the mixture to settle and to prevent it from bubbling when a spoon is placed in it, or a stock cube is added.
- Page 9 Safety instructions To reduce the risk of fire in the oven cavity: ➢ Do not overcook food. ➢ Do not leave the microwave oven unattended while you are using it and if using paper or plastic containers check regularly to ensure they do not ignite. ➢...
- Page 10 Safety instructions Warning: it is hazardous for anyone other than a competent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to microwave energy. Warning: if the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
-
Page 11: Microwave Oven Installation
Microwave oven installation ➢ Select a level surface that provides enough space for the outlet vents. ➢ A minimum clearance of 7.5cm is required between the oven and any adjacent walls. One side must be open. Leave a minimum clearance of 30cm above the oven. -
Page 12: Feature Diagram
Feature Diagram Door Safety Lock System Oven Window Turntable Ring Assembly Control Panel Wave Guide Glass Turntable Venting on the top at the back and on the side. Warning - do not use the oven when empty or for warming plates. Always keep the oven cavity, door assembly and waveguide cover clean For Customer Services &... -
Page 13: Turn Table Installation
Turn table installation ➢ Before first use, check that any securing tape has been removed from the glass tray and turntable ring assembly. These parts must never be restricted from rotating. ➢ Never place the glass tray upside down. ➢ Both the glass tray and turntable ring assembly must always be used during cooking. -
Page 14: Control Panel
Control panel DISPLAY Cooking time, power, action indicators, and clock time are displayed. POWER LEVEL Press this button a number of times to set a cooking power level. AUTO COOK Press this button for easy cooking menus. GRILL/COMBINATION Press this button a number of times to set a cooking program. -
Page 15: How To Use Your Microwave Oven
How to use the microwave oven Connect the main plug into a suitable 13 amp mains socket, make sure the voltage is the same as on the rating label (do not use extension cables or mains socket adaptors). The microwave oven will beep once and the display will show the clock symbol and ,’1:01’. - Page 16 Cooking The longest cooking time is 60 minutes. To cook with microwave power alone, press the ‘POWER/LEVEL’ button a number of times to select a cooking power level, and then use the ‘WEIGHT/DEFROST/TIME’ dial to set a desired cooking time. Press the ‘START/QUICK START’ knob to start the cooking process. Press power button Cooking power once...
- Page 17 Cooking Quick start cooking This program allows you to cook food at 100% power between 30 seconds and 12 minutes by pressing the 'Start Quick Start' knob directly. For example if you want to cook food for 2 minutes. 1. Place the food in a container suitable for use with microwave ovens and put it into the microwave oven.
- Page 18 Cooking Auto menus There are 9 auto menus you can use for easy cooking. To access the menus, press the 'Auto Cook' button. For guide lines, please see the Auto menus chart on page 10. 1. Place the food in a container suitable for use with microwave ovens, and put it into the oven. 2.
- Page 19 Cooking Auto menu Food Weights Recommendations Milk/Coffee 1-200ml, 2-400ml, 3-600ml Place the cup onto the center of the turntable. When the liquid has been removed from the oven, leave to stand before adding sugar. Rice 150g, 300g, 450g, 600g Place the rice into a suitable container, cover with water. Pasta 100g, 200g, 300g Place the pasta into a suitable container, cover with boiling water.
- Page 20 Cooking Grill/Combination Grill This program allows you to grill food between 10 seconds and 60 minutes by pressing the 'Grill/Combination' button directly. For example if you want to grill food for 2 minutes. 1. Place the food onto the grill rack if you want. Make sure that you put a plate under the grill rack to collect any spilt food.
- Page 21 Cooking Combination The oven has the ability to combine the microwave and grill.. There are 2 combination settings 'Comb1' and Comb2'. Combination 1 has 30% microwave cooking time and 70% grilling time while combination 2 has 55% microwave cooking time and 45% grilling time. This is useful for foods such as potatoes, fish and thicker cuts of meat.
- Page 22 Cooking To choose Combination 2: 5. Place the food in a container suitable for use with microwave ovens and put it onto the rack. 6. Press the 'Grill/Combination' button three times. 'Comb2' will light up and the 'Start‘ symbol will flash.
- Page 23 Cooking Weight defrost (using the 'Weight/Time' knob) Weight defrost allows you to set the food weight and let the oven decide how long the food will take to defrost. You can defrost foods between 100g and 1800g. For example, to defrost '400g' of food. The steps are as follows: 1.
-
Page 24: Timer And Child Safety Lock
Timer and child safety lock Kitchen timer The kitchen timer is used to set a countdown time for the convenience of the user, it can be used as a reminder. 1. Press the 'Power Level' button until the display shows 00%. 2. -
Page 25: Cleaning And Care
Cleaning and care ➢ Before you clean the oven, turn it off and unplug it. ➢ Keep the inside of the oven clean. When food or liquids stick to the oven walls, wipe with a damp cloth. We recommend that you do not use harsh detergent or abrasives. ➢... - Page 26 Cleaning and care ➢ Regularly remove the glass turntable to clean it, and wash it in warm soapy water. ➢ Regularly clean the turntable support and oven floor. Simply wipe the bottom surface of the oven with mild detergent and water, then dry. You can wash the turntable support in mild soapy water.
-
Page 27: Important Utensil Information
Important utensil information ➢ Do not use metal pans or dishes with metal handles. ➢ Do not use anything with a metal trim. ➢ Do not use paper covered wire twist-ties on plastic bags. ➢ Do not use melamine dishes as they contain a material which will absorb microwave energy. -
Page 28: Connection To The Mains Supply
Connection to the mains supply WARNING- THIS APPLIANCE MUST BE EARTHED This appliance is designed to operate from a mains supply of AC230V ~ 50HZ. Check that the voltage marked on the product corresponds with your supply voltage. This product is fitted with a 13A plug complying with BS1363. If this plug is unsuitable or needs to be replaced, please note the following: Important: The wires in the mains lead are... - Page 29 Connection to the mains supply For UK use only – Plug fitting details (where applicable): As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The GREEN/YELLOW wire is the EARTH and must be connected to the terminal which is marked with the letter E or by the earth symbol or coloured GREEN or GREEN/YELLOW.
- Page 30 Non-rewireable mains plug If your appliance is supplied with a non-rewireable plug fitted to the mains lead you will find that it incorporates a fuse, the value of which is indicated either on the base of the plug or on the fuse carrier. Should the fuse need replacing, you must use an ASTA approved fuse (conforming to BS1362) of the same rating.
-
Page 31: Problem Solving
Problem solving The microwave oven may cause interference to your radio, TV or similar equipment. If it does, you can get rid of the interference by moving the radio, TV or equipment as far away from your microwave oven as possible. If the oven doesn’t work - ➢... -
Page 32: Guarantee
Guarantee This product is guaranteed for 12 months from the date of the original purchase. If any defect arises due to faulty materials or workmanship the faulty product must be returned to the place of purchase. Refund or replacement is at the discretion of the store. The following conditions apply: •... -
Page 33: Technical Specification
Technical Specifications Rated Voltage: 230V – 240V ~ 50Hz Rated Output Power(Microwave): 800W Rated grill output: 1000W Oven Capacity: 20 L External Dimensions(LxWxH): 452mmX390mmX262mm Net Weight: Approx. 12.5 kg For Customer Services & Spare Parts please call 0845 209 7461 Opening times: Monday - Friday 9am –... -
Page 34: Spare Parts
Spare Parts The following spare parts are available from www.productcareuk.com Glass turntable Turntable coupling Wave Guide cover For Customer Services & Spare Parts please call 0845 209 7461 Opening times: Monday - Friday 9am – 5pm & Saturday 9am – 1pm or visit us at www.productcareuk.com... - Page 36 For Customer Services & Spare Parts please call 0845 209 7461 Opening times: Monday - Friday 9am – 5pm & Saturday 9am –1pm or visit us at www.productcareuk.com Revision 1 This symbol is known as the 'Crossed-out wheelie bin Symbol'. When this symbol is marked on a product/batteries, it means that the product/batteries should not be disposed of with your general household waste.
