3. Installation Procedures
2.
Tightly wrap the connector and the cable. Overlap the tape, without gaps, all the way along
the connector. Continue wrapping the tape 25 mm (1") onto the cable.

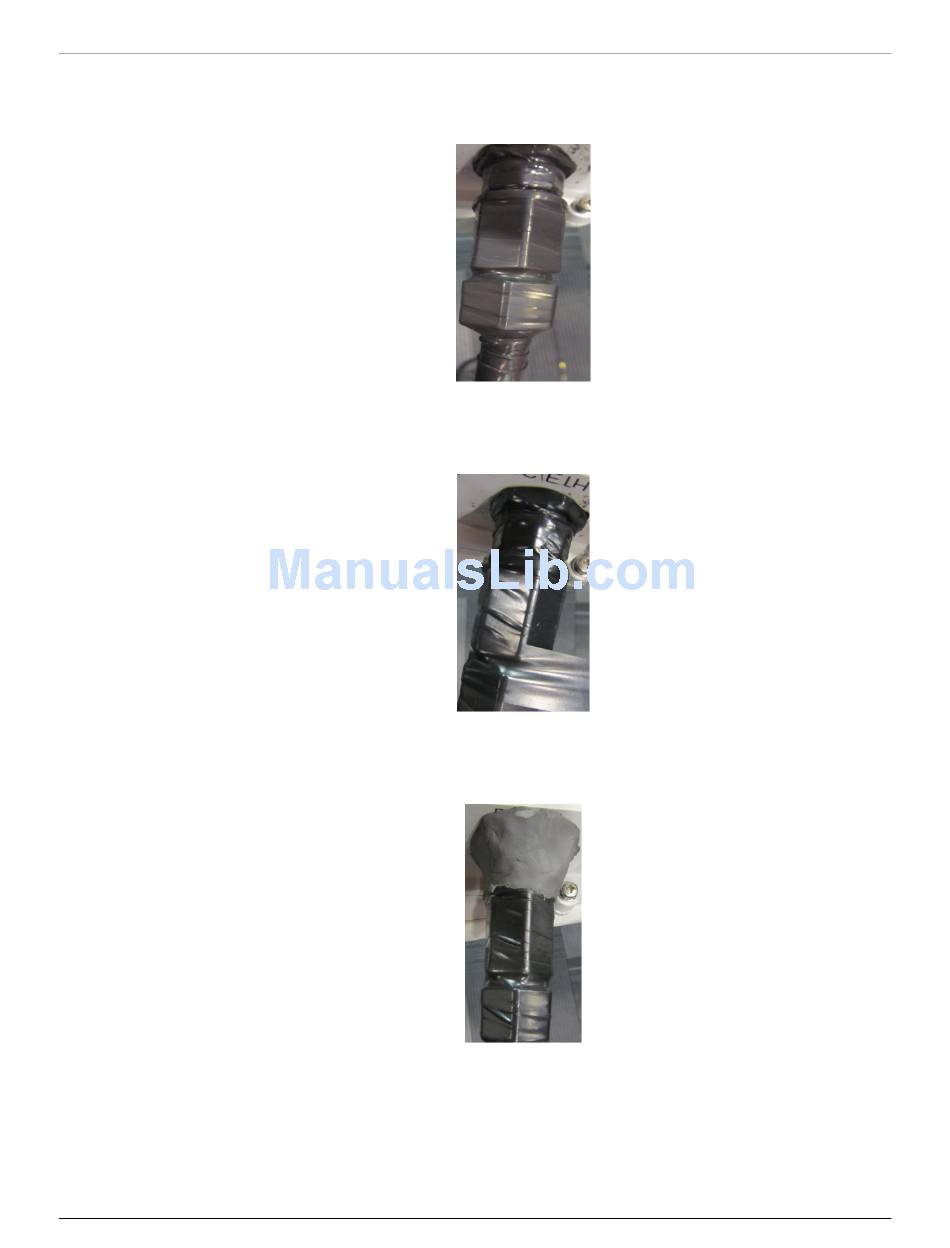

Figure 3.7. Wrapping the Cable with Rubber-splicing or Self-amalgamating Tape
3.
For UV protection of the rubber splicing tape, wrap two layers of electrical tape on top of the
rubber splicing tape.
Figure 3.8. Wrapping the Connector with Electrical Tape
4.
Work mastic putty or duct sealing putty between the connector and the body of the radio or
antenna. Ensure the putty fills any gaps not covered by the tape.
Figure 3.9. Sealing Gaps with Putty
RuggedCom® RuggedMAX WiN7000
23
Installation Guide Rev1
