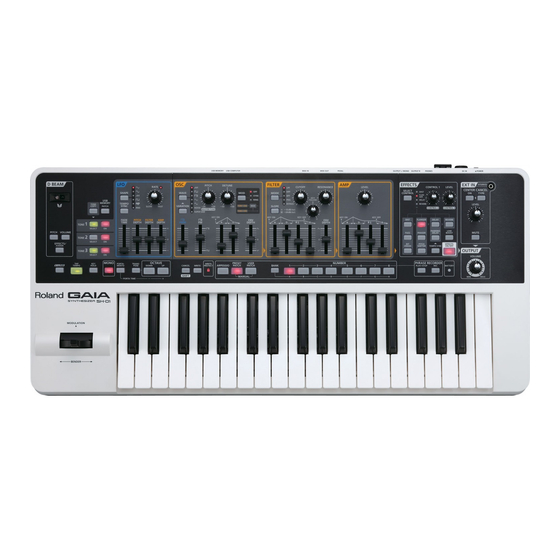

Roland SH-01 Midi Implementation Manual

MIDI Implementation

1. Receive data
n Channel Voice Messages
l Note off
Status 2nd byte
8nH kkH
9nH kkH
n = MIDI channel number:
kk = note number:
vv = note off velocity:
l Note on
Status 2nd byte
9nH kkH
n = MIDI channel number:
kk = note number:
vv = note on velocity:
l Control Change
m Bank Select (Controller number 0, 32)
Status 2nd byte
BnH 00H
BnH 20H
n = MIDI channel number:
mm, ll = Bank number:
* Not received when the RX BANK SELECT parameter (System Parameter) is OFF.
* The Patches corresponding to each Bank Select are as follows.
BANK SELECT | PROGRAM
MSB | LSB | NUMBER
-----+-----------+-----------+----------------------+-----------
087 | 000 | 001 - 128 | User Patch
| 064 | 001 - 128 | Preset Patch
088 | 064 | 001 - 008 | Preset PCM Patch
m Modulation (Controller number 1)
Status 2nd byte
BnH 01H
n = MIDI channel number:
vv = Modulation depth:
All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION.
1PS
3rd byte
vvH
00H
0H - FH (ch.1 - 16)
00H - 7FH (0 - 127)
00H - 7FH (0 - 127)
3rd byte
vvH
0H - FH (ch.1 - 16)
00H - 7FH (0 - 127)
01H - 7FH (1 - 127)
3rd byte
mmH
llH
0H - FH (ch.1 - 16)
00 00H - 7F 7FH (bank.1 - bank.16384)
| GROUP | NUMBER
| |
| A-1 - H-8
| A-1 - H-8
| 1 -
3rd byte
vvH
0H - FH (ch.1 - 16)
00H - 7FH (0 - 127)
Copyright © 2010 ROLAND CORPORATION
m Portamento Time (Controller number 5)
Status 2nd byte
BnH 05H
n = MIDI channel number:
vv = Portamento Time:
* PORTAMENTO TIME parameter (Patch Parameter) will change.
m Volume (Controller number 7)
Status 2nd byte
BnH 07H
n = MIDI channel number:
vv = Volume:
m Panpot (Controller number 10)
Status 2nd byte
BnH 0AH
n = MIDI channel number:
vv = Panpot:
m Expression (Controller number 11)
Status 2nd byte
BnH 0BH
n = MIDI channel number:
vv = Expression:
m Hold 1 (Controller number 64)
Status 2nd byte
BnH 40H
n = MIDI channel number:
vv = Control value:
l Program Change
Status 2nd byte
CnH ppH
8
n = MIDI channel number:
pp = Program number:
* Not received when the RX PROGRAM CHANGE parameter (System Parameter) is OFF.
Model: SH-01
Date: Apr. 1, 2010
Version: 1.00
3rd byte
vvH
0H - FH (ch.1 - 16)
00H - 7FH (0 - 127)
3rd byte
vvH
0H - FH (ch.1 - 16)
00H - 7FH (0 - 127)
3rd byte
vvH
0H - FH (ch.1 - 16)
00H - 40H - 7FH (Left - Center - Right)
3rd byte
vvH
0H - FH (ch.1 - 16)
00H - 7FH (0 - 127)
3rd byte
vvH
0H - FH (ch.1 - 16)
00H - 7FH (0 - 127) 0-63 = OFF, 64-127 = ON
0H - FH (ch.1 - 16)
00H - 7FH (prog.1 - prog.128)
1
