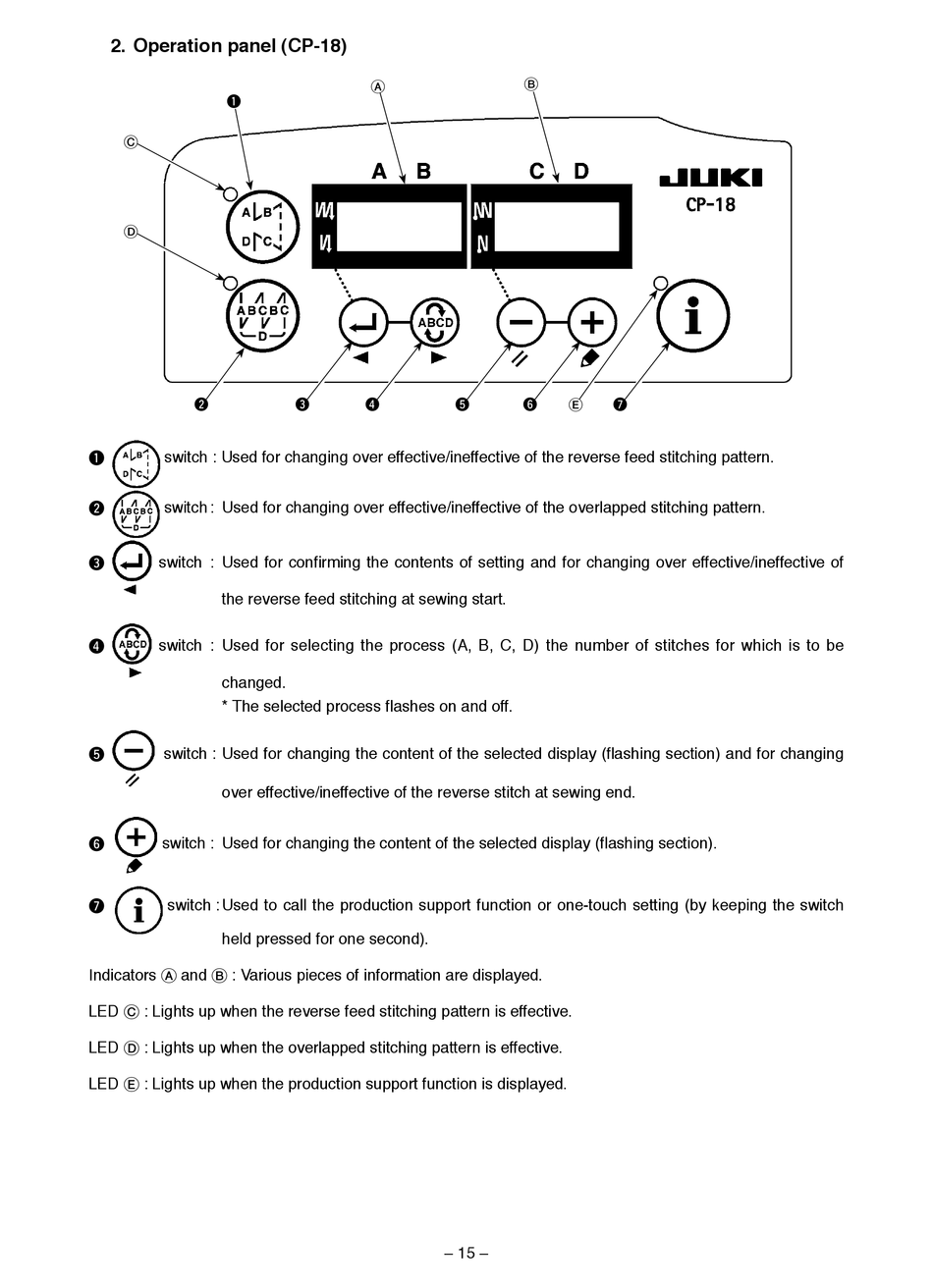

2. Operation panel (CP-18)
1
C
D
2
switch : Used for changing over effective/ineffective of the reverse feed stitching pattern.
1
switch : Used for changing over effective/ineffective of the overlapped stitching pattern.
2
switch : Used for confirming the contents of setting and for changing over effective/ineffective of
3
the reverse feed stitching at sewing start.
switch : Used for selecting the process (A, B, C, D) the number of stitches for which is to be
4
changed.
* The selected process flashes on and off.
switch : Used for changing the content of the selected display (flashing section) and for changing
5
over effective/ineffective of the reverse stitch at sewing end.
switch : Used for changing the content of the selected display (flashing section).
6
switch : Used to call the production support function or one-touch setting (by keeping the switch
7
held pressed for one second).
Indicators A and B : Various pieces of information are displayed.
LED C : Lights up when the reverse feed stitching pattern is effective.
LED D : Lights up when the overlapped stitching pattern is effective.
LED E : Lights up when the production support function is displayed.
A
3 4 5
– 15 –
B
6 E 7
