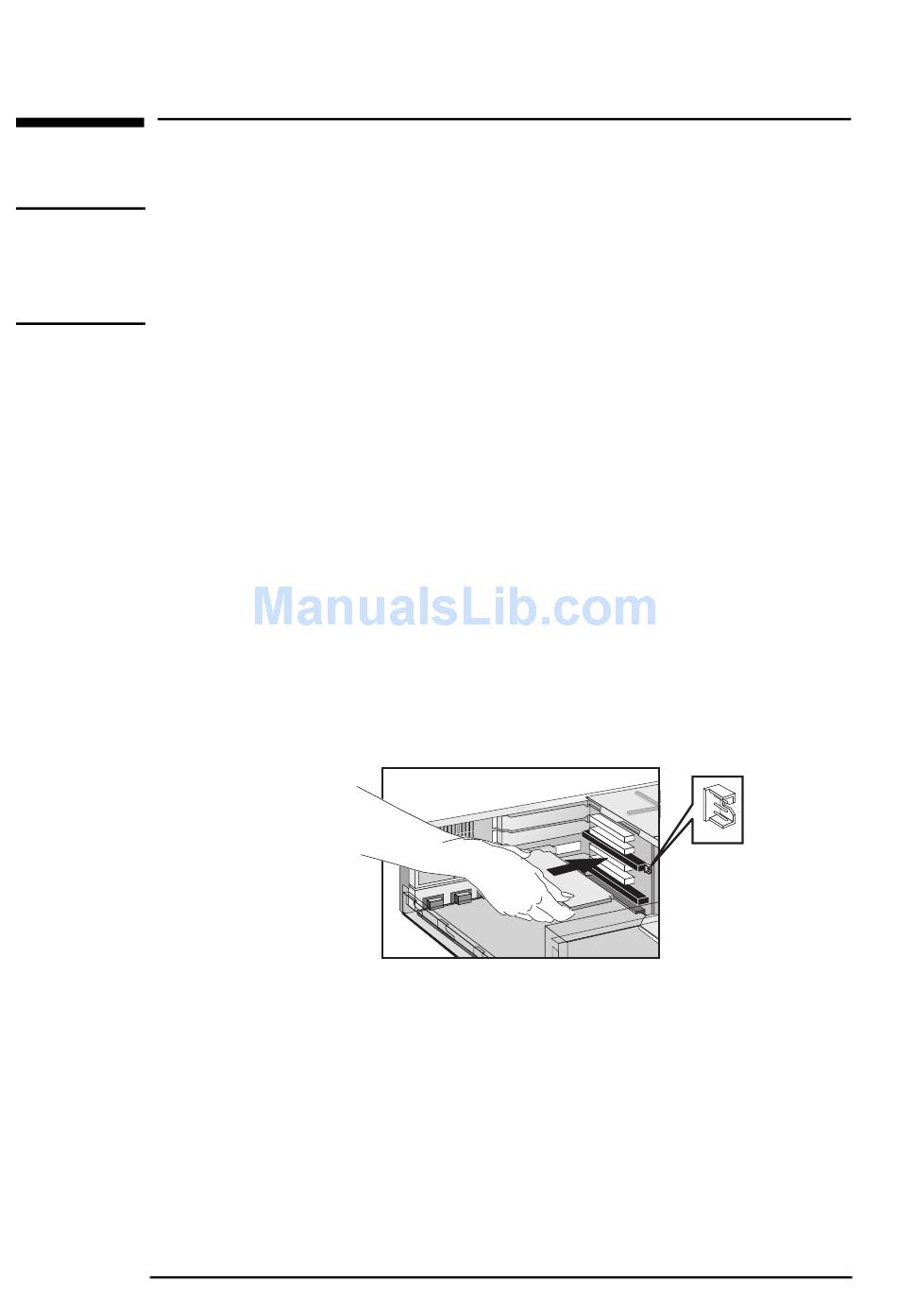

Installing the Network Interface Card
Installing the Network Interface Card
WARNING
For your safety, never remove the PC's cover without first removing
the power cord, data cables and any connection to a
telecommunications network. Always replace the cover before
switching on again.
For complete information on how to install an accessory card, refer
to your PC's documentation. This is available from your PC's
support web site (refer to page 21.) The following steps are given as
a guide:
1 With the PC turned off, disconnect the power cord and any connection
2 Choose an empty PCI slot. If you do not know how to identify a
3 Remove the metal slot cover.
4 Depending on the PC model, you may need to remove the
5 Insert the card into the accessory slot without bending it.
6 Connect the
7 Secure the card by replacing the slot cover screw or the retaining
8 Replace the cover. Reconnect the power cord and any
8 English
to a telecommunications network, and then remove the cover.
PCI slot, refer to your PC's documentation.
accessory slot's retaining bracket. Refer to your PC's
documentation, if necessary.
Remote Wake-
Up cable to the
connector on
the card and to
connector on
the system
board or
backplane.
For the
position of the Remote Wake-Up connector, "3C905C-TX NIC
Specifications" on page 22.
Refer to your PC's documentation for the position of the
connector on the system board or backplane.
bracket and its screw, as appropriate.
connection to a telecommunications network.
Example position of
Remote Wake-Up
connector.
