Page 1: User Manual
LCD TV RECEIVER USER MANUAL MODEL: L39Z10A Please read this manual carefully before using your television and keep this manual in a good place for future reference. -
Page 3: Table Of Contents
Contents Contents Caution Safety Information Accessories Technical Specification Product Introduction Front View Rear View Connections Remote Control Basic Operation OSD Menu 10-16 1. CHANNEL menu 10-11 2. PICTURE menu 3. SOUND menu 4. TIME menu 5. OPTION menu Hotel Mode Multimedia Operation 17-19 Simple Troubleshooting... -
Page 4: Caution
Caution Caution The lightening flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of un-insulated “dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 5: Safety Information
Safety information Safety information Safety information Mains supply This television is designed to operate from a 100-240 Volts 50Hz AC mains supply. Other power sources may damage it. Check that the rating plate states 100-240V AC before you plug it in for the first time. The manufacturer accepts NO liability for damage or injury caused by using the product with the wrong mains voltage. - Page 6 Safety information Safety information Batteries Remove batteries when the television is not to be used for a long time. Batteries left in equipment may cause damage through deterioration and corrosive leakage, invalidating the guarantee. To protect the environment, use local recycling facilities for battery disposal. Protect the mains lead.
-
Page 7: Accessories
Accessories & Technical Specification Accessories SOURCE AUTO PICTURE SOUND SLEEP DISPLAY VOL+ MUTE VOL- EXIT MENU TV/TXT HOLD INDEX NICAM SUBPAGE SIZE REVEAL ROOT REPEAT GOTO FAV- FAV+ ASPECT Converter cable Converter cable User’s Manual Remote control Batteries for YPBPR video for AV Technical Specification - TV System... -
Page 8: Product Introduction

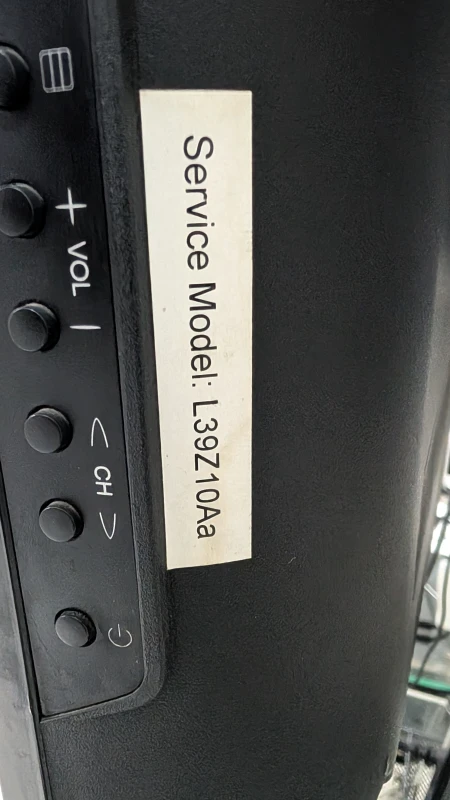

Product Introduction Product Introduction Front View Display the input source menu. Display/exit the OSD menu. Scan through channels. Adjust the volume. Turn on/standby the TV set. LED indicator Remote Control window(keep clear) (IR) Infrared Receiver: Receives IR signals from the remote control. (Power on/Standby) LED indicator: Press to turn on and off. -
Page 9: Connections
Connections Connections R in L in COAX Video R in L in HDMI1 HDMI2 AUDIO AC POWER IN SWITCH RF IN Video S-Video USB : Insert USB storage device to the USB port to view JPEG photos, or listen to MP3 music. This port is also used for software updates. -
Page 10: Remote Control
Remote Control Remote Control The remote control is using Infra-Red(IR). Point it towards the front of the TV. The remote control may not work correctly if it is operated out of range or out of angle. SOURCE POWER : Turn on/standby the TV SOURCE : Source select. - Page 11 Remote Control Remote Control SOURCE AUTO PICTURE SOUND SLEEP DISPLAY TV/TXT : Teletext on/off HOLD: Hold or carry on the current subpage VOL+ INDEX: Direct recall of page 100 MUTE NICAM: Select NICAM mode. SUBPAGE: Go to subpage VOL- SIZE: Press to see top half of page double size, Press again to see the EXIT MENU bottom half of page double size.
-
Page 12: Basic Operation
Basic Operation Basic Operation Power on/off 1. Connect to the power supply with the power cord. 2. -To turn on the TV Press POWER button on the TV or remote control. -To turn off the TV Press POWER button on the TV or remote control. Input Source select Press SOURCE button on the TV set or remote control to display input source menu, and use... -
Page 13: Osd Menu
OSD Menu OSD Menu 1. CHANNEL menu See [Basic Operation] for using the menu system. Auto Tuning Press OK button to start Auto Tuning. You could press MENU/EXIT button to exit the process of tuning, there will be a hint on the screen, and you should press <... - Page 14 OSD Menu OSD Menu Programme Edit Press OK button to enter the Program Edit menu. Delete: Highlight a channel and press the RED button, a red X will appear on the right of the program edit menu next to the channel you have chosen, then press RED button again, the program will be deleted.
-
Page 15: Picture Menu
OSD Menu OSD Menu 2. PICTURE menu See [Basic Operation] for using the menu system. Picture Mode: Choose from Dynamic,Standard,Mild and User, Set this to your preference using the<>buttons. Press OK to memorise. Note: Contrast, Brightness, Color and sharpness can be adjusted in the User mode only. They are set in the same way as picture mode. -
Page 16: Sound Menu
OSD Menu OSD Menu 3. SOUND menu See [Basic Operation] for using the menu system. Sound Mode: Allows you to select among: Standard, Music, Movie, Sports and User. Set this to your prefered setting. Treble(Could be adjusted when the sound mode is User): Controls the relative intensity of higher pitched sounds. -
Page 17: Time Menu
OSD Menu OSD Menu 4. TIME menu See [Basic Operation] for using the menu system. Clock: Use the buttons to select the clock icon, then use the buttons to Select a sub menu setting the use <and > buttons to change the setting,press EXIT to quit the menu. -
Page 18: Option Menu
OSD Menu OSD Menu 5. OPTION menu See [Basic Operation] for using the menu system. OSD Language: Allows you to select menu language. TT Language: Seclet the Teletext language. Aspect Ratio: Choose from 4:3, 16:9, Zoom1, Zoom2 and Panorama. Blue Screen: Turn on/off the blue screen function when there’s no signal. Key Lock: Turn on the function, and the buttons on the TV will be invalid. -
Page 19: Osd Menu
OSD Menu OSD Menu Hotel Mode (You have to enter the code 1001 to enter the Hotel menu as below) Hotel Mode: Turn on/off the Hotel Mode. Source Lock: Enable the input source you turn on. Default Source: Select the input source, and the TV will play the programs in the source you select when it is turned on. -
Page 20: Multimedia Operation
Multimedia Operation Multimedia Operation Basic Operation 1). Press the SOURCE button on the remote control to display the input source menu, select Media using the </>/ buttons, and press OK to enter the Multimedia menu seen below. 2). Insert USB device, you will see the name of the device displayed on the screen. USB device list MAIN MENU PHOTO MUSIC MOVIE TEXT... - Page 21 Multimedia Operation Multimedia Operation 1. Photo Play the photo Press button to select an option on the menu, and press OK button to select it. Pause: Play/pause the photo view. Prev./Next: View the previous/next photo. Stop: Stop the photo view. Repeat: Select the repeat mode from Repeat All, Repeat 1, Repeat None.
-
Page 22: Multimedia Operation
Multimedia Operation Multimedia Operation 3. Movie Play the movie Press button to select the option on the menu, and press OK button to change. Pause: Play/pause the music. FB/FF: Fast backward/fast forward. Prev./Next: Play the previous/next file. Stop: Stop the music. Repeat: Select the repeat mode from Repeat All, Repeat 1, Repeat None. -
Page 23: Simple Troubleshooting
