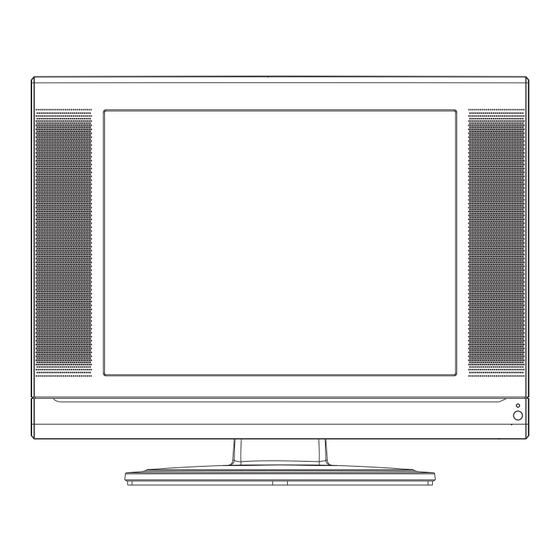

- Page 1 LCD TV RECEIVER USER'S MANUAL MODEL: L1509A-A, L1709A-A, L1910A-A, Please read this manual carefully before L2009A-A, L1911W-A using your television and keep this manual In a good place for future reference.
-
Page 2: Table Of Contents
To users: Thank you for using our LCD-TV. Before connecting the LCD-TV and turning the power on, please read this book carefully. Please keep this book for later use. When it was loss of function by electrostatic shock, please switch the on/off button for restoring the function. -
Page 3: Safety Notice Items
Safety Notice Items Incorrect usage will cause fire or electric shock. To prevent this, please do as required when you are installing, using and cleaning this machine. To insure your safety and extend the life-span of LCD-TV, please read the following items carefully before using: l Please read and understand all the instructions before operation;... -
Page 4: Front Panel Controls
Front Panel Controls L1509A-A, L1709A-A, L1910A-A, L2009A-A TV/AV MENU VOL- Control Panel Function 1. Power supply switch 2.TV/AV Select the input signals: COMPONENT/PC/AV/SV/TV 3. MENU Press to select the main menu 4. VOL- Volume down / Left orientation to adjust the item in the OSD VOL+ Volume up / Right orientation to adjust the item/Press to enter 5. -
Page 5: Connection Options
Connection Options The figure is just for reference, please see the real. And the AC power supply switch is on the back of the set) Earphone port ANT IN PC AUDIO IN PC Audio Input Connect the PC output connector from a PC to the audio input port Antenna Input Connect cable or... -
Page 6: Remote Control Key Functions
Remote Control Key Functions When using the remote control, aim it towards the remote sensor on the TV SLEEP DISPLAY MUTE NICAM AUTO AD MENU INDEX SUBCODE MIX TIME HOLD SIZE Buttons on the remote control Stand By MUTE Display current input signal information TV channel number select POWER Set time to change the TV into the... -
Page 7: Remote Control
Remote Control Installing Batteries 1.Slide open the cover of the battery compartment on the back of the remote control. 2.Load two 5# alkaline batteries in the compartment. (plus and minus poles to respective mark) 3.Replace the cover of the battery compartment. Precautions Make sure that there is no obstacle between the remote... -
Page 8: Connection Instructions
Connection Instructions Grounding Ensure that you connect the grounding / earth wire to prevent possible electric shock. If grounding methods are not possible, have a qualified electrician install a separate circuit breaker. Do not try to ground the unit by connecting it to telephone wires, lightening rods, or gas pipes. External Equipment Connections Antenna Connection - Antenna or Cable Service with a Cable Box Connections... -
Page 9: Pc Setup
Connection Instructions PC Setup You can use your LCD-TV as a monitor for your personal computer using a VGA cable (not supplied). Connection and use steps: 1.Read the user guide supplied with your computer and ensure that it has a VGA connector; 2.Make sure that the power of the LCD -TV and the PC are off;... -
Page 10: Vcr Setup
Connection Instructions VCR Setup - To avoid picture noise (interference), leave an adequate distance between the VCR and TV Connection and use steps: 1.Read the user guide supplied with your AV devices and ensure that it has Composite or S-Video connectors; 2.Make sure that the power of the LCD-TV and the AV device are off;... -
Page 11: Cable Tv Setup
Connection Instructions Cable TV Setup - After subscribing to a cable TV service from a local provider you can watch cable TV programming. The TV cannot display TV programming unless a TV tuner device or cable TV converter box is connected to the TV. - For further information regarding cable TV service, contact your local cable TV service provider(s). -
Page 12: Basic Operating Instructions
Basic Operating Instructions Turn on the LCD-TV Switch on the power button on the back of the set and the TV SLEEP DISPLAY MUTE POWER will in standby mode. When the POWER button on the remote NICAM AUTO AD TV/AV control is pressed and the LCD-TV is turned on, the indicator light on the front of the LCD-TV changes from red to green. -
Page 13: Select The Tv Channel You Want
Basic Operating Instructions Select the TV Channel You Want You can use the number keys on the remote control to directly select TV channels. The LCD-TV can store up to 100 channels , and you can press the keys on the remote control or on the panel to make a selection. -
Page 14: Menu Operations
Menu Operations * In this manual, the OSD (On Screen Display) may be different from your TV s because it is just an example to help you with the TV operation. Press TV/AV to select the input source, and the menu in the different source is different . -
Page 15: Picture Menu Options Continued
Menu Operations Picture Menu Options continued 2. Press P+/P- button to enter the picture menu and to go up and down to select the desired option . 3.Press V+/V- button to increase and decrease the level to adjust the selected option to your preference . 4. -
Page 16: Audio Menu Options Continued
Menu Operations Audio Menu Options continued You can adjust sound options to the levels you prefer. 2. Press P+/P- button to enter the audio menu and to go up and down to select the desired option . 3.Press V+/V- button to increase and decrease the level to adjust the selected option to your preference . -
Page 17: Function Menu Options
Menu Operations Function Menu Options Menu Language Selection The menus can be shown on the screen in the selected language. First select your language. Press MENU and V+/V- button until the following menu appears on the screen 2. Press P+/P- button to select LANGUAGE. 3. -
Page 18: Function Menu Options Continued
Menu Operations Function Menu Options Continued 2. TXT LANGUAGE: To switch the teletext languages. 3. TXT EAST/WEST: To select EAST or WEST . 4.BLUE SCREEN: To set On, the screen will be in blue screen after 3 seconds if there is no signal. 5. -
Page 19: Tuning Menu Options
Menu Operations Tuning Menu Options 1. Press MENU and V+/V- button until the following menu appears on the screen Note: This menu is only appears in TV mode . 2. Press P+/P- button to enter the tuning menu and to go up and down to select the desired option . -
Page 20: Tuning Menu Options Continued
Menu Operations Tuning Menu Options Continued 7. EXCHANGE : Press V+ to display the menu as follows: Press P+/- to select the item and then V+/- to adjust the channel and V+ to confirm.( For example: press P+/- to select FROM item, and then press V+/- to adjust the channel number to 1;... -
Page 21: Teletext
TELETEXT Some menu related function are not available in TELETEXT mode. MENU and AUTO AD control functions are not available in TELETEXT mode. If the TV is switched on by POWER after off in TELETEXT mode, or press TV/AV or PC button, the TELETEXT mode will disappear automatically. - Page 22 TELETEXT SUBCODE Button When Teletext information exceeds more than one page , it may take some time for the automatic changing of the sub pages to reach the sub page you require . It is possible to enter your required sub page and continue watching the normal programme until the correct sub page is found .
-
Page 23: Troubleshooting Guide
Troubleshooting Guide To assist in location possible faults use help guide below Troubleshooting No picture, no sound Blank screen No sound Poor sound No picture in some channel No color for some channel program (black and white) Spots with some or all pictures Television out of control Note:... -
Page 24: Specifications
Note Warranty card is only for the special countries and areas Note: All specifications are subject to change without notice. All quality are approximate value. L1509A-A/L1709A-A PAL/SECAM-B/G,I,D/K,L,L 1.5W+1.5W AV input PC input S-VIDEO input PC audio input Headphone output COMPONENT input Antenna input... - Page 25 V0.1 0090508262...
