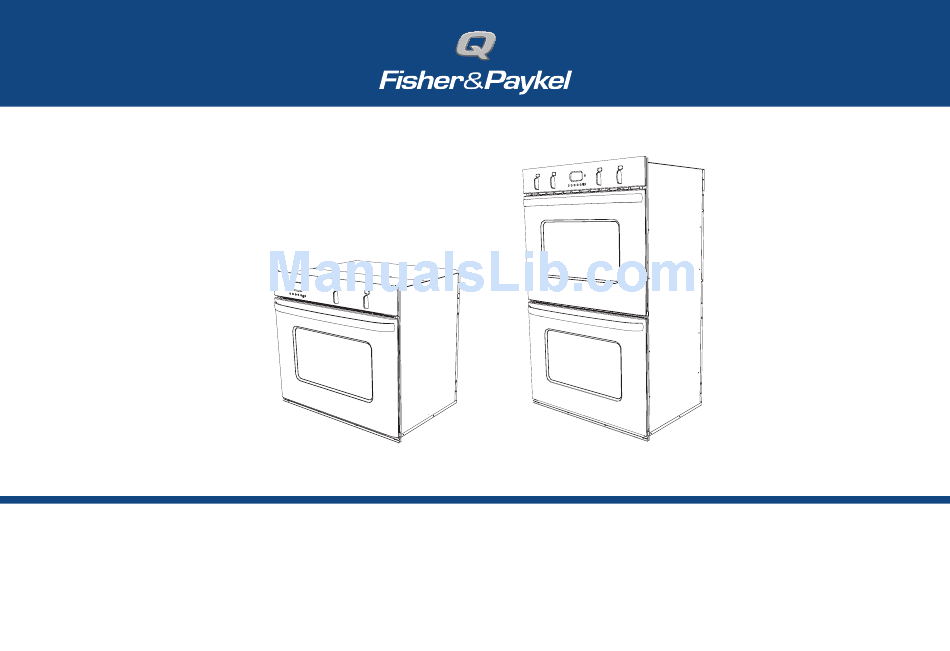

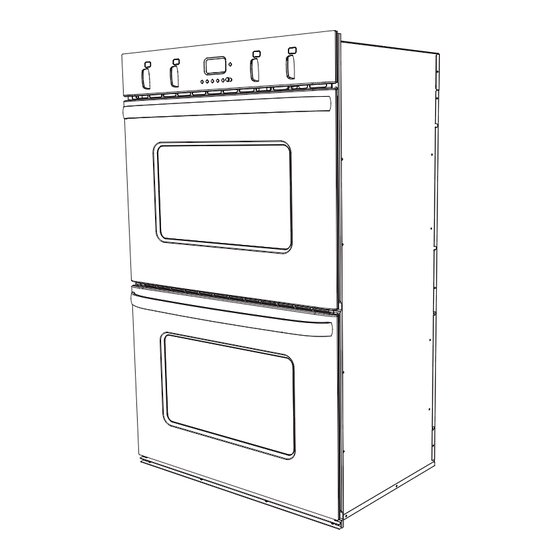

- Page 1 TITAN BUILT - IN OVENS OS301 / OD301 SERIES I M P O R TA N T - S AV E F O R T H E O V E N I N S TA L L E R ’ S U S E...
-
Page 2: Before You Start
We recommend that the outlet for the electrical supply cable is located in the right rear corner of the cabinet cavity. This allows the electrical supply cable to sit inside the rear chamfered corner of the oven and prevents it being jammed between the cabinet wall and the rear of the oven. -
Page 3: Product Dimensions
PRODUCT DIMENSIONS PAGE 3 OF 8 718mm 718mm OS301 OD301 757mm 757mm... -
Page 4: Top View
PROUD DIMENSIONS Minimum Distance Under Benchtop for Single 70mm RECESSED DIMENSIONS TOP VIEW Minimum Distance Under Benchtop for Single ovens 70mm PAGE 4 OF 8 TOP VIEW... -
Page 5: Preparing The Oven
WARNING : Do not disengage the hinge hooks when the door has been removed as they are differcult to re-engage. 3. Remove the wire shelves and oven trays by sliding them out. Use both hands to remove each item. Remove the cardboard packaging from the oven cavity. -
Page 6: Electrical Requirements
ELECTRICAL REQUIREMENTS The electrical voltage and frequency that is correct for this oven is stated on the serial number plate located inside the top vent. It is the customer responsibility to ensure that this oven is connected to the correct electrical supply. - Page 7 1. Slide the product into the oven cabinet, pushing the product between the two oven cavities or by the edges of the oven cavity. If the product does not sit flush with the front of the oven cabinet, make certain that the electrical supply cable has not jammed behind the product.
-
Page 8: Troubleshooting
6. Turn the oven function switch to ‘Bake’ and the oven temp switch to 200 should blow out of the vent at the bottom of the oven. Inside the oven cavity all three oven lights should come on. After 5 minutes open the oven door and the air inside should feel warm.
