Craftsman WEEDWACKER Incredi-Pull 316.791201 Operator's Manual
  1. Manuals
  2. Brands
  3. Craftsman Manuals
  4. Trimmer
  5. WEEDWACKER Incredi-Pull 316.791201
  6. Operator's manual
Craftsman WEEDWACKER Incredi-Pull 316.791201 Operator's Manual

Craftsman WEEDWACKER Incredi-Pull 316.791201 Operator's Manual

2-cycle weedwacker gas trimmer
Hide thumbs Also See for WEEDWACKER Incredi-Pull 316.791201:

Advertisement

Available languages

Available languages

Quick Links

Download this manual

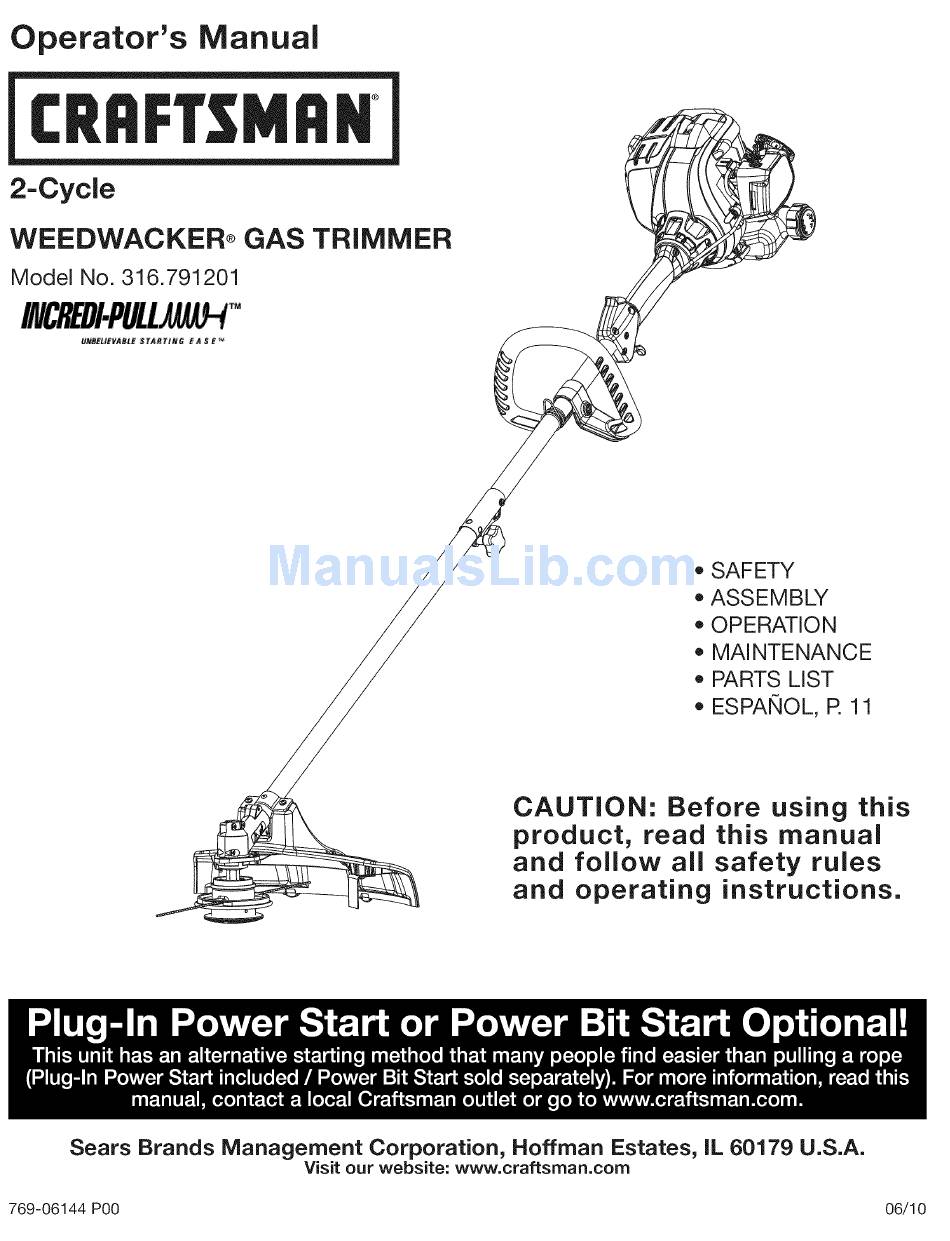

Operator's
