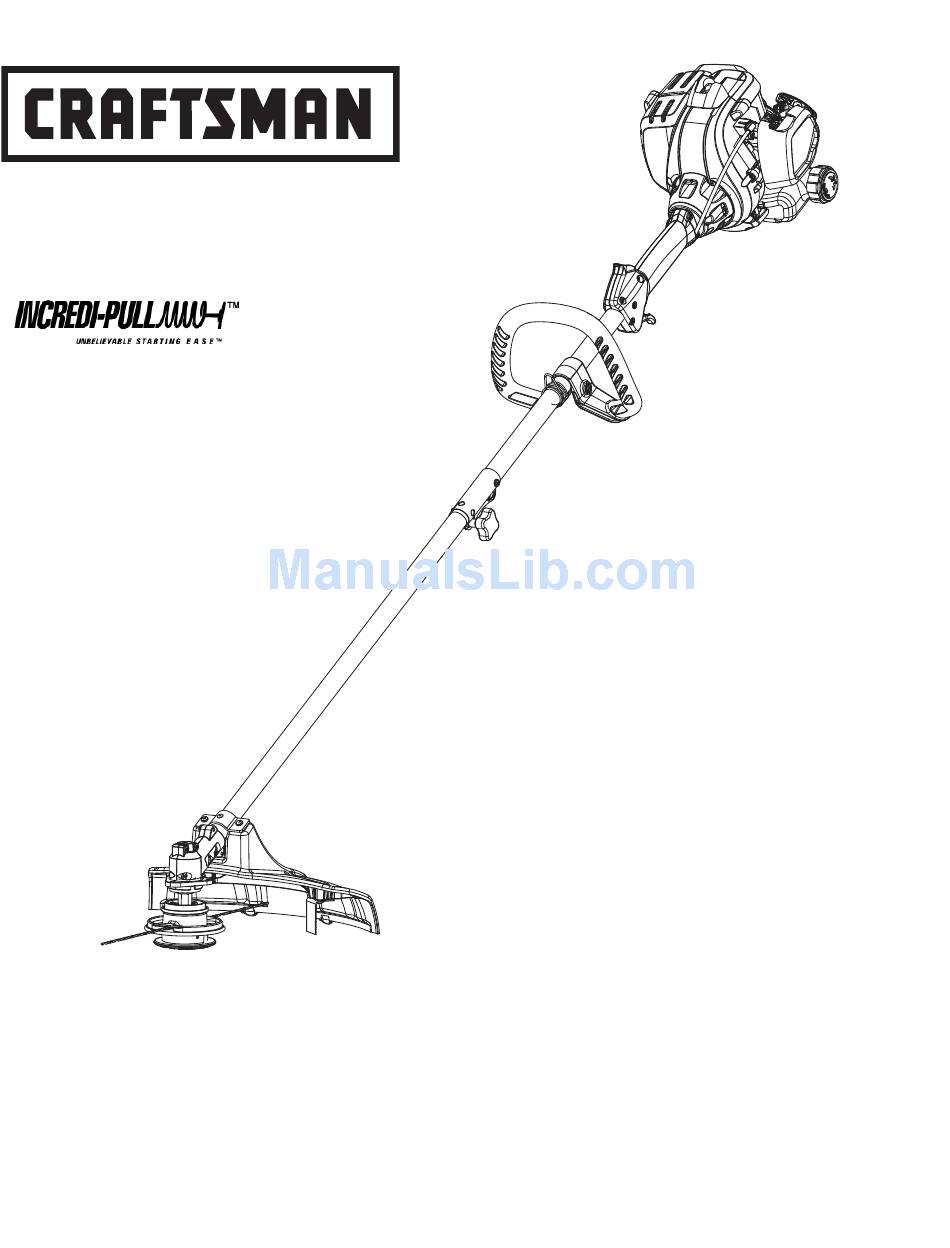

Craftsman 316.791200 Operator's Manual

2-cycle weedwacker gas trimmer

Hide thumbs Also See for 316.791200:

Download this manual See also: Operator's Manual

Operator's Manual

2-Cycle

WEEDWACKER

Model No. 316.791200

Plug-In Power Start or Power Bit Start Optional!

This unit has an alternative starting method that many people find easier than pulling a rope

(Plug-In Power Start included / Power Bit Start sold separately). For more information, read this

manual, contact a local Craftsman outlet or go to www.craftsman.com.

Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A.

769-05783 P00

GAS TRIMMER

Visit our website: www.craftsman.com

CAUTION: Before using this

product, read this manual

and follow all safety rules

and operating instructions.

• SAFETY

• ASSEMBLY

• OPERATION

• MAINTENANCE

• PARTS LIST

• ESPAÑOL, P. 11

01/10

Page 1 This unit has an alternative starting method that many people find easier than pulling a rope (Plug-In Power Start included / Power Bit Start sold separately). For more information, read this manual, contact a local Craftsman outlet or go to www.craftsman.com. Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A.
Page 2 PARTS LIST REPLACEMENT PARTS - MODEL 316.791200 2-CYCLE GAS TRIMMER Item Part No. Description Item Part No. Description 753-06282 Rear Cover Assembly (includes 2 & 3) 791-181930 Tank Screw 791-181862 Starter Screw 753-05057 Fuel Cap 753-06244 Starter Assembly Guard (includes 2)
Page 3 PARTS LIST REPLACEMENT PARTS - MODEL 316.791200 2-CYCLE GAS TRIMMER Item Part No. Description 753-04234 Throttle Housing Assembly (includes 2-4) 753-04119 Throttle Trigger 791-182690 Spring 791-182405 Switch 791-610327 Shoulder Strap Clip 753-04344 Upper Drive Shaft Housing Assembly 753-06039 D-Handle Assembly (includes 8 & 9)
