G
I
ENERAL
NSTALLATION
Here are some general safety and installation tips when installing the cameras:
Do not attempt to open a camera. There are no user-serviceable parts inside.
When using power tools wear safety goggles. Before drilling holes through a
wall or ceiling, check for hidden electricity cables and water pipes.
When installing a camera on an external wall, insert the operating cable through
the wall as close as possible to the camera to reduce the chance of tampering.
After drilling any hole though an external wall for cable, make sure the hole is
sealed around the cable using a sealant.
I
DC-1 C
NSTALLING THE
1
Select the position for the camera and install a mounting bracket (supplied).
Screws and anchors are supplied. Use an appropriate screw type for the mounting surface.
2
Screw the camera onto the bracket. Tighten the lock nut to secure the camera on
the bracket.
lock nut
thumb bolt
3
Adjust camera to the proper view angle. Make sure the lens is upright relative to your
subject. Tighten the thumb bolt.

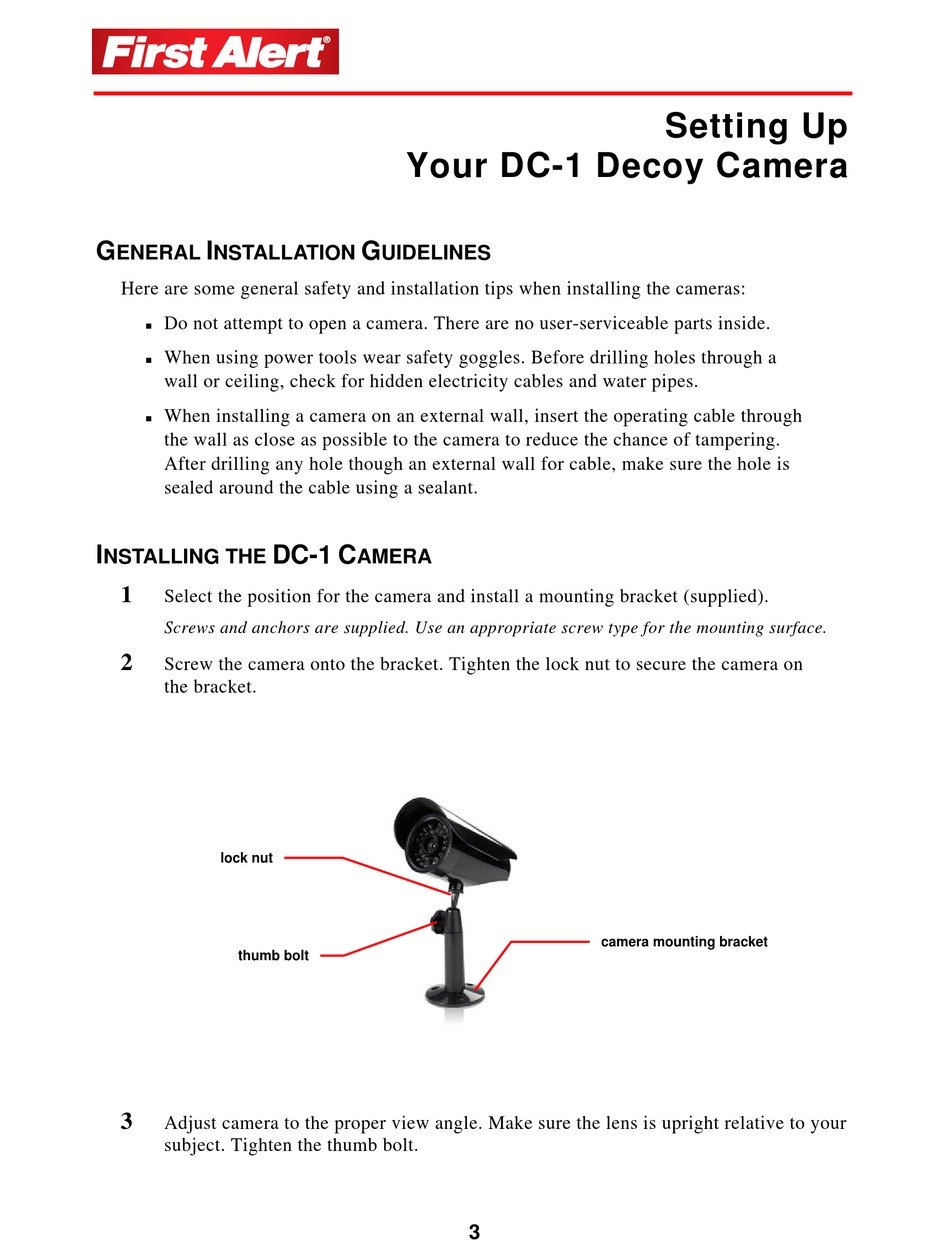

Your DC-1 Decoy Camera
G
UIDELINES
AMERA
3
Setting Up
camera mounting bracket
