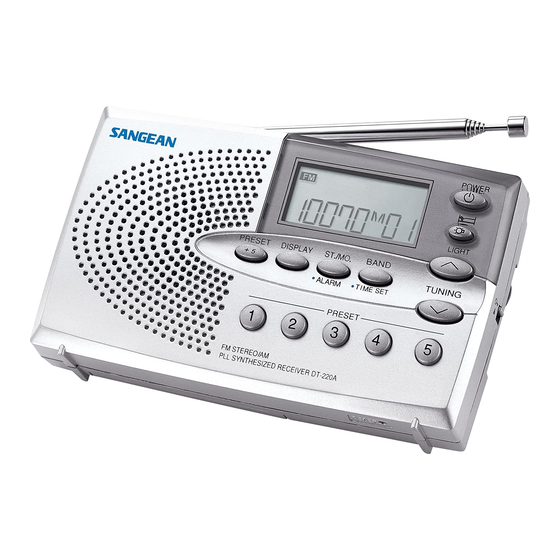

Sangean DT-220 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

DT-220
GB
Version 1

Advertisement

Table of Contents
loading

Related Manuals for Sangean DT-220

Summary of Contents for Sangean DT-220

  • Page 1 DT-220 Version 1...

  • Page 4: Display Symbol

    Display Symbol FM/LW radio band Memory Delete Radio AM band and Auto Preset AM/PM (on 12 hours Memory Set version) Alarm set RDS station FM Stereo Time symbol Low battery Steady – RDS Clock Time Lock Flash - Manual Time Setting Display frequency, RDS Traffic Information radio station and time...

  • Page 5: Power Supply

    Power Supply The set can be operated by - Two 1.5V batteries (IEC 46 or UM-3 or AA sizes) - DC 3V power adapter (not supplied) to connect to 3V DC jack Connector plug 6 mm dia., negative pole inside (center negative) . Insert two 1.5V batteries into the battery compartment.

  • Page 6: Radio Operation

    Alarm time (Standby) set To set the alarm only when radio is off. Press Standby button , display alarm icon also last alarm time will appear. Press Standby button again for more than 2 seconds until display alarm icon also last alarm time flashes. Press tuning UP/DOWN button to set the alarm hour then press Standby button again to set the minute.

  • Page 7: Manual Station Tuning

    Manual station tuning If the transmission frequency of a desired station is known, manual tuning is advisable. Press the Tuning UP/DOWN button intermittently until the desired frequency is reached. The tuning increments are: FM: 50 kHz MW (AM): 9 kHz and also 10 kHz. LW: 9 kHz ( with LW version only) Adjusting the antenna a) FM band...
  • Page 8 If all the PRESETS being stored already, display will show FUL. (FM band) or FULL ( MW band), in this case if you still require to store the station, press MEMO button again, the previous PRESET station will be deleted and replace with the new station. Recall the PRESET station Simply turn on the POWER, select the required band and using PRESET +/- button for your desired...
  • Page 9 Auto memory the stations Turn on radio power, press tuning UP/DOWN buttons at the same time for more than 2 seconds, display auto memo will flash, the radio will auto memory the stations it can find from current landed frequency until memory is full.

  • Page 10: Light Button

    MW (AM) tuning step The initial tuning step on MW step is set at 9 kHz every tune, however if travel into Northern America ( Canada and USA ) where tuning step is 10 kHz tuning step. You have to change the tuning step on MW band.
  • Page 11 Switch from earphones to speaker and vice versa. Volume Control Adjust volume control for comfortable listening. RDS functions The DT-220 equips with 4 different RDS functions: 1) CT (Clock Time): Automatic adjustment of time. 2) PS (Program Service): Display of station name in 8 characters .
  • Page 12 CT (Clock Time) – Clock auto adjustment Besides the possibility to set the clock manually, with the help of RDS-CT function, the correct time can be set with the auto clock adjustment button. When button is pressed once, the CT-function is on and display is flashing and when the CT- function can set the time, the will stop flashing and...
  • Page 13 In order to listening traffic information, just press Traffic-info button and display car symbol appears indicating TA-function is on. And when TP/TA is coming/activating (the traffic announcement is not continuously sending but only when it is important/meaningful traffic news, for example, traffic accident or urgent ambulance traffic on the way), the normal radio program is stopped at once and traffic announcement is coming instead...
  • Page 14 Therefore if you like to listen to traffic information, the TA must be on standby mode (by pressing Traffic- info button and car symbol appears on the display). TA with EON– Enhanced Other Networks The EON function extends the radio function by enabling it to track other stations transmitting the EON data while it is tuned to a network station.
  • Page 15 If no alternative frequency is found, “ NO AF” appears in the display. Auto-wind system earphones The DT-220 equips with auto-wind system earphones for easy storage and usage of the earphones. Pulling out the earphones softly as the drawing and make sure to switch earphones/speaker button earphones position while listening via earphones.

  • Page 16: Reset Switch

    Earphones Jack Other than the auto wind earphones, the DT-220 also equips with a earphones jack so that you may use your favorite earphones with a 1/8 inch plug. When you plug in the earphones, make sure to switch earphones/speaker button to earphones position.

  • Page 17: Specifications

    2. Use and store the receiver only in normal temperature environment. High temperatures can shorten the life of electronic devices, damage batteries and distort or melt plastic parts. 3. Handle the receiver gently and carefully. Dropping it can damage circuit boards and cases which may cause the receiver to work improperly.
