- Page 1 ® DEFENDER Full Flow Magnetic Filter Model: MD22...

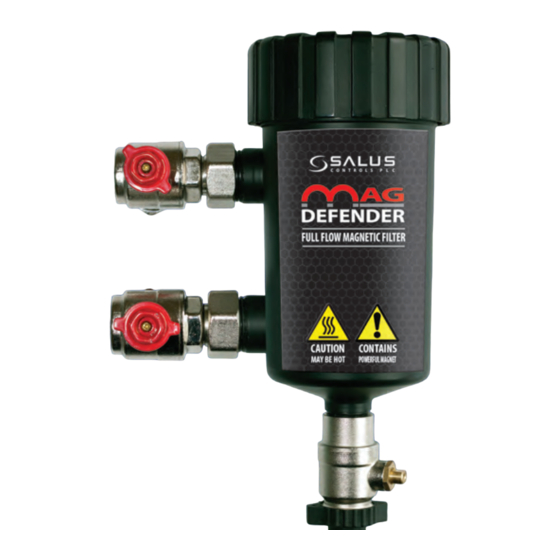

- Page 2 The SALUS Mag Defender offers system protection and increased efficiency, as it has been designed to remove the suspended iron oxide particles without reducing flow rate through the system.
-
Page 3: Installation
How to service and clean INSTALLATION In order to achieve the best protection for the boiler, it is recommended that the Mag Defender is fitted after the last radiator before the boiler. Header Tank Boiler Vent Pipe Pump Boiler RETURN RETURN MD22 INSTRUCTION MANUAL... - Page 4 The following instructions are designed to assist engineers in the safe and effective installation and servicing of the SALUS Mag Defender and should be followed at all times. Any queries arising from either installation or servicing, contact SALUS Controls direct on 01226 323961.
- Page 5 Tip: Reuse the cut out section. Prepare the pipe and fittings, lubricate the olives and connect the valves on the pipe work, please only hand tighten the connections at first. MD22 INSTRUCTION MANUAL...
- Page 6 (There are 2 supplied with this product). Loosely secure the Mag Defender to the valves. Grip the Mag Defender tighten compression fittings being careful not to over tighten as this may cause damage. MD22 INSTRUCTION MANUAL...
- Page 7 Bleed the device again after system reached temperature. Take care as the water will be hot. Replace drain cap. Always service the filter before leaving the premises. The Mag Defender spanner can be left with the customer. MD22 INSTRUCTION MANUAL...
- Page 8 Using the Mag Defender spanner provided turn both isolation valves to the OFF position. Using the Mag Defender spanner provided, carefully unscrew the lid. MD22 INSTRUCTION MANUAL...
- Page 9 Remove the inner lid and magnet assembly. Withdraw the snorkel and mesh filter. Some debris may stick to the snorkel, however the majority will fall to the bottom of the canister. Rinse snorkel and mesh filter under the tap. MD22 INSTRUCTION MANUAL...
- Page 10 Use the drain valve cap key to open the valve. Ensure you have a bucket underneath to collect the spillage. Open the drain valve fully and drain the Mag Defender into a bucket. Rinse the canister with fresh water. MD22 INSTRUCTION MANUAL...
- Page 11 Insert snorkel and mesh filter. Insert magnet. Now replace the lid onto the canister and tighten with the Mag Defender spanner. (Do not over tighten). Close drain valve and replace cap. MD22 INSTRUCTION MANUAL...
- Page 12 (using the cap as a tool) to purge air from the device. Close the drain valve once water starts to flow. Bleed the device again after system reached temperature. Take care as the water will be hot. Replace drain cap. MD22 INSTRUCTION MANUAL...
- Page 13 After step 9 in servicing, pour a bottle water treatment corrosion and scale inhibitor, we suggest SALUS SYSTEM GUARD Inhibitor. The canister will hold 500ml and the inhibitor should be poured down the outer edge of the snorkel. DO NOT POUR DOWN CENTRE...
-
Page 14: Questions And Answers
Servicing is required once a year with the annual boiler service. Can I use chemicals with the Mag Defender? Yes, you can use any chemical on the market with Mag Defender, however we recommend you use SALUS SYSTEM GUARD products with the Mag Defender. MD22 INSTRUCTION MANUAL... - Page 15 As with all magnetic products, if you have a pacemaker caution should taken when handling Mag Defender at all times. When the Mag Defender is installed, the magnetic field outside the canister is approximately one tenth of an average fridge magnet. MD22 INSTRUCTION MANUAL...
- Page 16 The inlet and outlet on the MAG Defender are reversible and there is no flow restriction. Following installation, don’t forget to complete the warranty card. Alternatively, complete the registration online at www.salus-tech.com. Faulty components must be returned under the SALUS warranty process. NOTES MD22 INSTRUCTION MANUAL...
-
Page 17: Warranty
WARRANTY SALUS Controls warrants that this product will be free from any defect in materials or workmanship, and shall perform in accordance with its specification, for a period of five years from the date of installation. SALUS Controls sole liability... - Page 18 SALUS recommends the use of SALUS SYSTEM GUARD products with the MAG DEFENDER. MD22 INSTRUCTION MANUAL...
- Page 19 For more products in the SALUS range visit... www.salus-tech.com MD22 INSTRUCTION MANUAL...
- Page 20 1 x ‘O’ EPDM ring, 2 inlet/outlet washers Servicing Kit - salus-tech. Sales Email: sales@salus-tech.com Tel: 01226 323961 Technical Email: tech@salus-tech.com Tel: 01226 323961 SALUS Controls plc, SALUS House, Dodworth Business Park South, Whinby Road, Dodworth, Barnsley S75 3SP SALUS DOC No. 00004...
