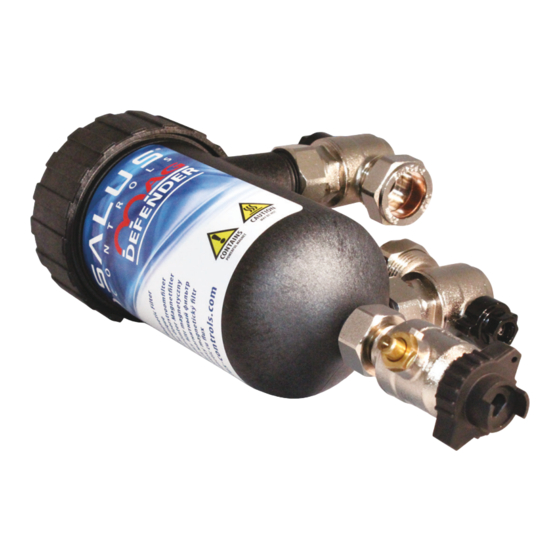

- Page 1 DEFENDER DEFENDER Full Flow Magnetic Filter Full Flow Magnetic Filter Models: MD22A Full Flow Magnetic Filter O P E R A T I O N M A N U A L...
- Page 2 The SALUS Mag Defender offers system protection and increased efficiency, as it has been designed to remove the suspended iron oxide particles without reducing flow rate through the system.
-
Page 3: How To Install
How to service and clean INSTALLATION In order to achieve the best protection for the boiler, it is recommended that the Mag Defender is fitted after the last radiator before the boiler. Header Tank Boiler Vent Pipe Pump Boiler RETURN RETURN MD22A INSTRUCTION MANUAL... - Page 4 The following instructions are designed to assist engineers in the safe and effective installation and servicing of the SALUS Mag Defender and should be followed at all times. Any queries arising from either installation or servicing, contact SALUS Controls direct on 01226 323961.
- Page 5 22mm copper pip to attach between the respective elbow and compression fitting on the inlet/outlet. Tip: Reuse the cut out section. Prepare the pipe and fittings, lubricate the olives and connect the valves on the pipe work, only hand tighten the connections at first. MD22A INSTRUCTION MANUAL...
- Page 6 Fit the drain valve assembly to the bottom of the Mag Defender making sure the outlet is at the front of the assembly and being careful not to overtighten as this may cause damage. Loosely secure the Mag Defender to the valves. MD22A INSTRUCTION MANUAL...
- Page 7 NOTE: Drain valve closed Bleed through top air vent, bleed the MD22A again after the system has reached temperature. Take care as the water may be hot. Always service (see page 8) the filter before leaving the premises.
- Page 8 Using the Mag Defender spanner provided turn both isolation valves to the OFF position. Remove magnet and put in a safe place. MD22A INSTRUCTION MANUAL...
- Page 9 After approximately 30 seconds, remove drain valve cap and use to open drain valve. Have bucket or pipe connection ready to collect debris. Open inlet to flush out debris. Once all debris has been flushed re-insert the magnet. MD22A INSTRUCTION MANUAL...
- Page 10 Close drain valve using drain cap, ensure the cap is alligned correctly so the valve is fully closed. Open outlet. Replace cap on drain valve and run the central heating system. Bleed air through air vent if required. MD22A INSTRUCTION MANUAL...
-
Page 11: Chemical Dosing
CHEMICAL DOSING After step 4 in servicing, close inlet valve. Close drain valve using drain cap, ensure the cap is alligned correctly so the valve is fully closed. Replace cap on drain valve. MD22A INSTRUCTION MANUAL... - Page 12 Using the MAG Defender spanner provided, carefully unscrew the lid. Remove magnet cover and rinse under tap if required. Pour a bottle of water treatment corrosion and scale inhibitor, we suggest SALUS Inhibitor. The canister will hold 500ml. MD22A INSTRUCTION MANUAL...
- Page 13 Re-insert magnet cover. Now replace the lid onto the canister and tighten with the Mag Defender spanner. (Do not over tighten). Re-insert magnet. MD22A INSTRUCTION MANUAL...
- Page 14 Open the isolation valves and start the heating system. Bleed through top air vent, bleed the MD22A again after the system has reached temperature. Take care as the water will be hot. Always service the filter before leaving the premises. The Mag Defender spanner can be left with the customer.
- Page 15 The inlet and outlet on the Mag Defender are reversible and there is no flow restriction. Following installation, don’t forget to complete the warranty card. Alternatively, complete the registration online at www.salus-tech.com. Faulty components must be returned under the SALUS warranty process. NOTES MD22A INSTRUCTION MANUAL...
-
Page 16: Questions And Answers
Servicing is required once a year with the annual boiler service. Can I use chemicals with the Mag Defender? Yes, you can use any chemical on the market with Mag Defender, however we recommend you use SALUS LX products with the Mag Defender. MD22A INSTRUCTION MANUAL... - Page 17 As with all magnetic products, if you have a pacemaker caution should be taken when handling the Mag Defender at all times. When the Mag Defender is installed, the magnetic field outside the canister is approximately one tenth of an average fridge magnet. MD22A INSTRUCTION MANUAL...
-
Page 18: Warranty
SALUS Controls sole liability for breach of this warranty will be (at its option) to repair or replace the defective product. - Page 19 For more products in the SALUS range visit... www.salus-tech.com MD22A INSTRUCTION MANUAL MD22A INSTRUCTION MANUAL...
- Page 20 Mag Defender Spanner Instruction manual including warranty form www.salus-tech.com Sales Email: sales@salus-tech.com Tel: 01226 323961 Technical Email: tech@salus-tech.com Tel: 01226 323961 SALUS Controls plc, SALUS House, Dodworth Business Park South, Whinby Road, Dodworth, Barnsley S75 3SP SALUS DOC No. 00004 VER020...
