  6. Important safety instructions manual

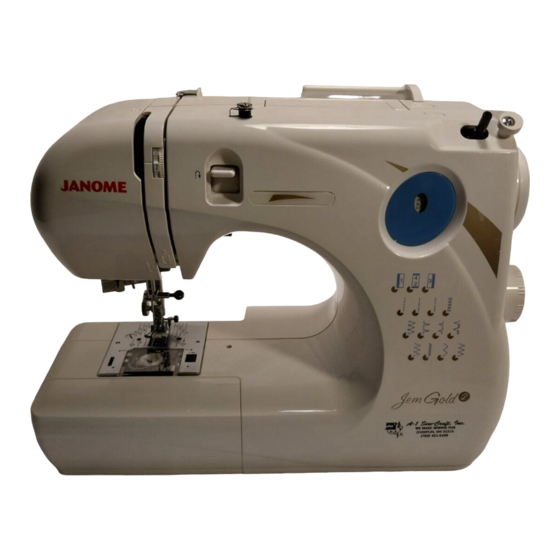

Janome Sewing Machine Important Safety Instructions Manual

Hide thumbs Also See for Sewing Machine:
Table of Contents

Advertisement

Quick Links

See also: Instruction Book , Instruction Manual
When using an electrical appliance, basic safety precautions should always be followed, including the following:
Read all instructions before using this appliance.
DANGER
— To reduce the risk of electric shock:
1.
An appliance should never be left unattended when plugged in. Always unplug this sewing machine from the electric outlet
immediately after using and before cleaning.
2.
Always unplug before replacing a sewing machine bulb. Replace bulb with same type rated 15 Watts.
WARNING
1.
Do not allow this sewing machine to be used as a toy. Close attention is necessary when this sewing machine is used by or
near children.
2.
Use this appliance only for its intended use as described in this owner's manual. Use only attachments recommended by the
manufacturer as contained in this owner's manual.
3.
Never operate this sewing machine if it has a damaged cord or plug, if it is not working properly, if it has been dropped or
damaged, or dropped into water.
Return this sewing machine to the nearest authorized dealer or service center for examination, repair, electrical or
mechanical adjustment.
4.
Never operate the appliance with any air opening blocked. Keep ventilation openings of this sewing machine and foot
controller free from accumulation of lint, dust and loose cloth.
5.
Never drop or insert any object into any opening.
6.
Do not use outdoors.
7.
Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
8.
To disconnect, turn all controls to the off ("O") position, then remove plug from outlet.
9.
Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
10. Keep fingers away from all moving parts. Special care is required around the sewing machine needle.
11. Always use the proper needle plate. The wrong plate can cause the needle to break.
12. Do not use bent needles.
13. Do not pull or push fabric while stitching. It may deflect the needle, causing it to break.
14. Switch this sewing machine off ("O") when making any adjustment in the needle area, such as threading the needle, changing
the needle, threading the bobbin, changing the presser foot, and the like.
15. Always unplug this sewing machine from the electrical outlet when removing covers, lubricating, or when making any other
adjustments mentioned in this owner's manual.
IMPORTANT SAFETY
INSTRUCTIONS
— To reduce the risk of burns, fire, electric shock or injury to persons:
SAVE THESE INSTRUCTIONS
1

Advertisement

Table of Contents
loading

Related Manuals for Janome Sewing Machine

Summary of Contents for Janome Sewing Machine

  • Page 1: Important Safety Instructions

    Use this appliance only for its intended use as described in this owner’s manual. Use only attachments recommended by the manufacturer as contained in this owner’s manual. Never operate this sewing machine if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SECTION I NAMES OF PARTS Names of Parts ...................................3 • How to attach the spool pin ..............................3 Standard Accessories and Storage Place ........................... 4 • Free arm ....................................4 SECTION II GETTING READY TO SEW Connecting Machine to Power Supply ............................5 Controlling Sewing Speed .................................5 •...

  • Page 3: Section I Names Of Parts

    SECTION I NAME OF PARTS Names of Parts • How to attach the spool pin Spool pin Setting hole * Insert the spool pin into the hole as shown. (The spool pin is in the accessory bag.) Bobbin winder spindle Thread take-up lever Thread tension dial Thread cutter...

  • Page 4: Standard Accessories And Storage Place

    Standard Accessories and Storage Place The following accessories are stored in the extension table. Bobbins Needles Seam ripper Screwdriver Overedge foot Buttonhole foot Spool holder (large) Spool holder (small) Spool pin • Free arm The extension table provides an extended sewing area and can be easily removed for free arm sewing.

  • Page 5: Section Ii Getting Ready To Sew Connecting Machine To Power Supply

    Foot control for 240V Operating Instructions: Foot Controller Model YC-482J or TJC-150 is used with Sewing Machine Model 661. This appliance has a polarized plug (one blade wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way.

  • Page 6: Changing Needles

    Changing Needles • Changing needles Turn off the power switch. Raise the needle by turning the handwheel towards you and lower the presser foot. Loosen the needle clamp screw q by turning it counterclockwise. Remove the needle from the clamp. Insert the new needle into the needle clamp with the flat side w to the rear.

  • Page 7: Pattern Selection

    Pattern Selection Raise the needle, turn the pattern selector dial to select the desired pattern. Note: Do not turn the pattern selector dial while the needle is in the fabric, otherwise the needle may bend or break. Pattern indication window Pattern selector dial Presser Foot Lifter The presser foot lifter raises and lowers the presser foot.

  • Page 8: Preparation Of The Bobbin Thread

    Preparation of the Bobbin Thread • Removing the bobbin Gently slide the hook cover plate release button q to the right and remove the cover plate w. Lift out the bobbin e. Hook cover plate release button Hook cover plate Bobbin •...

  • Page 9: Winding The Bobbin

    • Winding the bobbin Pull the handwheel away from the machine to disengage the clutch. x Guide the thread around the thread guide q and bobbin winder thread guide w in order as illustrated. Thread guide Bobbin winder thread guide Thread through the hole in the bobbin from the inside to the outside.

  • Page 10: Inserting The Bobbin

    • Inserting the bobbin Place the bobbin in the bobbin holder with the thread running off as illustrated. Bobbin Bobbin holder End of thread Guide the thread into the notch (A) on the front side of the bobbin holder. Draw the thread to the left, sliding it between the tension spring blades.

  • Page 11: Threading The Machine

    Threading the Machine • To set the needle thread Raise the presser foot with the presser foot lifter q. Lead the thread from the spool and pass it through the thread guide w. Then draw it down along the right slot. Presser foot lifter Thread guide Then, down around the thread guide plate e.

  • Page 12: Using The Needle Threader

    • Using the needle threader Turn the handwheel toward you to raise the needle to its highest position. Hold the needle threader knob q and pull it down to its lowest position. Needle threader knob Push the needle threader knob q to the back so that the hook e is coming out from the backside of the needle eye.

  • Page 13: Drawing Up The Bobbin Thread

    • Drawing up the bobbin thread Raise the presser foot and hold the needle thread lightly with your left hand. Needle thread Turn the handwheel slowly towards you one complete turn. Bring the bobbin thread up by pulling the needle thread as illustrated.

  • Page 14: Section Iii Basic Sewing

    SECTION III BASIC SEWING Straight Stitch Sewing Machine setting Stitch selector: Presser foot: Zigzag foot A Thread tension dial: Note: There are 3 types of stitch length selection. • Starting to sew Raise the presser foot and position the fabric with its edge next to a stitching guide line on the needle plate.

  • Page 15: Using The Seam Guides On The Needle Plate

    • Using the seam guides on the needle plate The seam guides on the needle plate and hook cover plate help you to measure seam width. * The numbers indicate the distance between the center needle position and the guide line. ˝...

  • Page 16: Balancing Needle Thread Tension

    Balancing Needle Thread Tension • Choose the correct tension For straight stitch: The ideal straight stitch will have threads locked between the two layers of the fabric, as illustrated (magnified to show detail). If you look at the top and bottom of the seam, you will notice that there are no gaps.

  • Page 17: Section Iv Utility Stitches Zigzag Stitching

    SECTION IV UTILITY STITCHES Zigzag Stitching Machine setting: Stitch selector: Presser foot: Zigzag foot A Thread tension dial: The zigzag stitch is one of the most versatile stitches on your machine. It can be a utility stitch for sewing on buttons, buttonholing, hemming, overcasting, mending and darning.

  • Page 18: Section V Decorative Stitching Shell Tuck

    SECTION V DECORATIVE STITCHING Shell Tuck Machine setting: Stitch selector: Presser foot: Zigzag foot A Thread tension dial: Use a lightweight fabric (tricot, for example). Fold the fabric on the bias and stitch on the fold. Allow the needle to just clear the folded edge to create a shelled edge. You may need to increase the needle thread tension slightly.

  • Page 19: Buttonhole

    Buttonhole Machine setting: Stitch selector: Presser foot: Buttonhole foot Thread tension dial: * Before you sew the actual buttonholes on the actual garment, make several trial buttonholes on a fabric sample. * Use interfacing on stretch fabrics. Select BH 1( ).

  • Page 20: Embroidery

    Embroidery Machine setting Stitch selector: Presser foot: Remove Thread tension dial: r Feed dogs Dropped Note: There are 3 types of stitch length selection. Drop the feed dogs and remove the foot holder. Draw a design on the fabric with tailor's chalk. Stretch the fabric between embroidery hoops, and place the hoops under the needle.

  • Page 21: Section Vi Care Of Your Machine Caution

    SECTION VI CARE OF YOUR MACHINE Caution Before performing cleaning or maintenance, make sure that the sewing machine is unplugged from the power source. * Turn the handwheel towards you to raise the needle before cleaning. * Do not dismantle the machine other than explained on this page.

  • Page 22: Replacing The Bobbin Holder

    • Replacing the bobbin holder Insert the bobbin holder so that the knob fits next to the stopper in the race. Insert the bobbin. Knob Stopper Replace the needle plate, inserting the two needle plate guide pins into the holes in the needle plate. Tighten the screw firmly with the screwdriver.

  • Page 23: Troubleshooting

    TROUBLESHOOTING Condition Cause Reference 1. The needle thread is not threaded properly. Refer to page 11 The needle 2. The needle thread tension is too tight. Refer to page 16 thread breaks. 3. The needle is bent or blunt. Refer to page 6 4.
  • Page 25 Printed in Taiwan 661-800- 038 (E)

This manual is also suitable for:

Jem gold 2 661
