RME Driver-CD Power supply 3. Power Supply The supplied wall-wart AC adapter provides 12 V AC to the ADI-1. Therefore the polarity doesn't matter. Using the ADI-1 with common universal (DC) power supplys is not possible! The device won't be damaged, but will not operate. Please use only the supplied adapter from RME. -
Page 3: Brief Description And Characteristics
4. Brief Description and Characteristics The ADI-1 is a compact 2-channel analog to digital and digital to analog converter in a half rackspace enclosure. AD- and DA-circuit can be used completely independent from each other. Newest 20 bit converters using 128 times oversampling result in more than 100 dB dynamic ratio. -
Page 4: Usage
Consumer format at their professional inputs at all and won't accept the digital signal from the ADI-1. Transferring digital data into a PCI bus equipped computer is best done using RME's digital in- terface cards of the DIGI96 Series. These cards with highest reputation are the ultimate solution for master and multitrack tasks. -
Page 5: Digital To Analog
Three LEDs on the front panel display the actual sample rate (32 kHz, 44,1 kHz, 48 kHz). As the ADI-1 is able to sync to any signal in the range of 25 kHz to 60 kHz (including varispeed ope- ration) no LED might be active in case the actual sample frequency has a deviation of more than ±... -
Page 6: Digital Input
1 of the XLR connector. Thanks to a lightning fast PLL ADI-1 is able not only to operate with common (fixed) sample frequencies, but with every frequency in the range of 25 kHz to 60 kHz. The digital input serves as synchronisation source. -
Page 7: Controls And Connectors

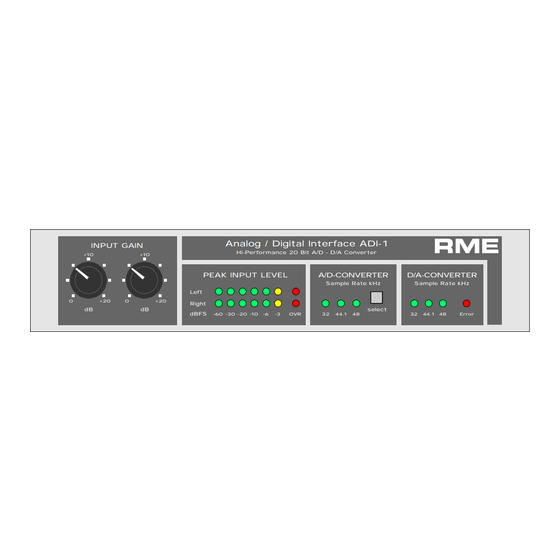

9. Controls and Connectors Front panel Analog / Digital Interface ADI-1 INPUT GAIN Hi-Performance 20 Bit A/D - D/A Converter PEAK INPUT LEVEL A/D-CONVERTER D/A-CONVERTER Sample Rate kHz Sample Rate kHz Left Right select dBFS -60 -30 -20 44.1 44.1 48... -
Page 8: 10 Warranty
RME’s liability is limited to the repair or the replacement of the product, and does in no way in- clude the liability for incidental or consequential damages resulting from using the ADI-1. - Page 9 Consult the dealer or an experienced radio/TV technician for help. In order for an installation of this product to maintain compliance with the limits for a Class B device, shielded cables must be used for the connection of any devices external to this product. User's Guide ADI-1 © RME...
