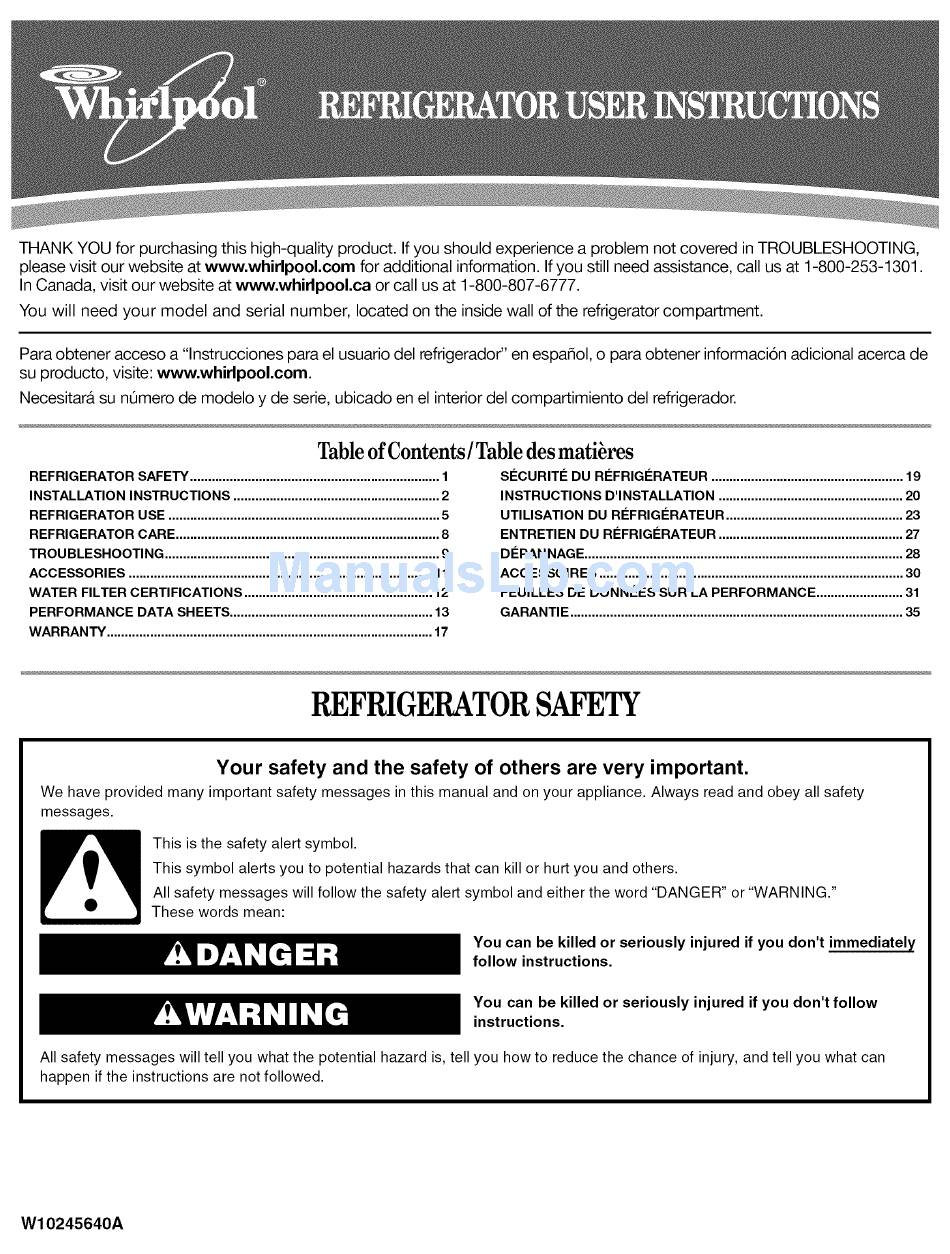

THANK YOU for purchasing this high-quality product. If you should experience a problem not covered in TROUBLESHOOTING,
please visit our website at www.whirlpool.com
for additional information. If you still need assistance, call us at 1-800-253-1301.
In Canada, visit our website at www.whirlpool.ca
or call us at 1-800-807-6777.
You will need your model and serial number, located on the inside wall of the refrigerator compartment.
Para obtener acceso a "lnstrucciones para el usuario del refrigerador" en espa_ol, o para obtener informaci6n adicional acerca de
su producto, visite: www.whirlpool.coa.
Necesitara su nQmero de modelo y de serie, ubicado en el interior del compartimiento del refrigerador.
Tableof Contents/ Tabledes matibres
REFRIGERATOR
SAFETY .....................................................................
1
INSTALLATION
INSTRUCTIONS
.........................................................
2
REFRIGERATOR
USE ...........................................................................
5
REFRIGERATOR
CARE .........................................................................
8
TROUBLESHOOTING
............................................................................
9
ACCESSORIES
....................................................................................
11
WATER FILTER CERTIFICATIONS
....................................................
12
PERFORMANCE
DATA SHEETS ........................................................
13
WAR RAN TY ..........................................................................................
17
SI_CURITI_ DU RI_FRIGI_RATEUR .....................................................
19
INSTRUCTIONS
D'INSTALLATION
...................................................
20
UTILISATION
DU RI_FRIGI_RATEUR .................................................
23
ENTRETIEN DU RI=FRIGI=RATEUR ...................................................
27
DI_PANNAGE ........................................................................................
28
ACCESSOIRES
....................................................................................
30
FEUlLLES DE DONNI=ES SUR LA PERFORMANCE ........................ 31
GARANTIE ............................................................................................
35
REFRIGERATOR S AFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow
instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
W10245640A

Advertisement

Table of Contents
loading

Summary of Contents for Whirlpool GD5NVAXWA00

  • Page 1 If you still need assistance, call us at 1-800-253-1301. In Canada, visit our website at www.whirlpool.ca or call us at 1-800-807-6777. You will need your model and serial number, located on the inside wall of the refrigerator compartment.
  • Page 2: Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING: To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions: • Use nonflammable cleaner. • Plug into a grounded 3 prong outlet. • Keep flammable materials and vapors, such as gasoline, •...
  • Page 3: Tools Needed

    Electrical Shock Hazard Explosion Hazard Keep flammable materials and vapors, such as Plug into a grounded 3 prong outlet. gasoline, away from refrigerator. Do not remove ground prong. Failure to do so can result in death, explosion, or fire. Do not use an adapter. Do not use an extension cord.
  • Page 4 6. Fasten shutoff valve to cold water pipe with pipe clamp. Be Water Pressure sure outlet end is solidly in the 1/4"(6.35 mm) drilled hole in the water pipe and that washer is under the pipe clamp. Tighten A cold water supply with water pressure of between 30 and packing nut.
  • Page 5: Refrigerator Use

    4. Turn shutoff valve ON. To view the Celsius temperatures: 5. Check for leaks. Tighten any nuts or connections (including • Press the °C SELECT pad. The indicator will light up. To connections at the valve) that leak. redisplay degrees in Fahrenheit, press the °C SELECT pad again.
  • Page 6 NOTE: While dispensing water and for 5 seconds after dispensing has stopped, the digital display will show how much water has been dispensed. The default unit is ounces. The control can be adjusted to properly chill meats or vegetables. To switch to cups or liters, press the UNITS button before The air inside the pan is cooled to avoid "spot"...
  • Page 7 To Dispense Ice: 1. Press the button to select the desired type of ice. Turning the Ice Maker On/Off Style 1: The On/Oft switch is located on the top right side of the freezer compartment. Cut Hazard Use a sturdy glass when dispensing ice.
  • Page 8: Refrigerator Care

    Removing and Replacing Ice Storage Bin REFRIGERATOR C ARE Hold the base of the storage bin with both hands and press the release button to lift the storage bin up and out. NOTE: It is not necessary to turn the ice maker control to the OFF position when removing the storage bin.
  • Page 9: Troubleshooting

    TROUBLESHOOTING First try the solutions suggested here or visit our website and reference FAQs (Frequently Asked Questions) to possibly avoid the cost of a service call. In the U.S.A., www.whirlpool.com In Canada, www.whirlpool.ca The motor seems to run too much...
  • Page 10 The doors are difficult to open There is interior moisture buildup NOTE: Some moisture buildup is normal. • Humid room? Contributes to moisture buildup. • Door(s) opened often or left open? Allows humid air to enter refrigerator. Minimize door openings and keep doors fully closed.
  • Page 11 Steel Cleaner and Polish: To order replacement filters, call 1-800-442-9991 and ask for the Order Part #4396095 part number listed below or contact your authorized Whirlpool dealer. In Canada, call 1-800-807-6777. Standard Base Filter Cartridge: Order Part #4396841 (T2RFWG2 and P2RFWG2)
  • Page 12: Water Filter Certifications

    March 24, 2008 Date Revised: Sep_embe_ 7, 2005 Trademark/Model Desitmation ..Trademark/Model Designation P2WG2 P2WG2L Manulhcturer: whirlpool _* rp 116830 of the Health Manufactureri Rated Serviee Capacity: 200gal :R_}edS_r*ieeFiow: i185gpm Co_ditiofis of Certificatio_ DO not use with water that is micmbiologicaliy...
  • Page 13: Performance Data Sheets

    PERFORMANCE DATASHEETS Base Grille Water Filtration System Model T2WG2L/T2RFWG2 Capacity 200 Gallons (757 Liters) Model T2WG2/T2RFWG2 Capacity 200 Gallons (757 Liters) System tested and certified by NSF International against NSF/ANSI Standard 42 for the reduction of Chlorine Taste and Odor, Particulate Class I1";...
  • Page 14 Base Grille Water Filtration System Model TIWG2L/T2RFWG2 Capacity 200 Gallons (757 Liters) Model TIWG2/T2RFWG2 Capacity 200 Gallons (757 Liters) System tested and certified by NSF International against NSF/ANSI Standard 42 for the reduction of Chlorine Taste and Odor, Particulate Class I1"; and against NSF/ANSI Standard 53 for the reduction...
  • Page 15 Base Grille Water Filtration System Model P2WG2L/P2RFWG2 Capacity 200 Gallons (757 Liters) Model P2WG2/P2RFWG2 Capacity 200 Gallons (757 Liters) System tested and certified by NSF International against NSF/ANSI Standard 42 for the reduction of Chlorine Taste and Odor, Particulate Class I*; and against NSF/ANSI Standard 53 for the reduction...
  • Page 16 Base Grille Water Filtration System Model PIWG2L/P2RFWG2 Capacity 200 Gallons (757 Liters) Model PIWG2/P2RFWG2 Capacity 200 Gallons (757 Liters) System tested and certified by NSF International against NSF/ANSI Standard 42 for the reduction of Chlorine Taste and Odor, Particulate Class I*; and against NSF/ANSI Standard 53 for the reduction...
  • Page 17: Whirlpool C Orporation Major Appliance Warranty

    If outside the 50 United States and Canada, contact your authorized Whirlpool dealer to determine if another warranty applies.
  • Page 19: Securite Du Refrigerateur

    DI_PANNAGE, veuillez visiter notre site Web www.whirlpool.com pour des informations supplementaires. Si vous avez toujours besoin d'assistance, veuillez nous tel6phoner au 1-800-253-1301. Au Canada, visitez notre site Web www.whirlpool.ca ou tel6phonez-nous au 1-800-807-6777. Vous aurez besoin de vos num@os de modele et de s@ie situes sur la paroi interne du compartiment de refrig@ation.
  • Page 20: Instructions D'installation

    Mise au rebut de votre vieux r frig rateur Avant de jeter votre vieux r_frig_rateur ou cong_lateur • Enlever les portes. • Laisser les tablettes en place de sorte que les enfants ne puissent pas y penetrer facilement. Risque de suffoquer .--JZ Enlever les portes de votre vJeux r_frig_rateur.
  • Page 21: Outillage Requis

    REMARQUES : II est recommande de ne pas installer le refrig6rateur pres d'un four, d'un radiateur ou de toute autre source de chaleur. Ne Rassembler les outils et pieces necessaires avant de commencer pas installer le refrigerateur dans un endroit oQ la temperature I'installation.
  • Page 22 1 ¸" _, _ Lire toutes les instructions avant de commencer. Raccordement au r_frig_rateur IMPORTANT : Si on doit utiliser le refrig6rateur avant qu'il soit raccorde & la canalisation d'eau, placer la commande de la Style 1 machine & glagons a la position OFF (arr_t). 1.
  • Page 23 Achever I'installation Commandes num_riques REMARQUE : Les points de reglage recommandes par I'usine sont 0°F (-18°C) pour le congelateur et 37°F (3°C) pour le refrigerateur. Pour mettre en marche le r_frig_rateur et voir les points de r_glage : • Appuyer sur la touche POWER (ON/OFF - MARCHE/ARRE_T) pendant 2 secondes.
  • Page 24 Autres caract_ristiques du tableau de commando D'autres caracteristiques se trouvent sur le tableau de commande dans la partie superieure du compartiment de refrig6ration. On peut contr61er le degre d'humidite dans le bac & legumes Fast Cool (refroidissement rapide) etanche. La commando pout _tre ajustee a n'importe quel reglage entre LOW et HIGH.
  • Page 25 Distribution de glace : Robinet rotatif et plateau coulissant (sur certains modules) 1. Appuyer sur le bouton approprie pour selectionner le type de glace desir& Le distributeur peut comporter dans sa partie inferieure un robinet d'eau rotatif et un petit plateau coulissant. Risque de coupure Utiliser un verre robuste pour prendre des gla£ons.
  • Page 26 Pour retirer et r6installer le bac d'entreposage de gla£ons Tenir la base du bac d'entreposage & deux mains et appuyer Mise en marche/arr6t de la machine a gla_ons sur le bouton pour degager et sortir le bac. REMARQUE : II n'est pas necessaire de tourner la commande Style 1 : de la machine &...
  • Page 27 Aligner I'arete sur le couvercle avec la fleche sur le nouveau 3. Laver les surfaces exterieures en acier inoxydable ou en metal filtre et tourner le couvercle jusqu'& ce qu'il s'enclenche en peint avec une eponge propre ou un linge doux et un place.
  • Page 28: Depannage

    DEPANNAGE Essayer d'abord les solutions sugg_r_es ici ou visiter notre site Internet et la FAQ (foire aux questions) pour _viter le co_t d'un appel de service. Aux I_.-U., www.whirlpool.com Au Canada, www.whirlpool.ca Le r_frig_rateur ne fonctionne pas Le r_frig_rateur est bruyant Le bruit des refrigerateurs a ete reduit au cours des annees.
  • Page 29 La machine a gla?ons est-elle allum_e? S'assurer que le Les ampoules ne fonctionnent pas bras de commande en broche ou I'interrupteur (selon le modele) est en position ON. Une ampoule est-elle desserr_e dans la douille ou grill_e? S'agit-il d'une nouvelle installation? Attendre 24 heures Voir "Remplacement des ampoules d'eclairage".
  • Page 30 Le distributeur d'eau ne fonctionne pas correctement 1-800-442-9991 et demander le numero de piece indique ci-dessous ou contacter votre marchand autorise Whirlpool. Porte du cong_lateur compl_tement ferrule? Bien fermer Au Canada, composer le 1-800-807-6777. la porte. Si elle ne ferme pas completement, voir "Les portes...
  • Page 31: Feuilles Dedonnees Surlaperformance

    FEUILLES DEDONNEES SURLAPERFORMANCE Syst me de filtration d'eau de la grille de la base Modble T2WG2L/T2RFWG2 Capacite 200 gallons (757 litres) Modble T2WG2/T2RFWG2 Capacite 200 gallons (757 litres) Produit teste et certifie par NSF International en vertu de la norme NSF/ANSI 42 (reduction du goQt et de I'odeur...
  • Page 32 Syst me de filtration d'eau de la grille de la base Modble TIWG2L/T2RFWG2 Capacite 200 gallons (757 litres) Modble TIWG2/T2RFWG2 Capacite 200 gallons (757 litres) Produit teste et certifie par NSF International en vertu de la norme NSF/ANSI 42 (reduction du goQt et de I'odeur du chlore, et particules de classe I1') et en vertu de la norme NSF/ANSI...
  • Page 33 Syst me de filtration d'eau de la grille de la base Modble P2WG2L/P2RFWG2 Capacite 200 gallons (757 litres) Modble P2WG2/P2RFWG2 Capacite 200 gallons (757 litres) Produit teste et certifie par NSF International en vertu de la norme NSF/ANSI 42 (reduction du goQt et de I'odeur du chlore, et particules de classe I*) et en vertu de la norme NSF/ANSI...
  • Page 34 Syst me de filtration d'eau de la grille de la base Modble PIWG2L/P2RFWG2 Capacite 200 gallons (757 litres) Modble PIWG2/P2RFWG2 Capacite 200 gallons (757 litres) Produit teste et certifie par NSF International en vertu de la norme NSF/ANSI 42 (reduction du goQt et de I'odeur du chlore, et particules de classe I*) et en vertu de la norme NSF/ANSI...
  • Page 35 Whirlpool dans les 30 jours suivant la date d'achat.
  • Page 36 ® Registered Trademark/TM Trademark of Whirlpool, U.S.A., Whirlpool Canada LP Licensee in Canada Printed in U.S.A. Tous droits reserves. ® Marque deposee/TM Marque de commerce de Whirlpool, U.S.A., emploi sous licence par Whirlpool Canada LP au Canada Imprime aux E.-U.
