080p LCD Television

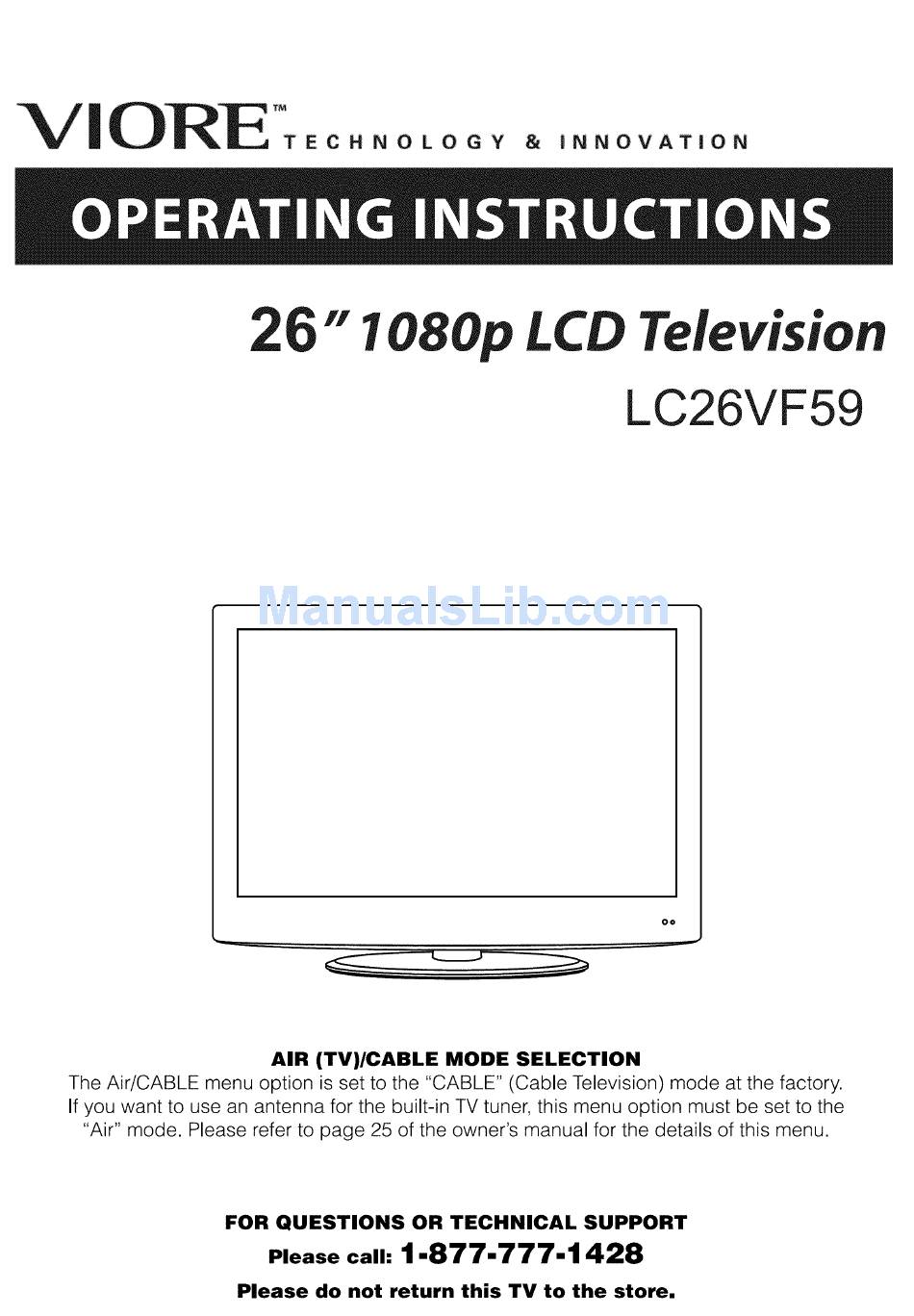

LC26VF59
Oo
AIR (TV)/CABLE
MODE
SELECTION
The Air/CABLE
menu option
is set to the "CABLE"
(Cable Television)
mode at the factory.
If you want to use an antenna
for the built-in TV tuner, this menu option must be set to the
"Air" mode. Please refer to page 25 of the owner's manual for the details of this menu.
FOR QUESTIONS
OR TECHNICAL
SUPPORT
Please
call:
1-877-777-1428
Please
do not return
this
TV to the
store.
Advertisement
Related Manuals for VIORE LC26VF59
Summary of Contents for VIORE LC26VF59
- Page 1 080p LCD Television LC26VF59 AIR (TV)/CABLE MODE SELECTION The Air/CABLE menu option is set to the "CABLE" (Cable Television) mode at the factory. If you want to use an antenna for the built-in TV tuner, this menu option must be set to the "Air"...
- Page 2 • Caution ..................• Safety Information ................• Names of each part(Front View) / Accessories ............• Names of each part(Back View) ..............• Mounting on a Desktop / Installation Precautions ............ • Installing an Antenna ................• Remote control ................•...
- Page 3 The lightening flash with arrowhead symbol, within an equilateral triangle intended to alert the user to the presence of un-insulated "dangerous voltage" within the products enclosure that may be of sufficient magnitude to constitute risk of electric shock to the persons. The exclamation point within an equilateral triangle...
- Page 4 To ensure reliable and safe operation of this equipment, please read carefully all the instructions in this user guide, especially the safety information below. Electrical safety • The TV set should only be connected to a mains supply which matches that stated on the label.
- Page 5 TV/AV MENU VOL+ VOL- POWER TV!AV button - Input Source Select Button POWER button MENU button- OSD Menu Display Button LED Indicator CH+/- button - Channel/Program ÷.* Button Remote Control Window VOL+i- button * Volume + - Button ® The configuration of the components may look different from the following illustration. User's Manual User's Guide Power Cord...
- Page 6 _r-_ iiiii_!!i_i_i _ i_i_!ii_ii/ iii:i_i_i_i_i _i_i!i_ii!_i i iiiii AC input jack AV2 iN VIDEO and AUDIO(R/L) S-VIDEO SWICH Y, Pb,Prjack(component) COAXIAL (Digital Audio out) HDMI2 jack AV OUT VIDEOand AUDIO(R/L) HDMJl jack AVI iN VIDEO and AUDIO(R/L} PC and AUDIO jack Power on o To turn on the LCD TV "...
- Page 7 ÷ Your LCD TV can be mounted on a Desktop as shown in the figure above. ÷ This is not floor-standing unit. ÷ Please secure enough space for safe use. (Please refer to A and B.) ÷ Installation of the LCD TV in an improperly ventilated location can cause a fire or damage to the LCD TV due to increased temperature.
- Page 8 ÷ For connecting to ATSC or NTSC broadcasts Wall Jack with F-Connector Coaxial (Round) Antenna Cable Analog+Digital 75 £_ external Antenna Press TV/AV button on the remote control to select TV, then press OK button to confirm. Then you can receive the ATSC/NTSC signal.
- Page 9 ÷Functions of remote control buttons The remote control is using Infra-Red (In). Point it towards the front of the LCD TV. The remote control may not work correctly if it is operated out of range or out of angle. TV/AV POWER Press to display the input source Press to turn the TV on/standb...
- Page 10 THUMBSTICK (_d T/,4/ _./OK) Allows you to navigate the on-screen menus and adjust the system settings to your preference. MENU Press to exit form the OSD menu. Press to display the OSD menu. TIMER RETURN Press to setup the sleep time Press to Return to the previous among: 5min, 10min, 15min, 30min,...
- Page 11 1. Check the polarity (+,-) of the batteries in the remote control. 2. Check that the batteries have power. 3. Check that the LCD TV is powered and that it is properly plugged in. 4. Check if any three-wavelength lamp, special fluorescent or neon sign is turned on near the LCD TV. 1.
- Page 12 ÷ Connecting to the Composite terminal _._ Connection terminals of other equipments differ by manufacturer and model. < VIDEO > 11" Composite Cable Connect the LCD TV's Composite In terminal to the VCR's Composite Out terminal using the Composite cable. (Make sure the color of the terminals and the color of the cable are the same) ÷...
- Page 13 ÷ Connecting to the Composite terminal ÷ In orderto watch Cable TV, Subscribeto your localCable TV companyand installa separate receiver(Set-Top-Box) _.." Connectionterminalsof other equipmentsdiffer by manufacturerand model• < Cable broadcasting receiver > Composite Cable Connect the LCD TV's Composite In terminal to the cable broadcasting receiver Composite Out terminal using the Composite cable•...
-
Page 14: Connecting To The Component
÷ Connecting to the component terminaJ ÷ Connection terminals of other equipments differ by manufacturer and model. < DVD > 1. Connect LCD TV's Y, Pb, Pr terminal to DVD's Video Out terminal using the external cable. 2. Connect LCD TV's Audio terminals (left & right) in AV 1 to DVD's Audio Out terminal using the Audio cable. 3. - Page 15 ÷ Connection terminals of other equipments differ by manufacturer and model. <PC> Analog RGB(D-Sub 1 5pin)Cable PC Audio Cable • Connect LCD TV's PC Input terminal to PC's RGB terminal using the D-Sub cable. • Connect LCD TV's PC Audio terminal to PC's Audio terminal using the Audio cable. Only for PC's with Audio terminal) TV/AV 1.
- Page 16 ÷ Connecting to the Audio Amplifier and Monitor ÷ Connection terminals of other equipments differ by manufacturer and model. <Monitor> Video Cable <Audio Amplifier> Audio Cable Connect LCD TV's AUDIO(L/R) output terminal to Audio Amplifier using an audio patch cable. Note: The speakers of LCD TV still have output audio signal at this time.
-
Page 17: Power On/Off
÷ Power on/off Press _ on the buttom of the LCD TV to _ first. •To turn the LCD TV on • Press "POWER" button on the LCD TV. •To turn the LCD TV off" Press "POWER" button on the LCD TV. •To turn on/off by remote control ' POWER Press the... - Page 18 1. After you turn on the TV and select the input source, you should setup the on-screen menu. 2. Press MENU button to display the on-screen menu. 3. Press _1/I_ button to select the main menu: PICTURE, AUDIO, TIMER, SETUP, LOCK, CHANNEL. 4.
- Page 19 The PICTURE menu includes the following options " Picture Mode Cycles among picture display modes: Standard, Dynamic, Mild, Sports, User. Contrast Controls the difference between the brightest and darkest regions of the picture. Brightness Controls the overall brightness of the picture Color Controls the color.
- Page 20 The SOUND menu includes the following options ' Sound Mode Allows you to select among: Flat, Music, Movie, Sports and User. Bass Controls the relative intensity of lower pitched sounds. Treble Controls the relative intensity of higher pitched sounds Balance To adjust the balance of the left and right sound track, or turn off the volume of the left and right sound track.
- Page 21 The TIMER menu includes the following options " Sleep Timer Allows you to set up the sleep timer among: 5min, 10min, 15min, 30min, 45min, 60min, 90min, 120min, 180min, 240min and off. Time Zone Allows you to set up the sleep timer among: Pacific, Alaska, Hawaii, Eastern, Central and Mountain.
- Page 22 The SETUP menu includes the following options: ______________________________________________________________________________________ i_iiiiiiiiiiHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHH Menu Language Allows you to select menu language among: English, Frangais, Espadot and Deutsch. Transparency Allows you to turn on or off the transparency function_ Zoom Mode Allows you to select the zoom mode among: 16:9, 16:9 zoom, 4:3, 4:3 zoom_ Noise Reduction Allows you to select the noise reduction mode among: Strong, Off, Weak, Middle_ PC Setup...
- Page 23 Close Caption Use • button to highlight the Close Caption item, then press • button to enter into the following menu_ CC Mode Allows you to select the CC Mode among: On, Off and CC on Mute. Basic Selection Allows you to select the basic selection among: CC1, CC2, CC3, CC4, Text1, Text2, Text3 and Text4_ Advanced Selection Allows you to select the advanced selection among:...
- Page 24 You should enter the password to enter the Lock menu. NOTE: the factory password is 0000. input 4-digit password The LOCK menu includes the following options " Change Password Use • button to select the "Change Password" item, then press I_ button to enter into the following menu.
- Page 25 Use • button to highlight the "US" item, then press • button to enter into the following menu. Use • button to highlight the "TV" item, then press • button to enter into the following menu_ Use • and • buttons to select the desired rating and press •...
- Page 26 Canada Use Down button to highlight the "Canada" item, then press RIGHT button to enter into the following menu. Canada English Use LEFT and RIGHT buttonsto selectamong: E, C, C8+, G, PG, 14+ and 18+ Canada French Use LEFT and RIGHT buttonsto selectamong:E, G, 8ans+, 13ans+,16ans+...
- Page 27 The Channel menu could only be operated in TV source. COLOR TV BROADCASTING SYSTEM AZORES(PORTUGAL) BALKANS(KOSOVO, BOSNIA) BELGIUM/GERMANY/ITALY IRAQ SECAM AFGHANISTAN NETHERLANDS/NORWAY SECAM SAUDI ARABIA KUWAIT/TURKEY/JORDAN UNITED KINGDOM CZECH/HUNGARY/POLAND RUSSIA SECAM U.S.A./JAPAN/KOREA/GUAM NTSC The CHANNEL menu includes the following options " Air/Cable Allows you to select antenna between Air and Cable.
- Page 28 If you select "Cable" as input signal in Antenna item, allows you to select Cable System among: Auto, STD, IRC and HRC. Use • button to highlight the "Start to Scan", then press • button to search the channels automatically. The receivable channels will be stored automatically.
- Page 29 480i _20X480 480p 720X480...
- Page 30 • Do not use other functions that are not mentioned in this user's manual. • In case a problem occurs with your LCD TV, please take the following steps first. • If you still have the problem, turn the power off and contact your dealer or an authorized service center. Problem ActiOn The screen does not appear.
- Page 31 LCD Panel Panel Size 26" TFT LCD Brightness 500cd//m2 BROADCAST SIGNAL SYSTEM NTSC M + ATSC, PAL, SECAM, DK/BG/t ANTENNA INPUT IMPEDANCE SOUND OUTPUT 8W x2 Max. Resolution 1920 x 1200 Input Connector VIDEO S-VIDEO YPbPr HDMI AUDIO (L/R) SPDIF AC 100-240V, 50/60HZ Power Consumption The cabinet design and electronics specifications...
- Page 32 FLAT PANEL TELEVISION This VIORE brand Product, as supplied and distributed by VIORE and delivered new in the original carton to the original purchaser is warranted by VlORE against manufacturing defects in materials and workmanship for a limited warranty period of one (1) year on parts and labor.
