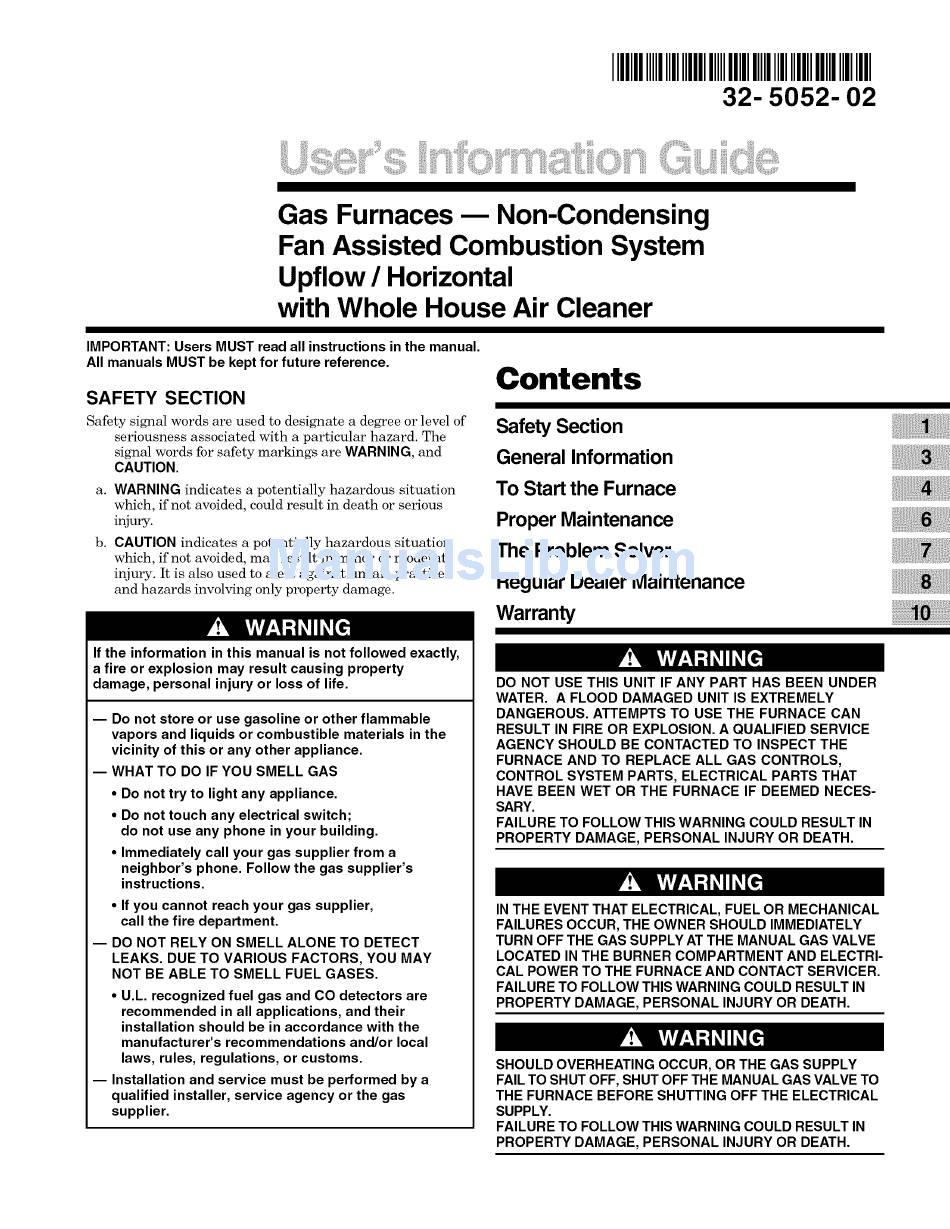

Trane ADD2B080A9362A User's Information Manual

IIIIIII IIIIIIIII I IIIIII II
32- 5052- 02
!li i ! iiii l ii !il i i i!, ii ii? il I
Gas Furnaces m Non-Condensing
Fan Assisted Combustion System
Upflow / Horizontal
with Whole House Air Cleaner
IMPORTANT: Users MUST read all instructions in the manual.
All manuals MUST be kept for future reference.
SAFETY SECTION
Safety signal words are used to designate a degree or level of
seriousness associated with a particular hazard. The
signal words for safety marldngs are WARNING, and
CAUTION.
a. WARNING indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
injury.
b. CAUTION indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate
injury. It is also used to alert against unsafe practices
and hazards involving only property damage.
If the information in this manual is not followed exactly,
a fire or explosion may result causing property
damage, personal injury or loss of life.
-- Do not store or use gasoline or other flammable
vapors and liquids or combustible materials in the
vicinity of this or any other appliance.
-- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch;
do not use any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier,
call the fire department.
-- DO NOT RELY ON SMELL ALONE TO DETECT
LEAKS. DUE TO VARIOUS FACTORS, YOU MAY
NOT BE ABLE TO SMELL FUEL GASES.
• U.L. recognized fuel gas and CO detectors are
recommended in all applications, and their
installation should be in accordance with the
manufacturer's recommendations and/or local
laws, rules, regulations, or customs.
-- Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
Contents
Safety Section
General Information
To Start the Furnace
Proper Maintenance
The Problem Solver
Regular Dealer Maintenance
Warranty
DO NOT USE THIS UNIT IF ANY PART HAS BEEN UNDER
WATER. A FLOOD DAMAGED UNIT IS EXTREMELY
DANGEROUS. ATTEMPTS TO USE THE FURNACE CAN
RESULT IN FIRE OR EXPLOSION. A QUALIFIED SERVICE
AGENCY SHOULD BE CONTACTED TO INSPECT THE
FURNACE AND TO REPLACE ALL GAS CONTROLS,
CONTROL SYSTEM PARTS, ELECTRICAL PARTS THAT
HAVE BEEN WET OR THE FURNACE IF DEEMED NECES-
SARY.
FAILURE TO FOLLOW THIS WARNING COULD RESULT IN
PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
IN THE EVENT THAT ELECTRICAL, FUEL OR MECHANICAL
FAILURES OCCUR, THE OWNER SHOULD IMMEDIATELY
TURN OFF THE GAS SUPPLY AT THE MANUAL GAS VALVE
LOCATED IN THE BURNER COMPARTMENT AND ELECTRI-
CAL POWER TO THE FURNACE AND CONTACT SERVICER.
FAILURE TO FOLLOW THIS WARNING COULD RESULT IN
PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
SHOULD OVERHEATING OCCUR, OR THE GAS SUPPLY
FAIL TO SHUT OFF, SHUT OFF THE MANUAL GAS VALVE TO
THE FURNACE BEFORE SHUTTING OFF THE ELECTRICAL
SUPPLY.
FAILURE TO FOLLOW THIS WARNING COULD RESULT IN
PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
