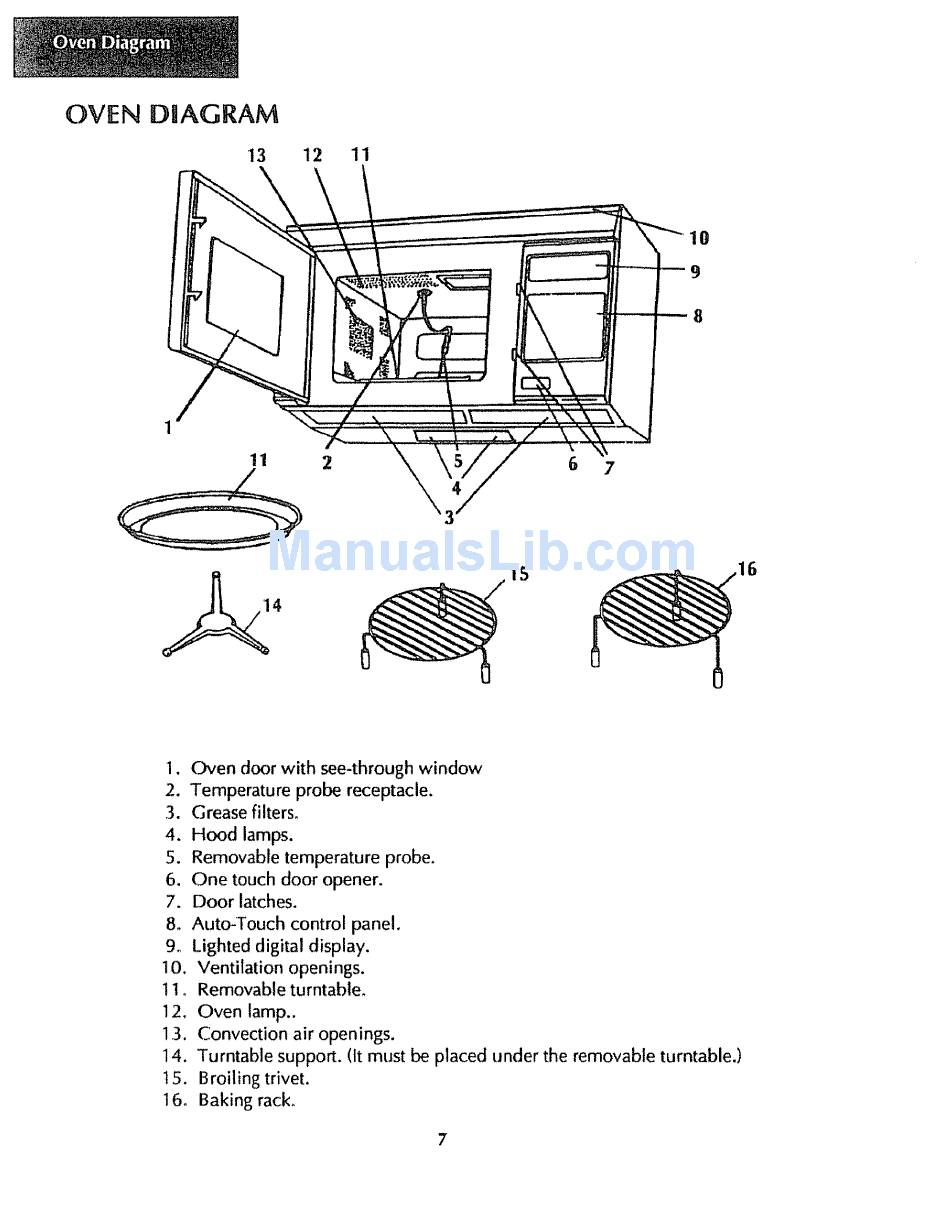

OVEN DIAGRAM
13 12
11
11
2
6
7
10
9
8
14
15
16
I. Oven door with see-through window
2. Temperature probe receptacle.
3. Grease filters,
4. Hood lamps.
5, Removable temperature probe,
6, One touch door opener.
Door latches.
8. Auto-Touch control panel.
9, Lighted digital display.
I0, Ventilation openings.
11, Removable turntable.
12, Oven lamp.,
13, Convection air openings.
14. Turntable support. (It must be placed under the removable turntable.)
15. Broiling trivet.
16, Baking rack_
