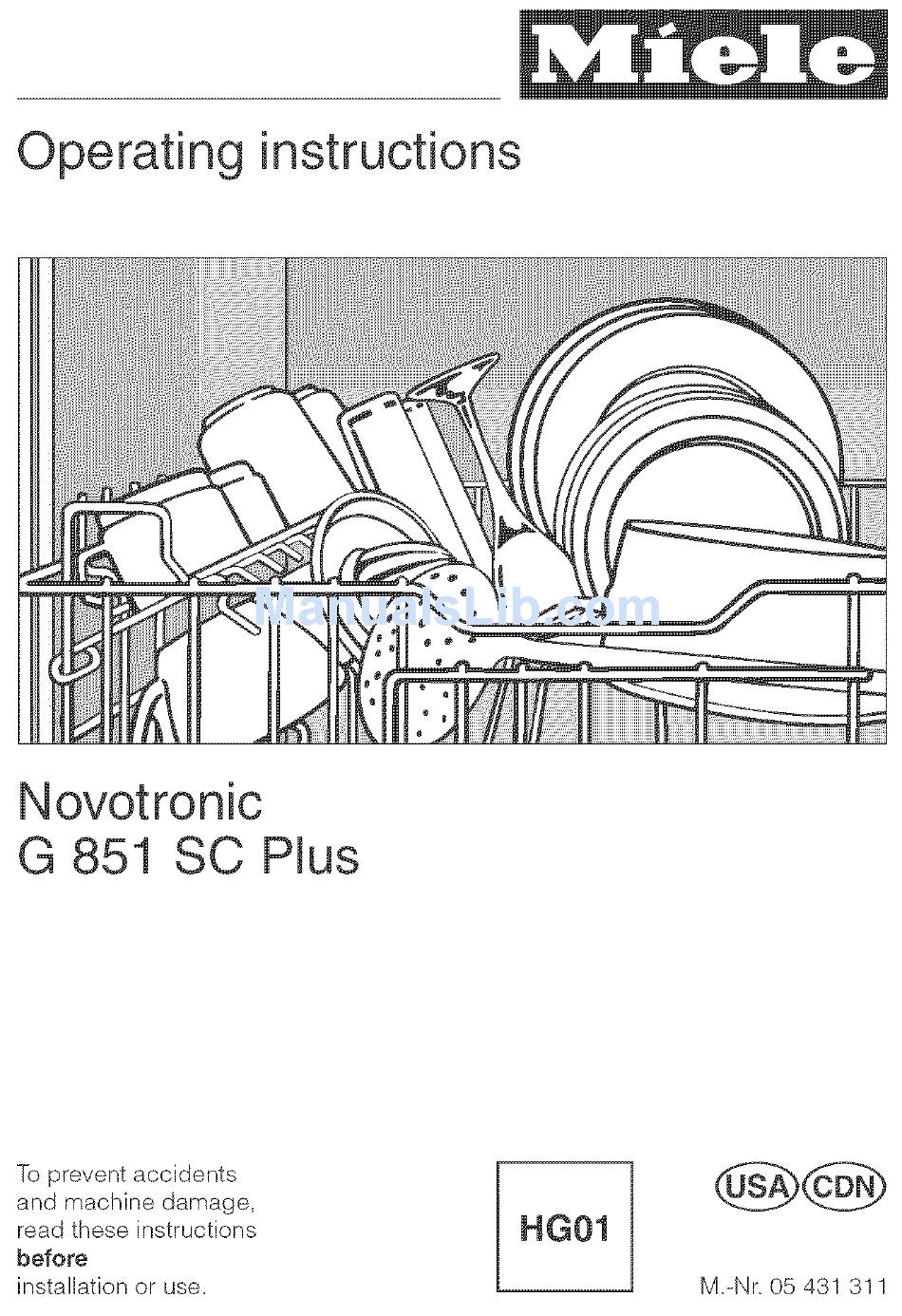

- Page 1 Operating instructions Novotronic G 851 SC Plus To prevent accidents and machine damage, read these instructions before installation or use, M-Nr, 05 431 311...
- Page 2 Contents iMPORTANT SAFETY iNSTRUCTiONS ..4...
-
Page 3: Table Of Contents
Contents Operation ............Adding detergent ..........Running the dishwasher ..........Program sequence indicator (14) ........At the end of a program ..........interrupting a program ..........Changing a program ..........Program guide ............ Additional features .........."Top Solo" (15) ..........Extended drying .......... - Page 4 iMPORTANT SAFETY iNSTRUCTiONS WARNING - Do not use an extension cord to connect this appliance to electric- When using your dishwasher, follow ity. Extension cords do not guarantee the required safety of the appliance basic precautions, including the (e.g. danger of overheating). following: Be certain your appliance is prop-...
- Page 5 _,,,,,_,,,,,_,iii_ Do not tamper w,th the controls. these applications. Please contact the nearest Miele dealer or the Miele Tech- iHli_i!iJt To reduce the risk of i njury, do not nical Service Department with specific allow children to play in, on, or requirements.
- Page 6 iMPORTANT SAFETY iNSTRUCTiONS DisposaJ of an appJiance When loading tableware, place sharp ,terns away from t he d oor , ,fthe a pp,,anee isremoved from , ts seal to prevent damage to the seal. installation and will not be used, Load knives pointing downwards to the door to the wash cabinet should be prevent injuries.
- Page 7 DE S¢:CUF:iIT¢: CONSIGNES AVERTISSEMENT- S6curiteemectrique Avant I'insta!lation, assurez-vous Au moment d'utiliser votre que _ a t ens_oo et_a f r6queoce _od_- Jave-vaisseJJe, prenez des qu6es sur la plaque signaletique cor- precautions essentieJles, dont : respondent bien a celles de I'alimenta- tion electrique de la r6sidence afin de Lisez attentivement J'ensemble des...
- Page 8 Veuillez communiquer 61ectriques qui pourraient causer des exlgences particulieres au d6taillant blessures ou endommager la r6si- Miele le plus pres de chez vous ou au dence, service du soutien technique,...
- Page 9 CONSIGNES OE SECURITE Utitisation Au moment de charger la vaisse!le, ne disposez pas les articles cou- H'utU_sez _e _ a,,e-vaisse,e pants a proximit6 du ioint d'6tanch6it6 Iorsque tousles panneaux sont de la porte afin d'eviter de I'endomma- bienen place. get. Placez les couteaux avec la pointe vers le bas afin d'6viter les blessures, Ne jouez pas avec les commandes_...
- Page 10 Caring for the environment Energy saving washing This dishwasher is exceptionally eco- nomical in the use of water and electric- ity, For best results follow these tips: [] For lowest energy consumption the gentlest washing of china and crystal, connect the dishwasher to a cold water source, [] For fastest possible wash times, yet higher energy consumption,...
- Page 11 Guide to the dishwasher Wash cabinet Upper spray arm (not visible) Four height adjustable feet Cutlery tray Triple Filter System Salt reservoir Upper basket Water feed for middle spray arm Detergent dispenser Rinse aid reservoir Middle spray arm Lower spray arm Data plate...
- Page 12 Guide to the dishwasher Control panel "On/Off" button Check/Refill indicators Program sequence display Child Safety Lock Door release "Top solo" button Program selector Drying vent "Start" button...
- Page 13 Before using for the first time To open the door Ch(ld Safety Lock The yellow key for the Child Safety Lock is shipped on one of the spikes at the front of the upper basket. Re- move the key before using the dish- washer.
- Page 14 Before using for the first time Water softener If your water hardness is consistently lower than 8 gr/gal (!40 ppm), you do To achieve good cleaning results, the not need to add dishwasher salt, How- dishwasher needs soft water, Hard ever, the dishwasher must still be pro- water results in calcium deposits on...
- Page 15 Before using for the first time Programming the water softener Your water hardness level must be pro- grammed into the dishwasher using the Pots & Pans Stop Normal Plus program selector and buttons on the control panel, Sani Wash Normal [] Make sure the dishwasher is turned China &...
- Page 16 Before using for the first time [] Press the "Top Solo" button, Check(rig the programmed water hardness The "Top Solo" indicator will lighL [] Make sure the dishwasher is turned [] Turn the program selector to "Stop", off, [] Turn off the dishwasher, Turn the program selector to "Stop", The programmed water hardness is Press and hold the "Top Solo"...
- Page 17 Other salts salt reservoir. may contain insoluble additives which can impair the water softener. The proper salt can be purchased from your Miele dealer or Miele's Technical Service Department. Carefully fil! with salt. The salt reser- voir holds approximately 4.5 Ibs (2 kg) of salt.
- Page 18 Before using for the first time Salt indicator Bypassing the saJt indicator When the salt reservoir is empty, the If your water is soft (below 8 gdgal) the salt reservoir should not be filled with "Salt-PC" indicator will light, indicating that it should be refilled with reactiva- salt.
- Page 19 Before using for the first time Rinse aid Rinse aid is recommended to prevent spotting on dishes and glassware, reservoir. Adding rinse aid [] Pour liquid rinse aid into the reservoir until it is visible on the surface of the screen, [] Press on the flap until you hear it click shut, Failure to close it all the...
- Page 20 Before using for the first time Rinse aid indicator The rinse aid indicator on the control panel will light when the rinse aid reser- voir needs refilling, Top Solo Start U ntake/Drain SaRt _ The dosage selector is preset to 3, This Rinse aid dispenses approximately 3 ml of rinse...
- Page 21 Loading the dishwasher [] The spray arms must not be blocked z_Do not wash items soiled with by items that are too tall or hang ash, sand, wax, grease or paint in through the baskets. Check clear- the dishwasher, ance by manually rotating the spray Ash and sand do not dissolve and arms.
- Page 22 Loading the dishwasher totems not recommended @_assware: dishwashing - There are no standard guidelines for washing glassware but, when in - Cutlery with wooden handles. doubt wash by hand. - Wooden cutting boards. - Wash delicate glassware with a low - Glued items such as old knives with temperature program and without the handles glued together around the...
- Page 23 Loading the dishwasher Cutlery basket [] For the best cleaning results, spoons and forks should be placed in the basket with handles down. Knives and other pointed obiects can be loaded with their handles up to pre- vent injuries. [] Place small spoons into the slots on either side of the cultery basket.
- Page 24 Loading the dishwasher Cutlery tray (SO units) Spoon heads should be placed in con- tact with at least one of the serrated re- The removable cutlery tray makes un- tainers of the cutlery tray to ensure that loading flatware easy. Simply carry the water runs off freely, cutlery tray to where the flatware is stored and put the entire basket away...
- Page 25 Loading the dishwasher Upper basket Adjusting the upper basket On select models, the upper basket can be raised or lowered to accommo- date tall items. [] Slide out the upper basket. Load the upper basket with small, light- weight, or delicate items such as cups, saucers, glasses, dessert bowls and flat pans.
- Page 26 Loading the dishwasher Coffee bar AdjustabJe cup racks Raise the rack to make room for tall To allow water to run off the bottom of glasses. Lower it to double stack coffee mugs, place slanted on top of the coffee bar, The bar can also be smaller pieces.
- Page 27 Loading the dishwasher Lower basket Height limit For larger and heavier items such as plates, serving platters, sauce pans, bowls. Dishwasher with cutlery tray The guide at the front of the upper bas- ket determines the maximum height for items placed in the lower basket so that the middle spray arm is not blocked.
- Page 28 Lower basket inserts Various removable inserts are available for the lower basket to accomodate spe- cial items to be washed, Removing an insert [] To remove an insert, gently pull up on the handle, Inserting an insert [] Slid the hitches of the inset under the vertical struts of the lower basket, [] Push down on the handle to snap the insert into position,...
- Page 29 Lower basket inserts FoJdabJe spike insert A highly flexible design holds tableware securely. It can be folded out of the way for pots, pans and other large items. This insert secures plates and platters. Foldable spikes Two rows of spikes can be folded down, to create more room for larger dishware e.g.
- Page 30 Lower basket inserts PlateGuard PJus insert A unique design cradles plates at 3 points and can be used for washing cups, glasses, plates, bowls and pots, [] Hook the PlateGuard Plus insert into the left half of the lower basket, the area marked in white,...
- Page 31 Basket accessories Additional inserts for the upper and lower baskets may be purchased from your Miele dealer or the Miele Technical Service Department, Vase / Bottle holder to wash milk or baby bottles attaches to the lower basket Tall Glassware Insert...
-
Page 32: Operation
Operation Adding detergent until you are ready to start the dish- o not fill the detergent dispenser washer. _iiiiiii iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii Only use powder detergents or tab- lets formulated for residential dish- washers. The use of gel or liquid de- tergent is not recommended. The horizontal marks in Compartment Never fill the detergent dispenser to indicate levels of approximately... -
Page 33: Running The Dishwasher
Running the dishwasher Waterproof System [] Make sure the spray arms are not All Miele dishwashers are specially de- blocked. signed to shut off the water intake and drain the wash cabinet in the rare event [] Close the door. -
Page 34: At The End Of A Program
Operation At the end of a program interrupting a program The "End" indicator will light when the A program is interrupted as soon as the program has finished. door is opened. If the door is closed, the program will [] Turn the program selector (16) to continue from where it was interrupted. -
Page 35: Program Guide
Operation Program guide When to use Program cycle Program Pre-- Main Interim Final Dry-- wash wash rinse rinse Pots & Pans for heavily soiled pots and pans with dried on food Main wash temperature 170 °F (75 °0) Run4irne 128 rain Sani Wash extended wash time for sanitizing... -
Page 36: Additional Features
20 19 "Top SoJo" (15) [] Turn the dishwasher on using the "On/Off" (! 3) button. Using "Top Solo" will save water and The "Start" (17)indicator will flash. energy. This program is recommended when [] Turn the program selector (16) to the there is only a small load to clean. -
Page 37: Extended Drying
Operation [] Turn the program selector to the Extended drying "9 o'clock" position. If the desired drying results are not con- sistently achieved, the turbothermic If the "Top Solo" indicator is not Ht: cooling fan can be programmed to run the extended drying time is off, an extra 14 minutes at the end of each If the "Top Solo"... -
Page 38: Frequently Asked Questions
Frequently asked questions With the aid of the following guide, minor problems can be fixed without a service call. What if ... Possible faumt the dishwasher does not The door is not properly Close the door firmly. start? closed. The machine is not Insert the plug. - Page 39 The flow pressure at the Contact a plumber. water inlet is less than 4,5 psi (0,3 bar), Call the Miele Technical The waterproof system has activated, the "Drain" indicator Water intake error, - Turn off the dishwasher...
- Page 40 - Press the "Start" button, If the indicators flash again, there is a technical _roblem, - Call the Miele Technical Service DepartmenL there is a knocking The spray arm is hitting Interrupt the program, re- noise in the wash cabi_...
- Page 41 Frequently asked questions What if ... Possible fault dishes are not ctean? The dishes were not See, "Loading the dish- washer". loaded correctly. Select a more intensive The program was not )owerful enough. program see, "Program guide". Not enough detergent Use more detergent, see, was dispensed.
- Page 42 Frequentny asked questions What if ... Possible fau_t pJastic items are discot_ Natural dyes e. g. from Use more detergent, see ored? vegetables may be the "Adding detergent". cause. Not enough deter- Discoloration is perma- nent. gent was used to break down natural dyes.
-
Page 43: After Sales Service
= PC correct yourself please contact: The Program Correction (PC) allows a - Your Miele Dealer technician to update the dishwasher to make use of new technology, - The Miele Technical Service Depart- menL Top Sob USA !-800-999-1360 tec hserv@mieleusa,com Start... -
Page 44: Transport
Transport To transport the dishwasher, e. g. when moving to a new home, note the follow- ing: - Empty the dishwasher, - Secure any loose parts, e. g. hoses, cables, cutlery baskets. - Transport the dishwasher in the up- right position. If unavoidable it may be transported on its back. -
Page 45: User Maintenance Instructions
User Maintenance Instructions To prevent accidents and machine damage, read these instructions before installation or use,... -
Page 46: Cleaning The Filter In The Wash Cabinet
Triple filter system The triple filter system in the base of the wash cabinet prevents food from being redeposited on dishes. It also protects the circulation pump from damage caused by foreign obiects (e.g. broken glass, bones). The filter system should be cleaned ev- ery 4 - 6 months or whenever a foreign object is trapped. - Page 47 To clean the underside of the filter, the [] Return the filter so it lies flat in the base of the wash cabinet. flap must be opened: [] Pull back the yellow clip. [] Lock the filter by turning the handle clockwise.
-
Page 48: Cleaning The Spray Arms
[] Remove the lower basket. C_eaning the spray arms Sometimes particles of food get stuck in the spray arm jets. The spray arms should be inspected and cleaned every 4 - 6 months_ [] Turn off the dishwasher before clean- ing. -
Page 49: Cleaning The Wash Cabinet
The wash cabinet can be cleaned with a dishwasher cleaner such as Dis Ptastic Cleaner available from your Miele dealer or the Miele Technical Service All plastic surfaces and the control Department. panel can be cleaned with warm water and liquid dish soap applied with a soft C_eaning the door and door sponge. -
Page 50: Cleaning The Water Inlet Filter
[] Unscrew the intake hose. hose connection is recommended. These filters can be purchased from Miele's Technical Service Depart- ment. [] Carefully remove the rubber seal. [] Remove the filter using a needle nose plier and rinse under running water. -
Page 51: Cleaning The Drain Pump And Non-Return Valve
C_eaning the drain pump and non-return valve If the dishwasher is not completely drained at the end of a program, the drain pump or non-return valve may be blocked. [] Turn off the dishwasher. [] Remove the triple filter (see "Cleaning the filter in the wash cabinet"). - Page 52 Richmond Hill, ON L4B 1E5 Phone: 800-843=723t Phone: 800-565-6435 609-419-9898 905=707=1171 Fax: 905-707-0177 Fax: 609=419-4298 www.miele.ca www.mieleusa.com info@miele.ca (general enquiries) service@miele.ca (tech. service) Technical Service & Support Technical Service & Support Nationwide Ontario Region Phone: 800-999-1360 Phone: 905-707-I 171 Fax:...
