Extron electronics PoleVault System A/V Source Inputs Specification Sheet

PoleVault System A/V Source Inputs
VGA Computer-Video, Composite Video, and Audio Source Inputs

common features

• Available exclusively as part of a PoleVault System
• Send video and stereo audio signals to a PVS 204SA switcher over CAT 5, 5e, or
6 UTP cable
• Powered by the PVS 204SA switcher via twisted pair cable
• LED power indicator
description
PoleVault System A/V Source Input Wallplates are designed to work exclusively with the
PVS 204SA Four Input Twisted Pair PoleVault Switcher as part of a PoleVault System. All
PVT Series source inputs can be used with any CAT 5, 5e, or 6 twisted pair cable. PoleVault A/V
Source Inputs require no local power supply and are powered remotely by the PVS 204SA
switcher via the twisted pair cable.
PVT Series inputs are available in four form factors:
Decora wallplates: Designed for mounting in a one gang US external
®
wall box.
EU wallplates: Designed for mounting in a European junction box with 60 mm
mounting centers using the included matching Jung AS500 Series cover.
AAP modules: Provide flexible mounting options when used in conjunction
with other products, such as Extron MediaLink
Extron AAP mounting frames, or third-party floorboxes.
Rack-mountable enclosures: Utilized in applications with space for permanently
installing source equipment, such as in equipment closets, inside podiums,
or credenzas.
458
™ controllers with AAP openings,
USA West USA West
+1.714.491.1500 / +800.633.9876 +1.714.491.1500 / +800.633.9876
+1.714.491.1517 FAX +1.714.491.1517 FAX
P o l e V a u l t S y S t e m c o m P o n e n t S
Extron
SPK 18 - 25'
Cable
Extron
PCM 240
Projector Drop
Ceiling Mount
Extron
PMK 450
Easy Installation
POWER I P N 1A RGB
12V S T U 2A VIDEO
3A MAX 3
1B RGB
Pole Mount Kit 2B O
4 U T P US ® LISTED AUDIO/VIDE 17TT
VIDEO S T U APPARATUS O
PASS HIGH FILTER ON ON STEREO AMPLIFIE
OFF DUAL AUX/MIX RS-232 IN D OUTPUTS
MONO Tx 12V Rx MLC/IR IR L Ohms 4/8 R
A C B DC VOL
VOL/MUT 10V
E
Extron
PMP 6
Projector
Mount Pole
Extron
UPB 25
Universal Projector
Mounting Bracket
UTP Cable
(CAT 5/5E/6)

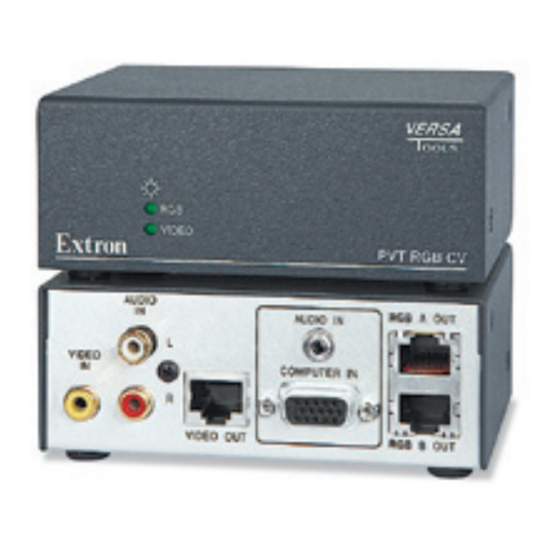

Extron
PVT RGB CV
VGA &
Composite Video
& Audio Input
AU
DIO
IN
VID PV
EO T RG
IN L B CV
AU DIO
R IN
RG
VID B A
EO CO MP OU
OU UT T
T ER IN
RG
B B
OU
T
DVD/VCR
Combo
Laptop
w/ Audio
Camera
USA East USA East
+1.919.863.1794 / +800.633.9876 +1.919.863.1794 / +800.633.9876
+1.919.863.1797 FAX +1.919.863.1797 FAX
Extron
PV SI 3C LP
Full-Range
Ceiling Speakers
- 1 Pair
TCP/IP
Network
Extron
PVS 204SA
PoleVault ® Switcher
RS-232
to Switcher
1
Y
LA 2
SP
DI
O N 3
RS-232
M E
4
LU
VO
to Projector
NF IG
CO
Pl us
4 IP
10
M LC
Extron
MLC 104 IP Plus
MediaLink Controller
AC
Line Level TIV
E
MU TE
MIC
IN
Audio
Extron
MLP 101 D
Mic to Line Preampli er
Option
AU
DI O
VI DE IN
O
IN
L
R
VI DE
O Extron
OU
T
PVT CV
Composite Video
& Audio Input
Option
Continued
