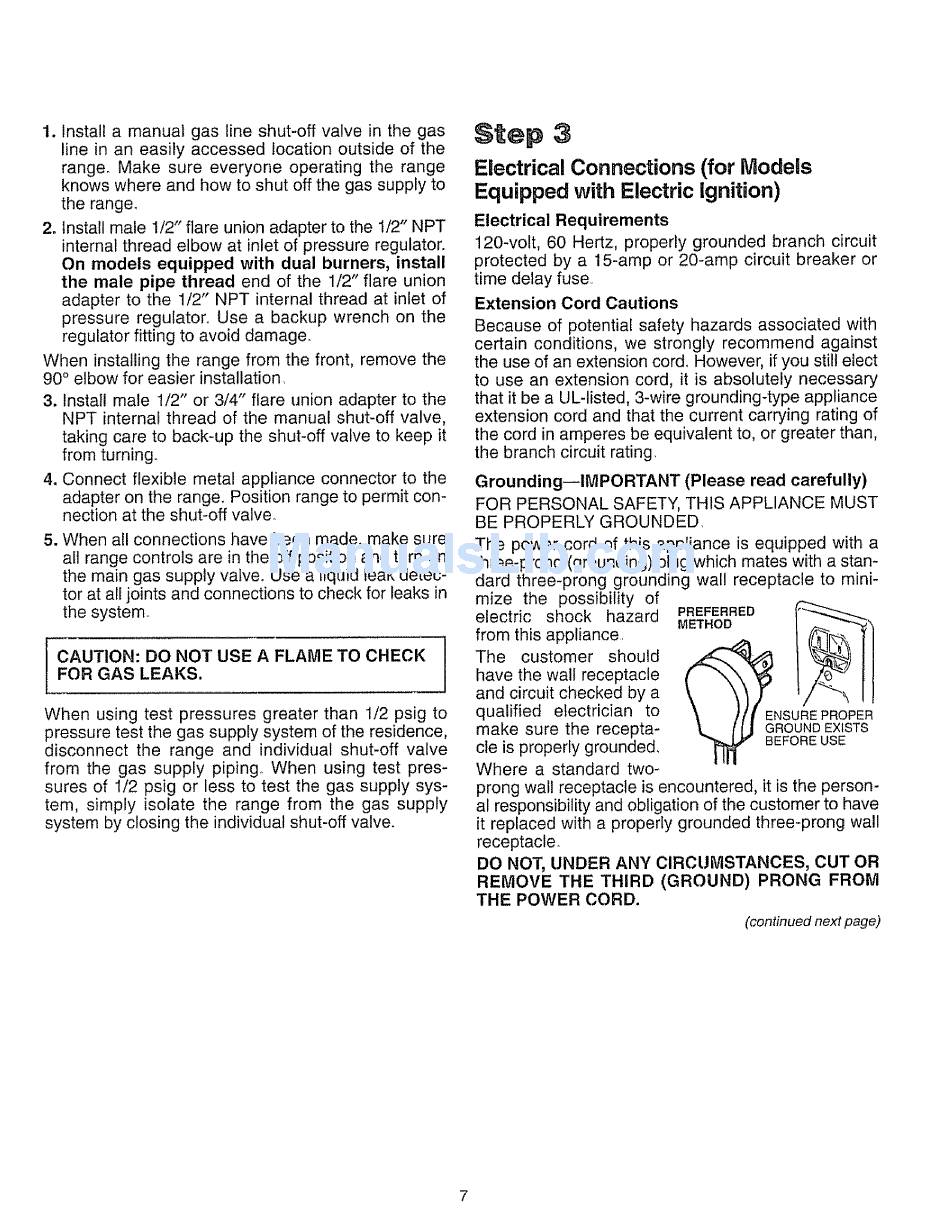

1. Installa manualgas line shut-offvalve in the gas
line in an easily accessedlocation outside of the
range. Make sure everyoneoperatingthe range
knowswhere andhowto shut off the gas supplyto
the range_
2. Installmale1/2"flare unionadapterto the 1/2"NPT
internalthreadelbow at inletof pressureregulator.
On models equipped with dual burners, install
the male pipe thread end of the 1/2" flare union
adapter to the 1/2" NPT internal thread at inlet of
pressure regulator, Use a backup wrench on the
regulator fitting to avoid damage.
When installing the range from the front, remove the
90 ° elbow for easier installation
3. Install male 1/2" or 3/4" flare union adapter to the
NPT internal thread of the manual shut-off valve,
taking care to back-up the shut-off valve to keep it
from turning.
4. Connect flexible metal appliance connector to the
adapter on the range° Position range to permit con-
nection at the shut-off valve.
5. When all connections have been made, make sure
all range controls are in the off position and turn on
the main gas supply valve° Use a liquid leak detec-
tor at all joints and connections to check for leaks in
the system.
CAUTION: DO NOT USE A FLAME TO CHECK I
i
FOR GAS LEAKS.
1
When using test pressures greater than 1/2 psig to
pressure test the gas supply system of the residence,
disconnect the range and individual shut-off valve
from the gas supply piping. When using test pres-
sures of i/2 psig or less to test the gas supply sys-
tem, simply isolate the range from the gas supply
system by closing the individual shut-off valve.
Step 3
Electrical Connections (for Models
Equipped with Electric ignition)
Electrical Requirements
120-volt, 60 Hertz, properly grounded branch circuit
protected by a 15-amp or 20-amp circuit breaker or
time delay fuse,,
Extension Cord Cautions
Because of potential safety hazards associated with
certain conditions, we strongly recommend against
the use of an extension cord° However, if you still elect
to use an extension cord, it is absolutely necessary
that it be a ULqisted, 3-wire grounding4ype appliance
extension cord and that the current carrying rating of
the cord in amperes be equivalent to, or greater than,
the branch circuit rating,
Grounding--IMPORTANT (Please read carefully)
FOR PERSONAL SAFETY, THIS APPLIANCE MUST
BE PROPERLY GROUNDED,
The power cord of this appliance is equipped with a
three-prong (grounding) plug which mates with a stan-
dard three-prong grounding wall receptacle to mini-
mize the possibility of
electric shock hazard
from this appliance
The customer should
have the wall receptacle
and circuit checked by a
qualified electrician to
make sure the recepta-
cle is properly grounded.
Where a standard two-
PREFERRED
METHOD =
prong wall receptacle is encountered, it is the person-
al responsibility and obligation of the customer to have
it replaced with a properly grounded three-prong wall
receptacle_
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR
REMOVE THE THIRD (GROUND) PRONG FROM
THE POWER CORD.
(continued next page)
